VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

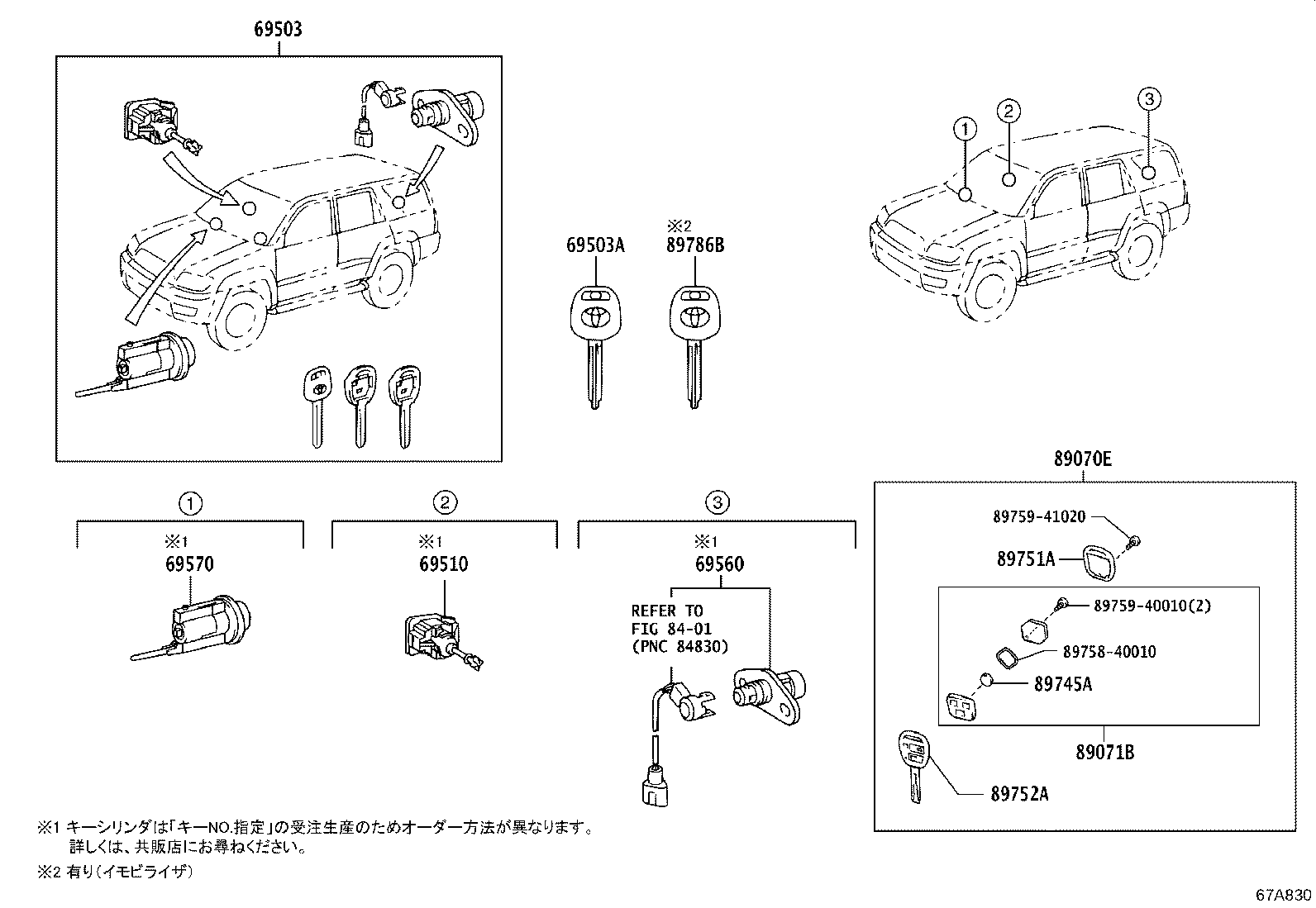

Click highlighted areas on diagram

diagram 69503 69503A 69510 69560 69570 8401 89070E 89071B 89745A 89751A 89752A 8975840010 8975940010 8975941020 89786B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-3D060

KDN215,RZN21#,VZN21#

盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ

 1
69005-3D060

KDN215,TRN21#,VZN21#

 1
69005-3D040

KDN215,RZN21#,VZN21#

 1
69503A - KEY, BLANK
00000-00000

KDN215,RZN21#,VZN21#

盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ

 1
90999-00251

KDN215,RZN21#,VZN21#

ﾏｽﾀｰｷｰ,*68付き

 1
00000-00000

KDN215,TRN21#,VZN21#

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-58010

KDN215,RZN21#,TRN21#,VZN21#

 1
69560 - CYLINDER ASSY, BACK DOOR LOCK
69560-35110

KDN215,RZN21#,VZN21#

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-60060

KDN215,RZN21#,TRN21#,VZN21#

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-35050

KDN215,TRN21#,VZN21#

 1
89070-35040

KDN215,RZN21#,VZN21#

 1
89070-35050

KDN215,RZN21#,VZN21#

盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-35031

KDN215,RZN21#,VZN21#

盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ

 1
89071-35031

KDN215,TRN21#,VZN21#

 1
89071-35030

KDN215,RZN21#,VZN21#

盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ

 1
89745A - BATTERY, TRANSMITTER
89745-40010

KDN215,RZN21#,TRN21#,VZN21#

 1
89751A - COVER, TRANSMITTER HOUSING
89751-50010

KDN215,RZN21#,TRN21#,VZN21#

 1
89752A - CASE, TRANSMITTER HOUSING
89752-60060

KDN215,RZN21#,TRN21#,VZN21#

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

KDN215,TRN21#,VZN21#

ﾌﾞﾗﾝｸｷｰ

 1
89786-60170

KDN215,RZN21#,VZN21#

ﾌﾞﾗﾝｸｷｰ,盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ

 1
Common parts
89758-40010
89759-40010
89759-41020
Linked diagrams
8401
