VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

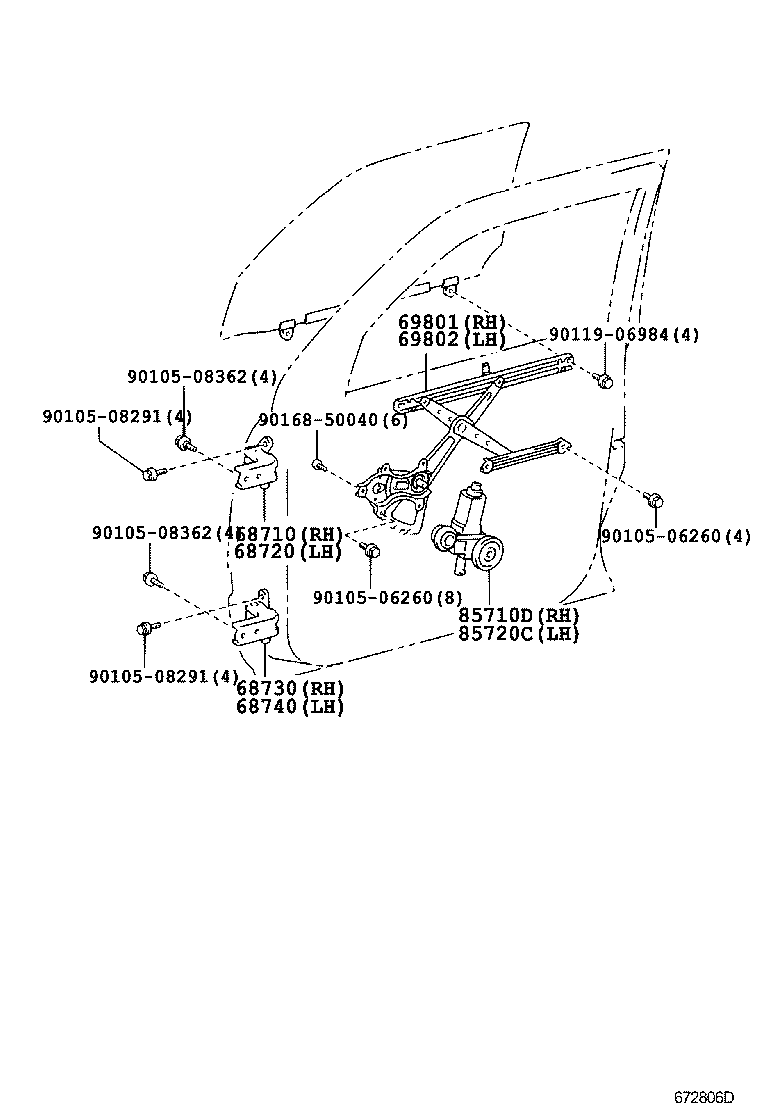

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69801 69802 85710D 85720C 9010506260 9010506260 9010508291 9010508291 9010508362 9010508362 9011906984 9016850040
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-35030

KDN215,TRN21#,VZN21#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-35030

KDN215,TRN21#,VZN21#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-35030

KDN215,TRN21#,VZN21#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-35030

KDN215,TRN21#,VZN21#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-58010

KDN215,TRN21#,VZN21#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-58010

KDN215,TRN21#,VZN21#

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-58010

KDN215,TRN21#,VZN21#

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-58010

KDN215,TRN21#,VZN21#

 1
Common parts
90105-06260
90105-08291
90105-08362
90119-06984
90168-50040
