VZN215W-GKPXK (2002)
Toyota Hilux Surf

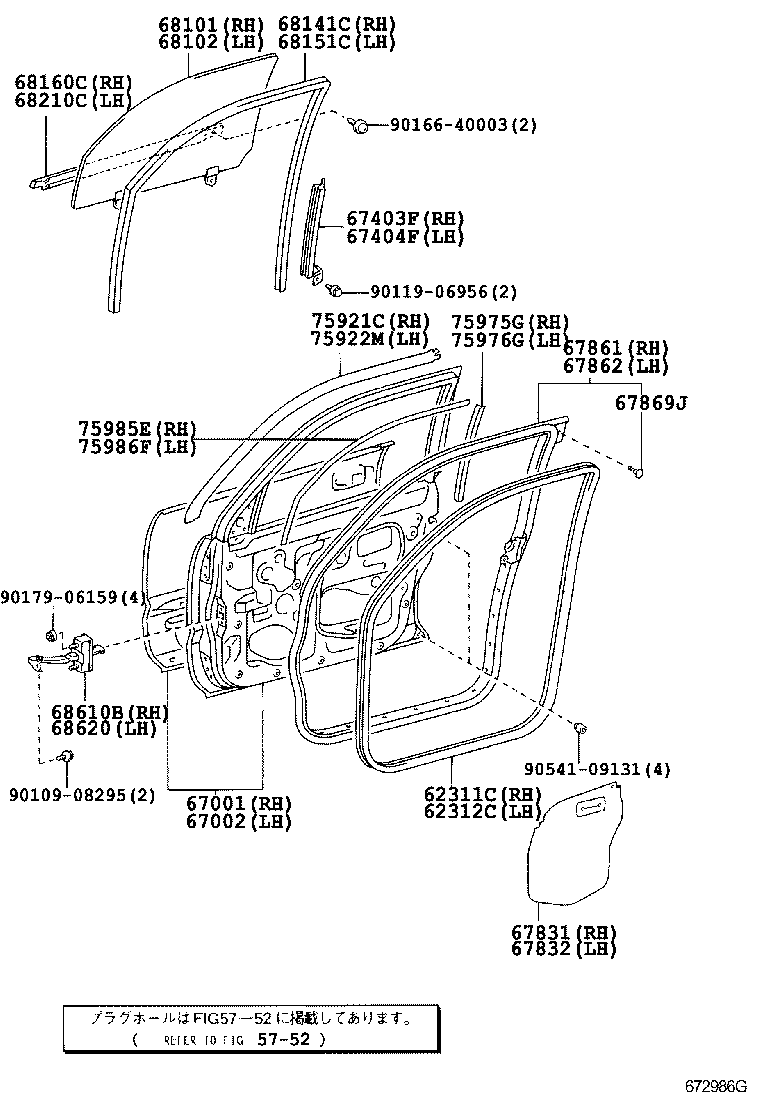

ILLUST NO. 1 OF 2(0211- )
ﾄﾞｱ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62311C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-35020B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 62311-35020E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 62312C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-35020B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 62312-35020E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-35500 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 67001-35501 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67001-35502 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-35520 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 67002-35521 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67002-35522 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-35060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-35060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-35160 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-35110 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-35090 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-35080 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-35010 |
KDN215,TRN21#,VZN21# |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-35200 |
KDN215,TRN21#,VZN21# *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-35200 |
KDN215,TRN21#,VZN21# *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-35090 |
KDN215,RZN21#,VZN21# |
1 | ||
| 68141-35091 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-35081 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68151-35080 |
KDN215,RZN21#,VZN21# |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-35060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-35060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-35040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-35020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-35540 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-35550 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75985E - STRIPE, FRONT DOOR OUTSIDE, RH | ||||
| 75985-3D320 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75986F - STRIPE, FRONT DOOR OUTSIDE, LH | ||||
| 75986-3D200 |
KDN215,TRN21#,VZN21# |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06956 | ||||
| 90166-40003 | ||||
| 90179-06159 | ||||
| 90541-09131 | ||||
| Linked diagrams | ||||
| 5752 | ||||

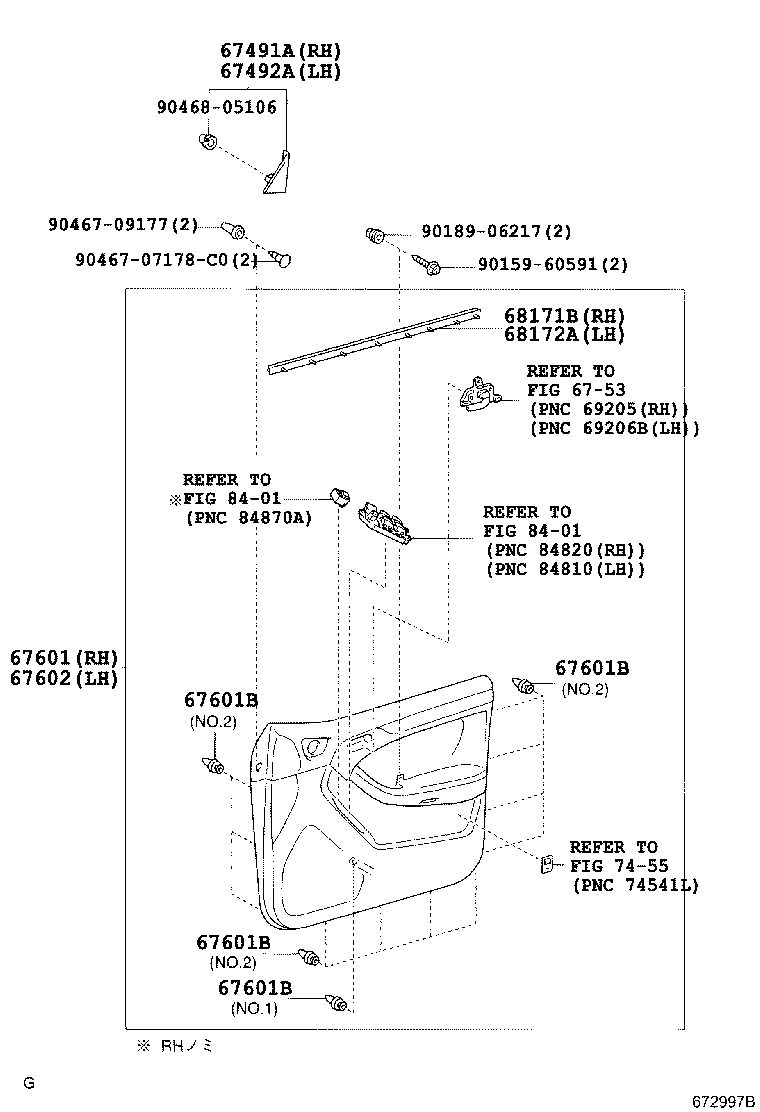

ILLUST NO. 2 OF 2(0211- )
ﾄﾞｱ ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-35040B0 |
TRN215,VZN215..SSRX DK.GRAY,TRIM12,13,4# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-35040B0 |
TRN215,VZN215..SSRX DK.GRAY,TRIM12,13,4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3D630B0 |
KDN215,RZN21#,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM1# |
1 | ||
| 67610-3D630B0 |
KDN215,RZN21#,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM1# |
1 | ||
| 67610-3D630B1 |
KDN215,RZN21#,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM4# |
1 | ||
| 67610-3D610B1 |
KDN215,RZN21#,TRN21#,VZN21#..SSRX DK.GRAY,TRIM4# |
1 | ||
| 67610-3D630B1 |
KDN215,RZN21#,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM4# |
1 | ||
| 67610-3D610B0 |
TRN215,VZN215..SSRX DK.GRAY,TRIM12,13 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09203 |
KDN215,RZN21#,TRN21#,VZN21# NO.1 |
2 | ||
| 90467-09206 |
KDN215,RZN21#,TRN21#,VZN21# NO.2 |
20 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09203 |
KDN215,RZN21#,TRN21#,VZN21# NO.1 |
2 | ||
| 90467-09206 |
KDN215,RZN21#,TRN21#,VZN21# NO.2 |
20 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09203 |
KDN215,RZN21#,TRN21#,VZN21# NO.1 |
2 | ||
| 90467-09206 |
KDN215,RZN21#,TRN21#,VZN21# NO.2 |
20 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09203 |
KDN215,RZN21#,TRN21#,VZN21# NO.1 |
2 | ||
| 90467-09206 |
KDN215,RZN21#,TRN21#,VZN21# NO.2 |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3D540B0 |
KDN215,RZN21#,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM1# |
1 | ||
| 67620-3D540B0 |
KDN215,RZN21#,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM1# |
1 | ||
| 67620-3D540B1 |
KDN215,RZN21#,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM4# |
1 | ||
| 67620-3D540B1 |
KDN215,RZN21#,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM4# |
1 | ||
| 67620-3D520B0 |
TRN215,VZN215..SSRX DK.GRAY,TRIM12,13 |
1 | ||
| 67620-3D520B1 |
KDN215,RZN21#,TRN21#,VZN21#..SSRX DK.GRAY,TRIM4# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-35130 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-35030 |
KDN215,TRN21#,VZN21# |
1 | ||
| Common parts | ||||
| 90159-60591 | ||||
| 90189-06217 | ||||
| 90467-07178C0 | ||||
| 90467-09177 | ||||
| 90468-05106 | ||||
| Linked diagrams | ||||
| 6753 | ||||
| 7455 | ||||
| 8401 | ||||
