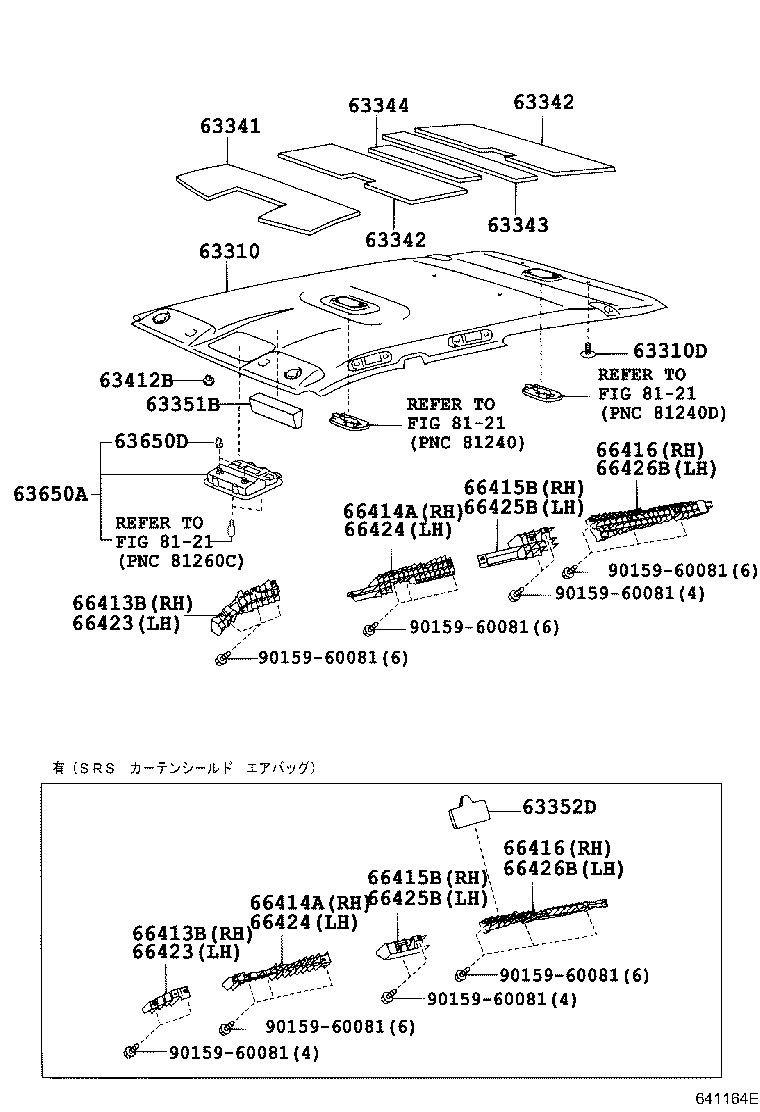

VZN215W-GKPXK (2002)
Toyota Hilux Surf
(0211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63321-35010B0 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,STONE,TRIM1# |
1 | ||
| 63311-35250E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 63311-35250B0 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 63321-35060B0 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,STONE,TRIM1# |
1 | ||
| 63321-35061B0 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,STONE,TRIM1# |
1 | ||
| 63311-35300E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 63311-35301E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 63321-35060E0 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 63311-35300B0 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 63311-35301B0 |
KDN215,RZN21#,TRN21#,VZN21# STONE,TRIM1# |
1 | ||
| 63321-35061E0 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 63321-35010E0 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164E1 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
4 | ||
| 90467-05164B1 |
VZN215..SSRX STONE,TRIM1# |
4 | ||
| 90467-05164B1 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-35130 |
KDN215,TRN21#,VZN21# |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-35010 |
KDN215,TRN21#,VZN21# |
2 | ||
| 63342-35010 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-35010 |
KDN215,TRN21#,VZN21# |
2 | ||
| 63342-35010 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63342-35040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63342-35050 |
KDN215,TRN21#,VZN21# |
1 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-35030 |
KDN215,TRN21#,VZN21# |
1 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-35010 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
2 | ||
| 63412B - RETAINER, ROOF CONSOLE | ||||
| 63412-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63670-0W010B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 63670-0W020E0 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 63670-0W010E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 63670-0W020B0 |
TRN215,VZN215..SSRX ﾑｰﾝﾙｰﾌ有り,STONE,TRIM12,13 |
1 | ||
| 63650D - CLIP(FOR ROOF CONSOLE BOX) | ||||
| 90468-05125 |
KDN215,RZN21#,TRN21#,VZN21# |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66413-35020 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66413-35020 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66414-35020 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66414-35020 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 66415-35020 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66415-35060 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66415-35050 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 66415-35020 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66415-35060 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66415-35050 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-35020 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66416-35020 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416-35050 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416-35050 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-35020 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66416-35020 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416-35050 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416-35050 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-35020 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66423-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-35020 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66423-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-35020 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66424-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-35020 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66424-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 66425-35060 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66425-35050 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66425-35020 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 66425-35060 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66425-35050 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66425-35020 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-35050 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426-35020 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426-35020 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66426-35050 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-35050 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426-35020 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426-35020 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66426-35050 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| Linked diagrams | ||||
| 8121 | ||||

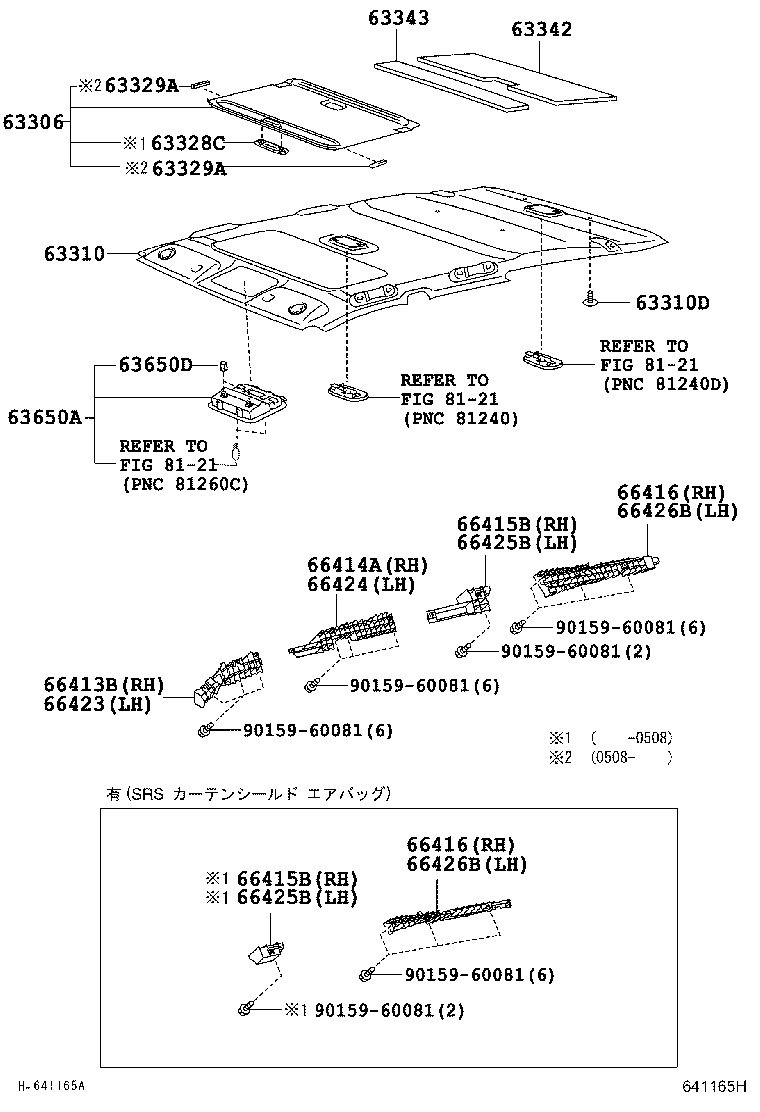

(0211- )
ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-35060B0 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,STONE,TRIM1# |
1 | ||
| 63306-35060E0 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 63306-35061E1 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 63306-35061B1 |
TRN215,VZN215..SSRX ﾑｰﾝﾙｰﾌ有り,STONE,TRIM12,13 |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63321-35010B0 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,STONE,TRIM1# |
1 | ||
| 63311-35250E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 63311-35250B0 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 63321-35060B0 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,STONE,TRIM1# |
1 | ||
| 63321-35061B0 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,STONE,TRIM1# |
1 | ||
| 63311-35300E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 63311-35301E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 63321-35060E0 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 63311-35300B0 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 63311-35301B0 |
KDN215,RZN21#,TRN21#,VZN21# STONE,TRIM1# |
1 | ||
| 63321-35061E0 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 63321-35010E0 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164E1 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
4 | ||
| 90467-05164B1 |
VZN215..SSRX STONE,TRIM1# |
4 | ||
| 90467-05164B1 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
4 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B9 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,STONE,TRIM1# |
1 | ||
| 63328-12030B9 |
TRN215,VZN215..SSRX ﾑｰﾝﾙｰﾌ有り,STONE,TRIM12,13 |
1 | ||
| 63328-12030E1 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 63328-12030E1 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-35010 |
KDN215,TRN21#,VZN21# |
2 | ||
| 63342-35010 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63342-35040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63670-0W010B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 63670-0W020E0 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 63670-0W010E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 63670-0W020B0 |
TRN215,VZN215..SSRX ﾑｰﾝﾙｰﾌ有り,STONE,TRIM12,13 |
1 | ||
| 63650D - CLIP(FOR ROOF CONSOLE BOX) | ||||
| 90468-05125 |
KDN215,RZN21#,TRN21#,VZN21# |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66413-35020 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66414-35020 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 66415-35020 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66415-35060 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66415-35050 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 66415-35020 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66415-35060 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66415-35050 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-35020 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66416-35020 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416-35050 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416-35050 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-35020 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66416-35020 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416-35050 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66416-35050 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-35020 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66423-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-35020 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66424-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 66425-35060 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66425-35050 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66425-35020 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 66425-35060 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66425-35050 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66425-35020 |
KDN215,RZN21#,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-35050 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426-35020 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426-35020 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66426-35050 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-35050 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426-35020 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426-35020 |
KDN215,RZN21#,VZN21# ﾑｰﾝﾙｰﾌ有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 66426-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 66426-35050 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
