VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

Click highlighted areas on diagram

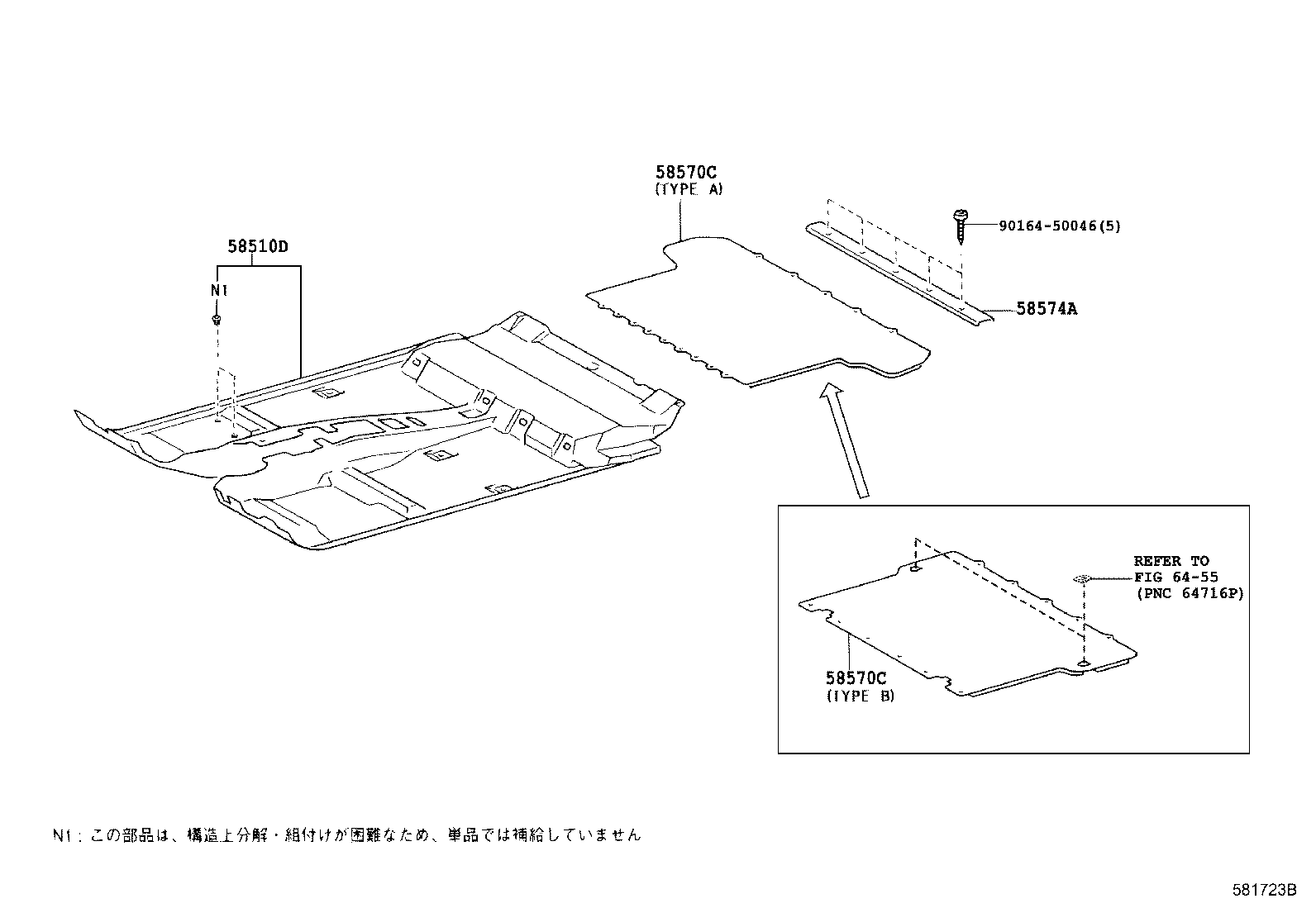

diagram 58510D 58570C 58570C 58574A 6455 9016450046
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58500-35020E0

KDN215,TRN21#,VZN21#

FAWN,TRIM4#

 1
58500-35020B0

TRN215,VZN215..SSRX

STONE,TRIM12,13

 1
58570C - CARPET ASSY, REAR FLOOR
58570-35110E0

KDN215,RZN21#,TRN21#,VZN21#..SSRX

ﾄﾗﾝｸ & ﾃﾞｯｷ ｶｰﾍﾟｯﾄ & ﾏｯﾄ−ﾀﾞﾌﾞﾙ ﾃﾞｯｷ,FAWN,TRIM4#,TYPE@B:ｲﾗｽﾄ参照

 1
58570-35110B0

TRN215,VZN215..SSRX

ﾄﾗﾝｸ & ﾃﾞｯｷ ｶｰﾍﾟｯﾄ & ﾏｯﾄ−ﾀﾞﾌﾞﾙ ﾃﾞｯｷ,STONE,TRIM12,13,TYoE B:ｲﾗｽﾄ参照

 1
58570-35100E0

KDN215,RZN21#,TRN21#,VZN21#..SSRX

FAWN,TRIM4#,TYPE A:ｲﾗｽﾄ参照

 1
58570-35100B0

KDN215,RZN21#,TRN21#,VZN21#..SSRX

STONE,TRIM1#,TYPE A:ｲﾗｽﾄ参照

 1
58570C - CARPET ASSY, REAR FLOOR
58570-35110E0

KDN215,RZN21#,TRN21#,VZN21#..SSRX

ﾄﾗﾝｸ & ﾃﾞｯｷ ｶｰﾍﾟｯﾄ & ﾏｯﾄ−ﾀﾞﾌﾞﾙ ﾃﾞｯｷ,FAWN,TRIM4#,TYPE@B:ｲﾗｽﾄ参照

 1
58570-35110B0

TRN215,VZN215..SSRX

ﾄﾗﾝｸ & ﾃﾞｯｷ ｶｰﾍﾟｯﾄ & ﾏｯﾄ−ﾀﾞﾌﾞﾙ ﾃﾞｯｷ,STONE,TRIM12,13,TYoE B:ｲﾗｽﾄ参照

 1
58570-35100E0

KDN215,RZN21#,TRN21#,VZN21#..SSRX

FAWN,TRIM4#,TYPE A:ｲﾗｽﾄ参照

 1
58570-35100B0

KDN215,RZN21#,TRN21#,VZN21#..SSRX

STONE,TRIM1#,TYPE A:ｲﾗｽﾄ参照

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-35010B0

TRN215,VZN215..SSRX

STONE,TRIM12,13

 1
58574-35010E0

KDN215,TRN21#,VZN21#

FAWN,TRIM4#

 1
Common parts
90164-50046
Linked diagrams
6455
