VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

Click highlighted areas on diagram

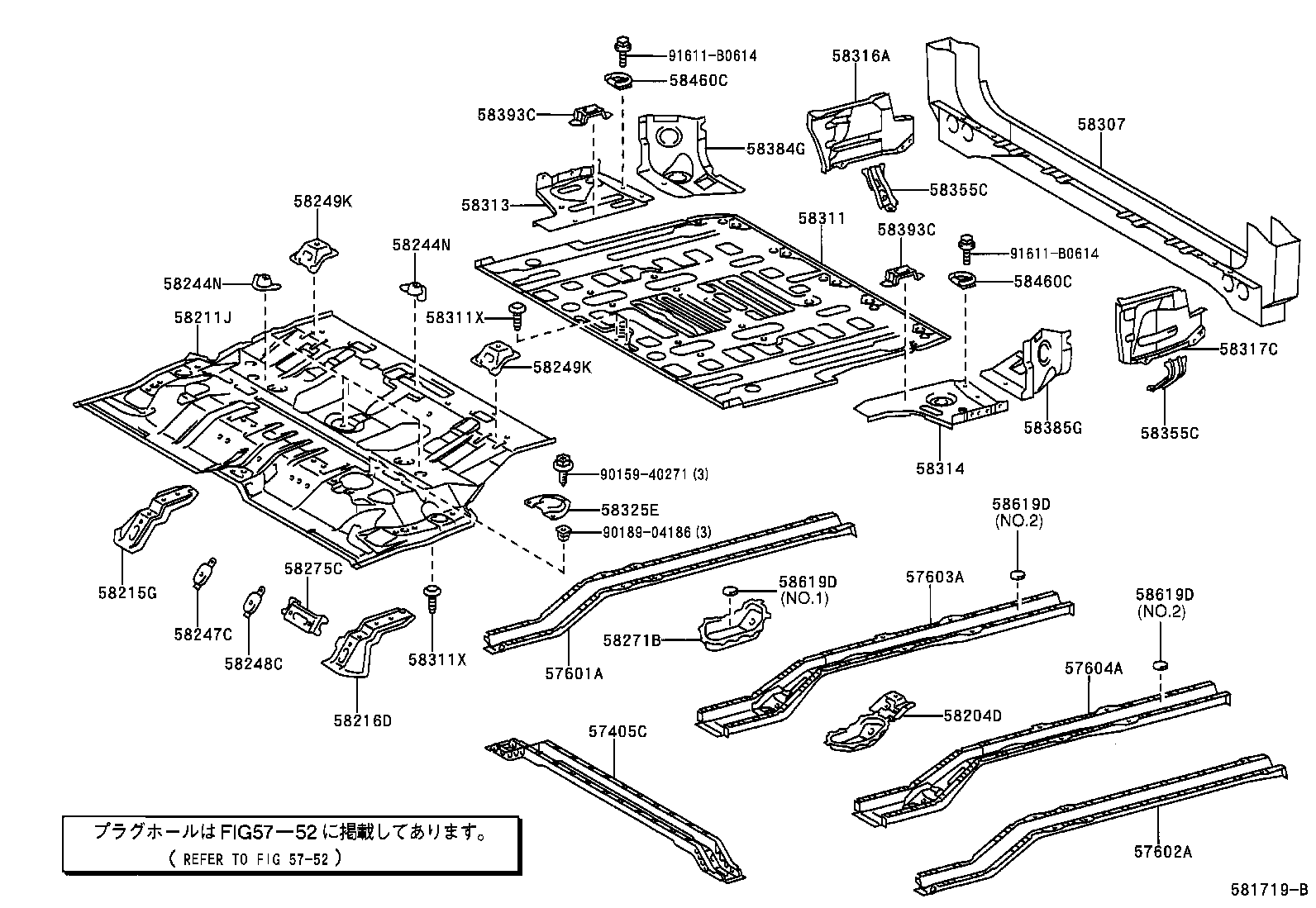

diagram 57405C 5752 57601A 57602A 57603A 57604A 58204D 58211J 58215G 58216D 58244N 58244N 58247C 58248C 58249K 58249K 58271B 58275C 58307 58311 58311X 58311X 58313 58314 58316A 58317C 58325E 58355C 58355C 58384G 58385G 58393C 58393C 58460C 58460C 58619D 58619D 58619D 9015940271 9018904186 91611B0614 91611B0614
Part # Description Qty Price
57405C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57405-35010

KDN215,TRN21#,VZN21#

 1
57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-35020

KDN215,TRN21#,VZN21#..SSRX

ﾄﾗﾝｸ & ﾃﾞｯｷ ｶｰﾍﾟｯﾄ & ﾏｯﾄ−ﾀﾞﾌﾞﾙ ﾃﾞｯｷ

 1
57601-35010

KDN215,TRN21#,VZN21#..SSRX

 1
57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57601-35010

KDN215,TRN21#,VZN21#..SSRX

 1
57601-35020

KDN215,TRN21#,VZN21#..SSRX

ﾄﾗﾝｸ & ﾃﾞｯｷ ｶｰﾍﾟｯﾄ & ﾏｯﾄ−ﾀﾞﾌﾞﾙ ﾃﾞｯｷ

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-35010

KDN215,TRN21#,VZN21#

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-35010

KDN215,TRN21#,VZN21#

 1
58204D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH
58204-35050

KDN215,TRN21#,VZN21#

 1
58204-35051

KDN215,TRN21#,VZN21#

 1
58211J - PAN, CENTER FLOOR
58211-35020

KDN215,TRN21#,VZN21#..SSRX

 1
58211-35030

KDN215,TRN21#,VZN21#..SSRX

ﾄﾗﾝｸ & ﾃﾞｯｷ ｶｰﾍﾟｯﾄ & ﾏｯﾄ−ﾀﾞﾌﾞﾙ ﾃﾞｯｷ

 1
58215G - BRACKET, REAR SEAT MOUNTING, NO.1
58215-35020

KDN215,TRN21#,VZN21#

 1
58216D - BRACKET, REAR SEAT MOUNTING, LH
58216-35020

KDN215,TRN21#,VZN21#

 1
58244N - STOPPER, REAR SEAT CUSHION BRACKET
58244-35010

KDN215,TRN21#,VZN21#

 4
58244N - STOPPER, REAR SEAT CUSHION BRACKET
58244-35010

KDN215,TRN21#,VZN21#

 4
58247C - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58247-35030

KDN215,TRN21#,VZN21#

 1
58248C - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58247-35030

KDN215,TRN21#,VZN21#

 1
58249K - BRACKET, CENTER FLOOR BOARD SUPPORT
58249-35030

KDN215,TRN21#,VZN21#

 2
58249K - BRACKET, CENTER FLOOR BOARD SUPPORT
58249-35030

KDN215,TRN21#,VZN21#

 2
58271B - PLATE, FLOOR SIDE, REAR, RH
58271-35010

KDN215,TRN21#,VZN21#

 1
58275C - BRACKET, WIRE HARNESS PROTECTOR
58275-35020

KDN215,TRN21#,VZN21#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-35010

KDN215,RZN21#,VZN21#

 1
58307-35011

KDN215,TRN21#,VZN21#

 1
58311 - PAN, REAR FLOOR
58311-35080

KDN215,RZN21#,VZN21#

 1
58311-35081

KDN215,TRN21#,VZN21#

 1
58311X - BOLT, REAR FLOOR WELD
90115-06166

KDN215,TRN21#,VZN21#

 1
58311X - BOLT, REAR FLOOR WELD
90115-06166

KDN215,TRN21#,VZN21#

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-35080

KDN215,TRN21#,VZN21#

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-35040

KDN215,TRN21#,VZN21#

 1
58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58316-35040

KDN215,TRN21#,VZN21#

 1
58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58317-35030

KDN215,TRN21#,VZN21#

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-35010

KDN215,TRN21#,VZN21#

 1
58355C - BRACKET, REAR BUMPER ARM
58355-35020

KDN215,TRN21#,VZN21#

 2
58355C - BRACKET, REAR BUMPER ARM
58355-35020

KDN215,TRN21#,VZN21#

 2
58384G - GUSSET, LOWER BACK, UPPER RH
58384-35011

KDN215,TRN21#,VZN21#

 1
58384-35010

KDN215,RZN21#,VZN21#

 1
58385G - GUSSET, LOWER BACK, UPPER LH
58385-35011

KDN215,TRN21#,VZN21#

 1
58385-35010

KDN215,RZN21#,VZN21#

 1
58393C - SUPPORT, DECK BOARD SET
58393-35010

KDN215,TRN21#,VZN21#..SSRX

ﾄﾗﾝｸ & ﾃﾞｯｷ ｶｰﾍﾟｯﾄ & ﾏｯﾄ−ﾀﾞﾌﾞﾙ ﾃﾞｯｷ

 2
58393C - SUPPORT, DECK BOARD SET
58393-35010

KDN215,TRN21#,VZN21#..SSRX

ﾄﾗﾝｸ & ﾃﾞｯｷ ｶｰﾍﾟｯﾄ & ﾏｯﾄ−ﾀﾞﾌﾞﾙ ﾃﾞｯｷ

 2
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-35012

KDN215,TRN21#,VZN21#..SSRX

 2
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-35012

KDN215,TRN21#,VZN21#..SSRX

 2
58619D - SHEET, CENTER FLOOR SILENCER SUB
58619-60010

KDN215,TRN21#,VZN21#

NO.2

 4
58619-35010

KDN215,TRN21#,VZN21#

NO.1

 2
58619D - SHEET, CENTER FLOOR SILENCER SUB
58619-60010

KDN215,TRN21#,VZN21#

NO.2

 4
58619-35010

KDN215,TRN21#,VZN21#

NO.1

 2
58619D - SHEET, CENTER FLOOR SILENCER SUB
58619-60010

KDN215,TRN21#,VZN21#

NO.2

 4
58619-35010

KDN215,TRN21#,VZN21#

NO.1

 2
Common parts
90159-40271
90189-04186
91611-B0614
Linked diagrams
5752
