VZN215W-GKPXK (2002)
Toyota Hilux Surf

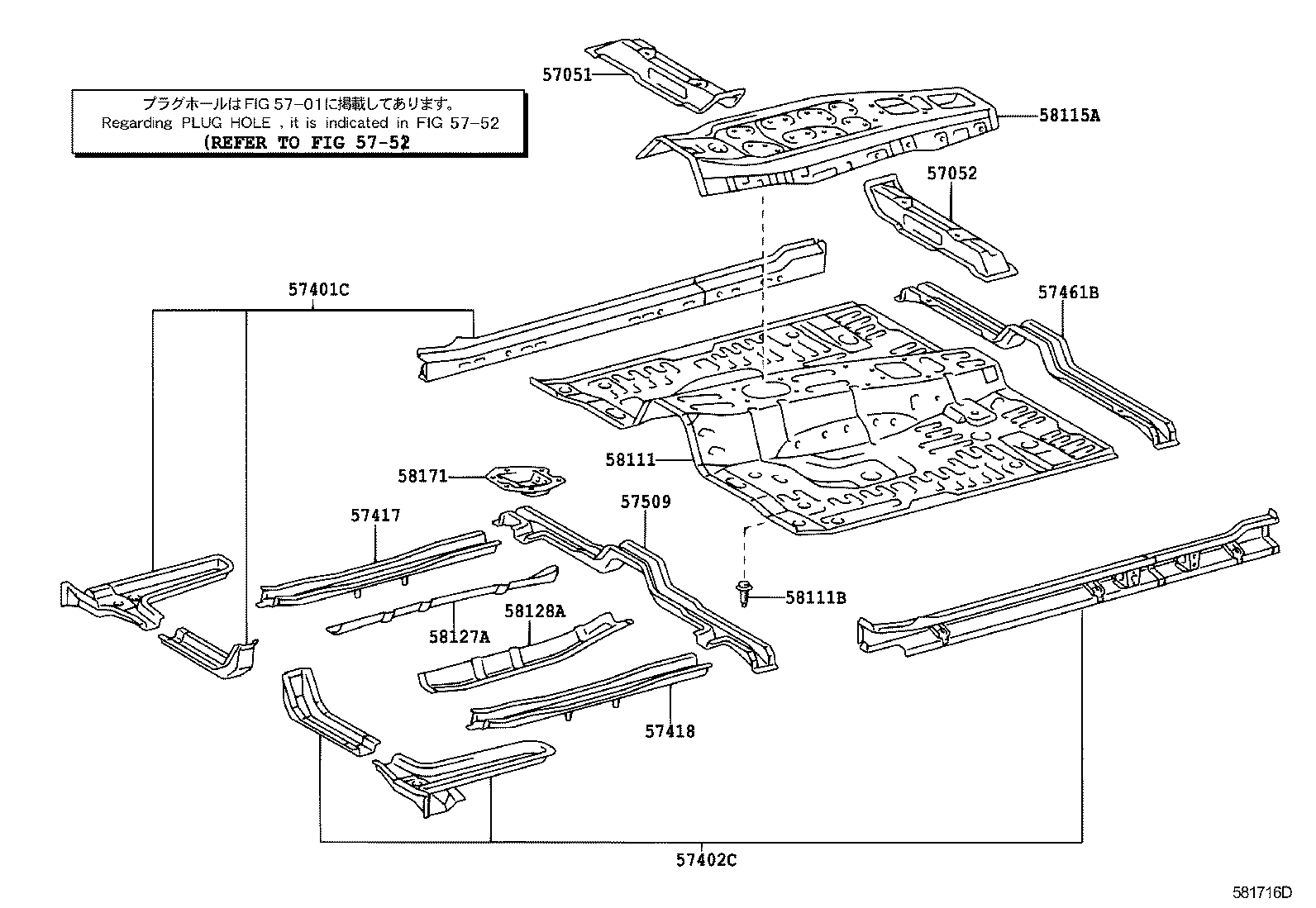

ILLUST NO. 1 OF 2(0211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-35050 |
KDN215,TRN21#,VZN21# |
1 | ||
| 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-35050 |
KDN215,TRN21#,VZN21# |
1 | ||
| 57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-35905 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 57402C - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-35906 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-35050 |
KDN215,TRN21#,VZN21# |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-35060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57461-35020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-35421 |
KDN215,TRN21#,VZN21# |
1 | ||
| 58111-35420 |
KDN215,TRN21#,VZN21# |
1 | ||
| 58111B - BOLT, WELD(FOR FRONT FLOOR PAN) | ||||
| 90115-06166 |
KDN215,TRN21#,VZN21# |
1 | ||
| 58115A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58115-35011 |
KDN215,TRN21#,VZN21# |
1 | ||
| 58115-35010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 58127A - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH | ||||
| 58127-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 58128A - REINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH | ||||
| 58128-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-35030 |
KDN215,TRN21#,VZN21# |
1 | ||
| Linked diagrams | ||||
| 5752 | ||||

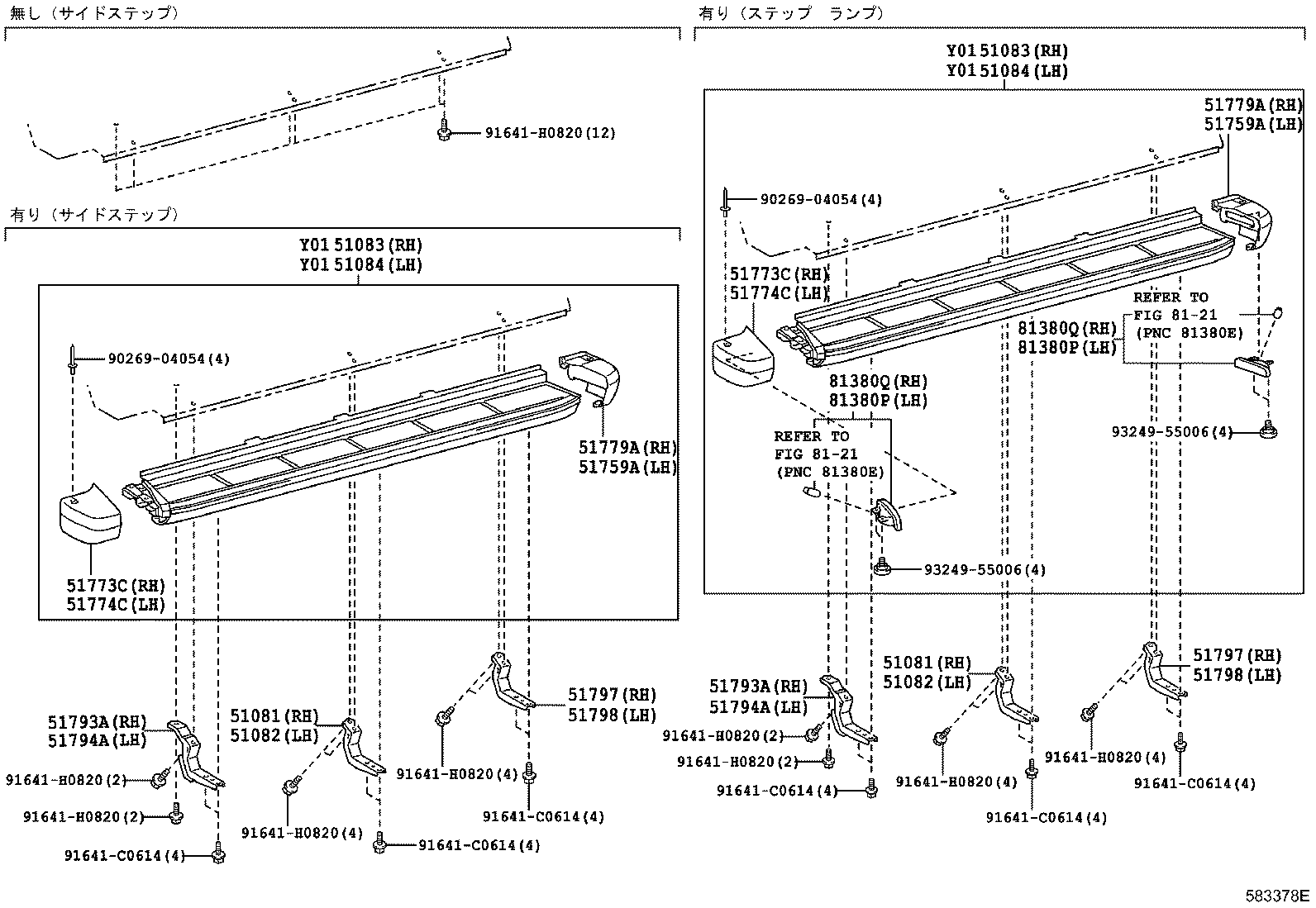

ILLUST NO. 2 OF 2(0211- )
ｻｲﾄﾞ ｽﾃﾂﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51081 - STAY SUB-ASSY, SIDE STEP, NO.1 RH | ||||
| 51081-35060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51081 - STAY SUB-ASSY, SIDE STEP, NO.1 RH | ||||
| 51081-35060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51082 - STAY SUB-ASSY, SIDE STEP, NO.1 LH | ||||
| 51082-35060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51082 - STAY SUB-ASSY, SIDE STEP, NO.1 LH | ||||
| 51082-35060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51083 - STEP SUB-ASSY, RH | ||||
| 51083-35160 |
KDN215,RZN21#,VZN21# ｼﾙﾊﾞｰ塗装 |
1 | ||
| 51083-35180 |
KDN215,TRN21#,VZN21# 材料着色(黒) |
1 | ||
| 51083 - STEP SUB-ASSY, RH | ||||
| 51083-35160 |
KDN215,RZN21#,VZN21# ｼﾙﾊﾞｰ塗装 |
1 | ||
| 51083-35180 |
KDN215,TRN21#,VZN21# 材料着色(黒) |
1 | ||
| 51084 - STEP SUB-ASSY, LH | ||||
| 51084-35170 |
KDN215,TRN21#,VZN21# 材料着色(黒) |
1 | ||
| 51084-35150 |
KDN215,RZN21#,VZN21# ｼﾙﾊﾞｰ塗装 |
1 | ||
| 51084 - STEP SUB-ASSY, LH | ||||
| 51084-35170 |
KDN215,TRN21#,VZN21# 材料着色(黒) |
1 | ||
| 51084-35150 |
KDN215,RZN21#,VZN21# ｼﾙﾊﾞｰ塗装 |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-35070 |
KDN215,RZN21#,VZN21# |
1 | ||
| 51759-35090 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-35070 |
KDN215,RZN21#,VZN21# |
1 | ||
| 51759-35090 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-35080 |
KDN215,TRN21#,VZN21# 塗装不要 |
1 | ||
| 51773-35060 |
KDN215,RZN21#,VZN21# 塗装不要 |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-35080 |
KDN215,TRN21#,VZN21# 塗装不要 |
1 | ||
| 51773-35060 |
KDN215,RZN21#,VZN21# 塗装不要 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-35080 |
KDN215,TRN21#,VZN21# 塗装不要 |
1 | ||
| 51774-35060 |
KDN215,RZN21#,VZN21# 塗装不要 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-35080 |
KDN215,TRN21#,VZN21# 塗装不要 |
1 | ||
| 51774-35060 |
KDN215,RZN21#,VZN21# 塗装不要 |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-35100 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51779-35080 |
KDN215,RZN21#,VZN21# |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-35100 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51779-35080 |
KDN215,RZN21#,VZN21# |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51085-60010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51085-60010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51794A - BRACKET, SIDE STEP, NO.1 LH | ||||
| 51085-60010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51794A - BRACKET, SIDE STEP, NO.1 LH | ||||
| 51085-60010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51797 - BRACKET, SIDE STEP, NO.3 RH | ||||
| 51797-60080 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51797 - BRACKET, SIDE STEP, NO.3 RH | ||||
| 51797-60080 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51798 - BRACKET, SIDE STEP, NO.3 LH | ||||
| 51797-60080 |
KDN215,TRN21#,VZN21# |
1 | ||
| 51798 - BRACKET, SIDE STEP, NO.3 LH | ||||
| 51797-60080 |
KDN215,TRN21#,VZN21# |
1 | ||
| 81380P - LAMP ASSY, STEP | ||||
| 81780-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾘﾔ |
1 | ||
| 81380-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾌﾛﾝﾄ |
1 | ||
| 81380P - LAMP ASSY, STEP | ||||
| 81780-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾘﾔ |
1 | ||
| 81380-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾌﾛﾝﾄ |
1 | ||
| 81380Q - LAMP ASSY, STEP | ||||
| 81380-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾘﾔ |
1 | ||
| 81780-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾌﾛﾝﾄ |
1 | ||
| 81380Q - LAMP ASSY, STEP | ||||
| 81380-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾘﾔ |
1 | ||
| 81780-35010 |
KDN215,RZN21#,TRN21#,VZN21# ﾌﾛﾝﾄ |
1 | ||
| Common parts | ||||
| 90269-04054 | ||||
| 91641-C0614 | ||||
| 91641-H0820 | ||||
| 93249-55006 | ||||
| Linked diagrams | ||||
| 8121 | ||||
