VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

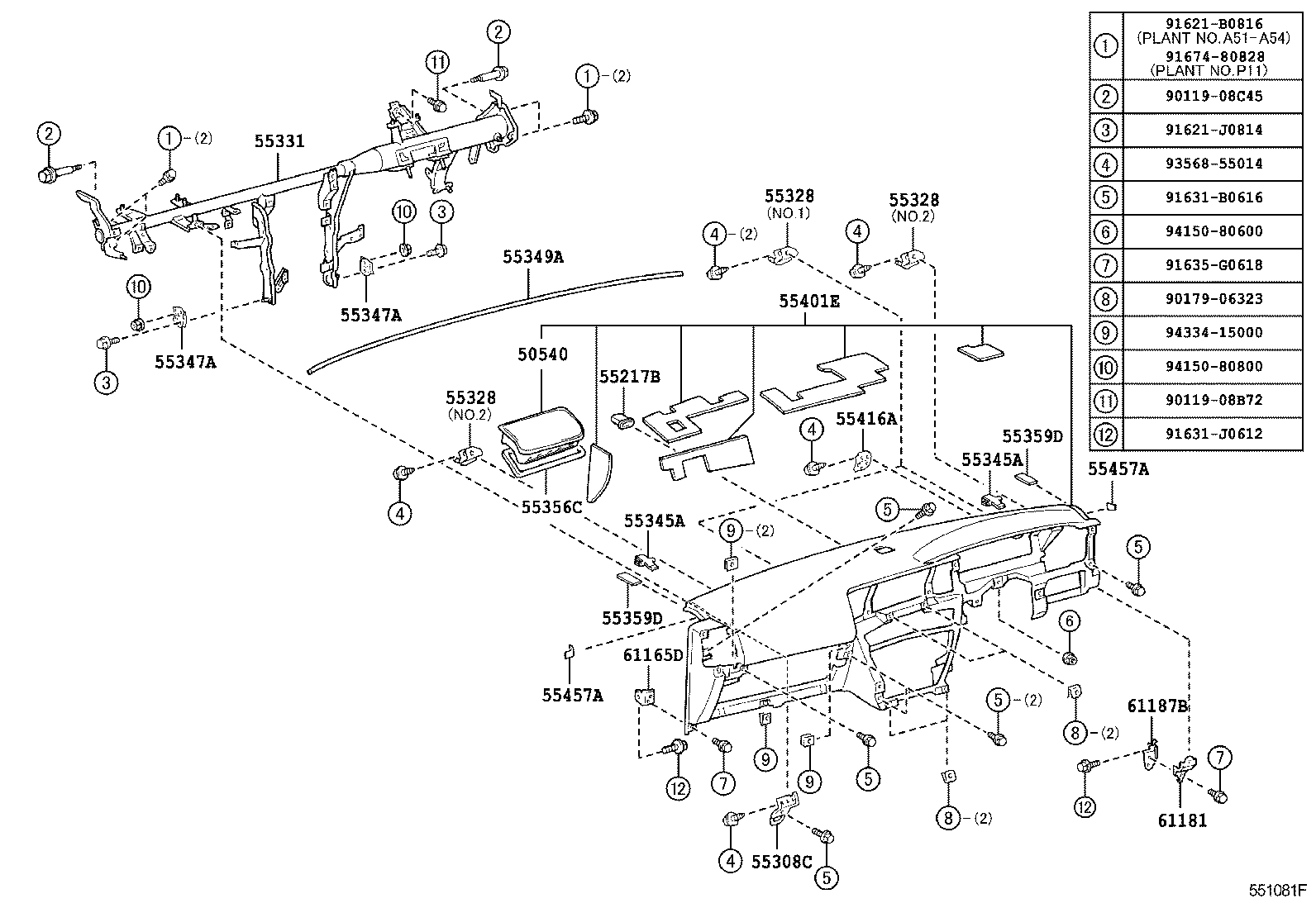

ILLUST NO. 1 OF 2(0211- )

Click highlighted areas on diagram

diagram 50540 55217B 55308C 55328 55328 55328 55331 55345A 55345A 55347A 55347A 55349A 55356C 55359D 55359D 55401E 55416A 55457A 55457A 61165D 61181 61187B 9011908B72 9011908C45 9017906323 91621B0816 91621J0814 91631B0616 91631J0612 91635G0618 9167480828 9356855014 9415080600 9415080800 9433415000
Part # Description Qty Price
50540 - DO0R ASSY, AIR BAG PASSENGER
50540-35060

KDN215,RZN21#,TRN21#,VZN21#

 1
55217B - RETAINER, DASH PANEL SILENCER
55217-35020

KDN215,RZN21#,TRN21#,VZN21#

 5
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-35040

KDN215,TRN21#,VZN21#

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-35030

KDN215,RZN21#,TRN21#,VZN21#

NO.1

 2
55328-35050

KDN215,RZN21#,TRN21#,VZN21#

NO.2

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-35030

KDN215,RZN21#,TRN21#,VZN21#

NO.1

 2
55328-35050

KDN215,RZN21#,TRN21#,VZN21#

NO.2

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-35030

KDN215,RZN21#,TRN21#,VZN21#

NO.1

 2
55328-35050

KDN215,RZN21#,TRN21#,VZN21#

NO.2

 2
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-35150

KDN215,TRN21#,VZN21#

 1
55345A - CLIP, INSTRUMENT PANEL, NO.1
55345-35020

KDN215,RZN21#,VZN21#

 2
55345A - CLIP, INSTRUMENT PANEL, NO.1
55345-35020

KDN215,RZN21#,VZN21#

 2
55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55347-35050

KDN215,TRN21#,VZN21#

 2
55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55347-35050

KDN215,TRN21#,VZN21#

 2
55349A - CUSHION, INSTRUMENT PANEL
55349-35050

KDN215,RZN21#,TRN21#,VZN21#

 1
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-35030

KDN215,RZN21#,TRN21#,VZN21#

 1
55359D - CUSHION, INSTRUMENT PANEL, NO.5
55359-35020

KDN215,RZN21#,TRN21#,VZN21#

 2
55359D - CUSHION, INSTRUMENT PANEL, NO.5
55359-35020

KDN215,RZN21#,TRN21#,VZN21#

 2
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-35911B1

RZN215;KDN215,RZN210,VZN21#..SSRX

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),FAWN,TRIM4#

 1
55401-35911B0

RZN215;KDN215,RZN210,VZN21#..SSRX

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),STONE,TRIM1#

 1
55401-35911B0

RZN215;KDN215,RZN210,VZN21#..SSRX

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),STONE,TRIM1#

 1
55401-35910B0

TRN215,VZN215..SSRX

STONE,TRIM12,13

 1
55401-35911B1

RZN215;KDN215,RZN210,VZN21#..SSRX

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),FAWN,TRIM4#

 1
55401-35910B1

KDN215,TRN21#,VZN21#

FAWN,TRIM4#

 1
55416A - RETAINER, METER HOOD, NO.1
55416-35010

KDN215,TRN21#,VZN21#

 1
55457A - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-35010

KDN215,RZN21#,TRN21#,VZN21#

 2
55457A - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-35010

KDN215,RZN21#,TRN21#,VZN21#

 2
61165D - BRACKET, INSTRUMENT PANEL TO COWL SIDE
61165-35030

KDN215,RZN21#,TRN21#,VZN21#

 1
61181 - BRACKET, INSTRUMENT PANEL SIDE
61181-35040

KDN215,RZN21#,TRN21#,VZN21#

 1
61187B - BRACKET, INSTRUMENT PANEL SIDE, NO.4
61187-35020

KDN215,RZN21#,TRN21#,VZN21#

 1
Common parts
90119-08B72
90119-08C45
90179-06323
91621-B0816
91621-J0814
91631-B0616
91631-J0612
91635-G0618
91674-80828
93568-55014
94150-80600
94150-80800
94334-15000

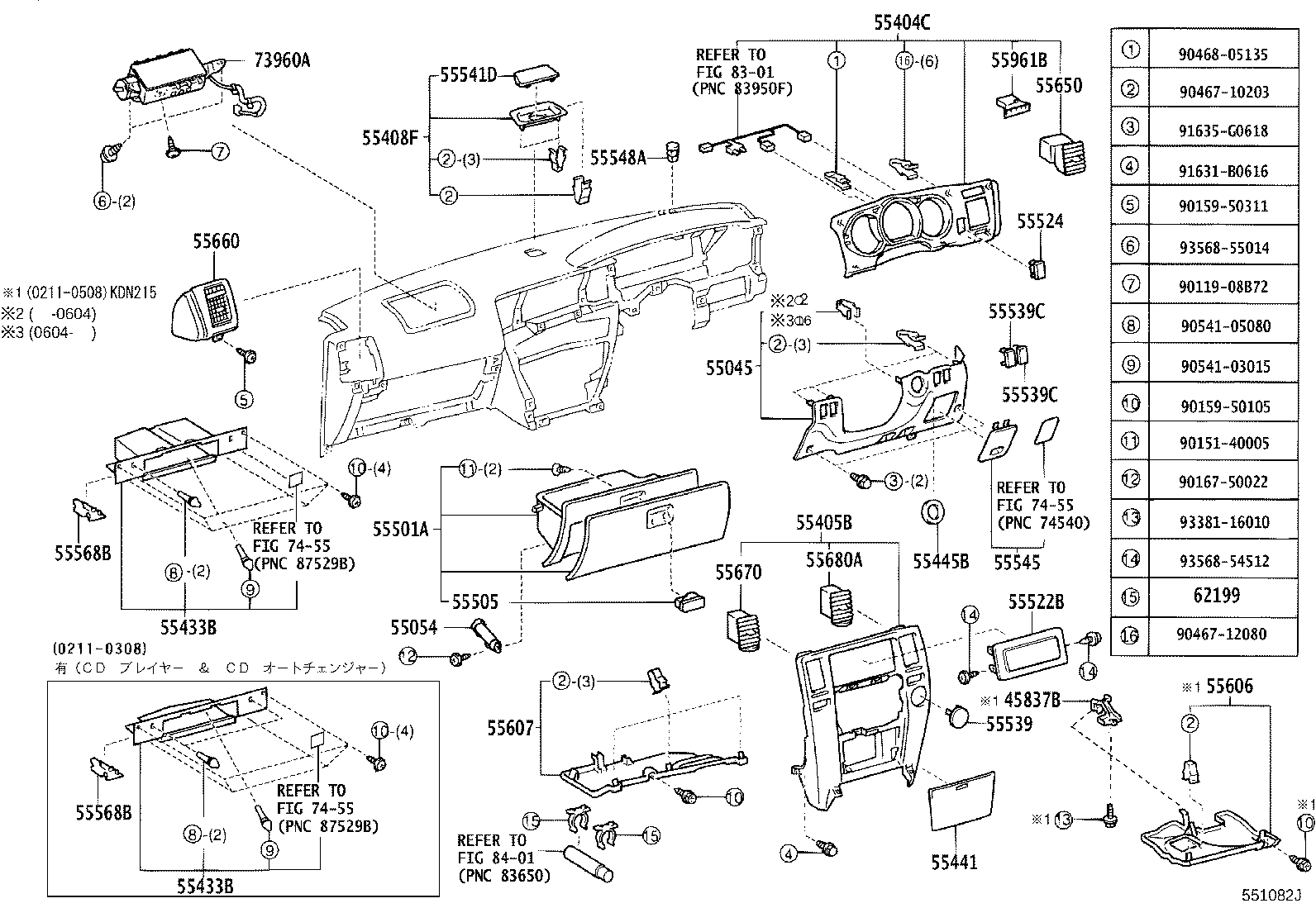

ILLUST NO. 2 OF 2(0211- )

Click highlighted areas on diagram

diagram 45837B 55045 55054 55404C 55405B 55408F 55433B 55433B 55441 55445B 55501A 55505 55522B 55524 55539 55539C 55539C 55541D 55545 55548A 55568B 55568B 55606 55607 55650 55660 55670 55680A 55961B 62199 73960A 7455 7455 7455 8301 8401 9011908B72 9015140005 9015950105 9015950311 9016750022 9046710203 9046712080 9046805135 9054103015 9054105080 91631B0616 91635G0618 9338116010 9356854512 9356855014
Part # Description Qty Price
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-35120B0

TRN215,VZN215..SSRX

STONE,TRIM12,13

 1
55045-35120E0

KDN215,TRN21#,VZN21#

FAWN,TRIM4#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-35020

KDN215,RZN21#,TRN21#,VZN21#

 1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-35290B0

TRN215,VZN215..SSRX

DK.GRAY,TRIM12,13,4#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-35410

KDN215,TRN21#,VZN21#

 1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55408-35170B0

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM1#,4#

 1
55408-35170B0

RZN215;KDN215,RZN210,VZN21#..SSRX

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM1#,4#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55046-35050

KDN215,RZN21#,VZN21#

有り(CDﾌﾟﾚｲﾔｰ & CDｵｰﾄﾁｪﾝｼﾞｬｰ)

 1
55046-35030

KDN215,TRN21#,VZN21#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55046-35050

KDN215,RZN21#,VZN21#

有り(CDﾌﾟﾚｲﾔｰ & CDｵｰﾄﾁｪﾝｼﾞｬｰ)

 1
55046-35030

KDN215,TRN21#,VZN21#

 1
55441 - BOX, INSTRUMENT PANEL
55440-35090

KDN215,TRN21#,VZN21#..SSRX

 1
55445B - PLATE, INSTRUMENT PANEL FINISH
55445-60100E0

KDN215,TRN21#,VZN21#

FAWN,TRIM4#

 1
55445-60100B0

TRN215,VZN215..SSRX

STONE,TRIM12,13

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55550-35070E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 1
55550-35070B0

TRN215,VZN215..SSRX

STONE,TRIM12,13

 1
55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55506-35010B0

TRN215,VZN215..SSRX

STONE,TRIM12,13

 1
55506-35010E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 1
55522B - COVER, RADIO TUNER OPENING
55522-52020

KDN215,TRN21#,VZN21#

 1
55524 - COVER, SWITCH BACE HOLE
55524-51010B2

TRN215,VZN215..SSRX

DK.GRAY,TRIM12,13,4#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-51020C0

KDN215,TRN21#,VZN21#

BLACK,TRIM1#,4#

 1
55539-51020C0

TRN215,VZN215..SSRX

BLACK,TRIM12,13,4#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-51020C0

KDN215,TRN21#,VZN21#

BLACK,TRIM1#,4#

 1
55539-51020C0

TRN215,VZN215..SSRX

BLACK,TRIM12,13,4#

 1
55541D - RETAINER, STEREO OPENING COVER, NO.1
55541-35020B0

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM1#,4#

 1
55541-35020B0

RZN215;KDN215,RZN210,VZN21#..SSRX

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM1#,4#

 1
55545 - COVER, FUSE BOX OPENING
55545-35030E0

KDN215,TRN21#,VZN21#

FAWN,TRIM4#

 1
55545-35030B0

TRN215,VZN215..SSRX

STONE,TRIM12,13

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-12070B4

KDN215,RZN21#,VZN21#..SSRX

DK.GRAY,TRIM1#,4#

 1
55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH
55568-35030

KDN215,TRN21#,VZN21#

 1
55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH
55568-35030

KDN215,TRN21#,VZN21#

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-35060

KDN215,TRN21#,VZN21#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-35070B0

TRN215,VZN215..SSRX

DK.GRAY,TRIM12,13,4#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-35100B0

TRN215,VZN215..SSRX

DK.GRAY,TRIM12,13,4#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-35090

KDN215,TRN21#,VZN21#

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-35070

KDN215,TRN21#,VZN21#

 1
55961B - NOZZLE, SIDE DEFROSTER, NO.1
55961-35020C0

KDN215,RZN21#,TRN21#,VZN21#

BLACK

 1
62199 - HOLDER, FUSEE
90468-25003

KDN215,RZN21#,TRN21#,VZN21#

 2
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-35050

KDN215,TRN21#,VZN21#

 1
Common parts
90119-08B72
90151-40005
90159-50105
90159-50311
90167-50022
90467-10203
90467-12080
90468-05135
90541-03015
90541-05080
91631-B0616
91635-G0618
93381-16010
93568-54512
93568-55014
Linked diagrams
7455
8301
8401
