VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )SSRX

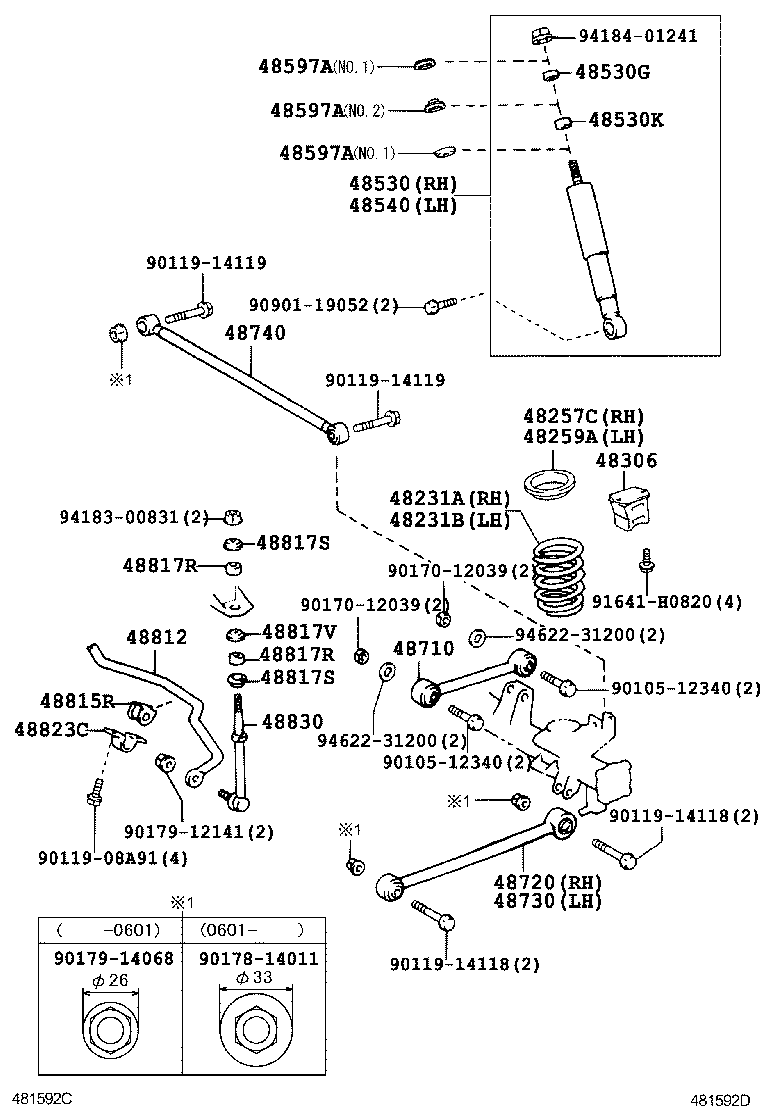

Click highlighted areas on diagram

diagram 48231A 48231B 48257C 48259A 48306 48530 48530G 48530K 48540 48597A 48597A 48597A 48710 48720 48730 48740 48812 48815R 48817R 48817R 48817S 48817S 48817V 48823C 48830 9010512340 9010512340 9011908A91 9011914118 9011914118 9011914119 9011914119 9017012039 9017012039 9017814011 9017912141 9017914068 9090119052 91641H0820 9418300831 9418401241 9462231200 9462231200
Part # Description Qty Price
48231A - SPRING, COIL, REAR RH
48231-35270

KDN215,TRN21#,VZN21#..SSRX

 1
48231B - SPRING, COIL, REAR LH
48231-35270

KDN215,TRN21#,VZN21#..SSRX

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-60040

KDN215,TRN21#,VZN21#

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-60040

KDN215,TRN21#,VZN21#

 1
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-60190

KDN215,TRN21#,VZN21#

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-80088

KDN215,RZN215,TRN215,VZN215..SSRX

ﾏｰｸ 48530−35080

 1
48530-80300

KDN215,TRN215,VZN215..SSRX

ﾏｰｸ 48530−35081

 1
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01087

KDN215,TRN21#,VZN21#

 2
48530K - CUSHION, REAR SHOCK ABSORBER, NO.2
90948-01088

KDN215,TRN21#,VZN21#..SSRX

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-80300

KDN215,TRN215,VZN215..SSRX

ﾏｰｸ 48530−35081

 1
48530-80088

KDN215,RZN215,TRN215,VZN215..SSRX

ﾏｰｸ 48530−35080

 1
48597A - RETAINER, REAR SHOCK ABSORBER CUSHION
48597-60070

KDN215,TRN21#,VZN21#..SSRX

NO.1

 4
48597-60080

KDN215,TRN21#,VZN21#..SSRX

NO.2

 2
48597A - RETAINER, REAR SHOCK ABSORBER CUSHION
48597-60070

KDN215,TRN21#,VZN21#..SSRX

NO.1

 4
48597-60080

KDN215,TRN21#,VZN21#..SSRX

NO.2

 2
48597A - RETAINER, REAR SHOCK ABSORBER CUSHION
48597-60070

KDN215,TRN21#,VZN21#..SSRX

NO.1

 4
48597-60080

KDN215,TRN21#,VZN21#..SSRX

NO.2

 2
48710 - ARM ASSY, UPPER CONTROL
48710-35050

KDN215,TRN21#,VZN21#

 2
48720 - ARM ASSY, LOWER CONTROL, RH
48720-35060

KDN215,TRN21#,VZN21#

 1
48730 - ARM ASSY, LOWER CONTROL, LH
48720-35060

KDN215,TRN21#,VZN21#

 1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-35040

KDN215,TRN21#,VZN21#

 1
48812 - BAR, STABILIZER, REAR
48812-60190

KDN215,TRN21#,VZN21#

 1
48815R - BUSH, STABILIZER(FOR REAR)
48815-14140

KDN215,TRN21#,VZN21#

 2
48817R - CUSHION, STABILIZER(FOR REAR)
48817-30020

KDN215,TRN21#,VZN21#

 4
48817R - CUSHION, STABILIZER(FOR REAR)
48817-30020

KDN215,TRN21#,VZN21#

 4
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02126

KDN215,TRN21#,VZN21#

 4
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02126

KDN215,TRN21#,VZN21#

 4
48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
90948-02127

KDN215,TRN21#,VZN21#

 2
48823C - COVER, REAR STABILIZER BRACKET
48823-35060

KDN215,TRN21#,VZN21#

 2
48830 - LINK ASSY, REAR STABILIZER
48830-60030

KDN215,TRN21#,VZN21#

 2
Common parts
90105-12340
90119-08A91
90119-14118
90119-14119
90170-12039
90178-14011
90179-12141
90179-14068
90901-19052
91641-H0820
94183-00831
94184-01241
94622-31200
