VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

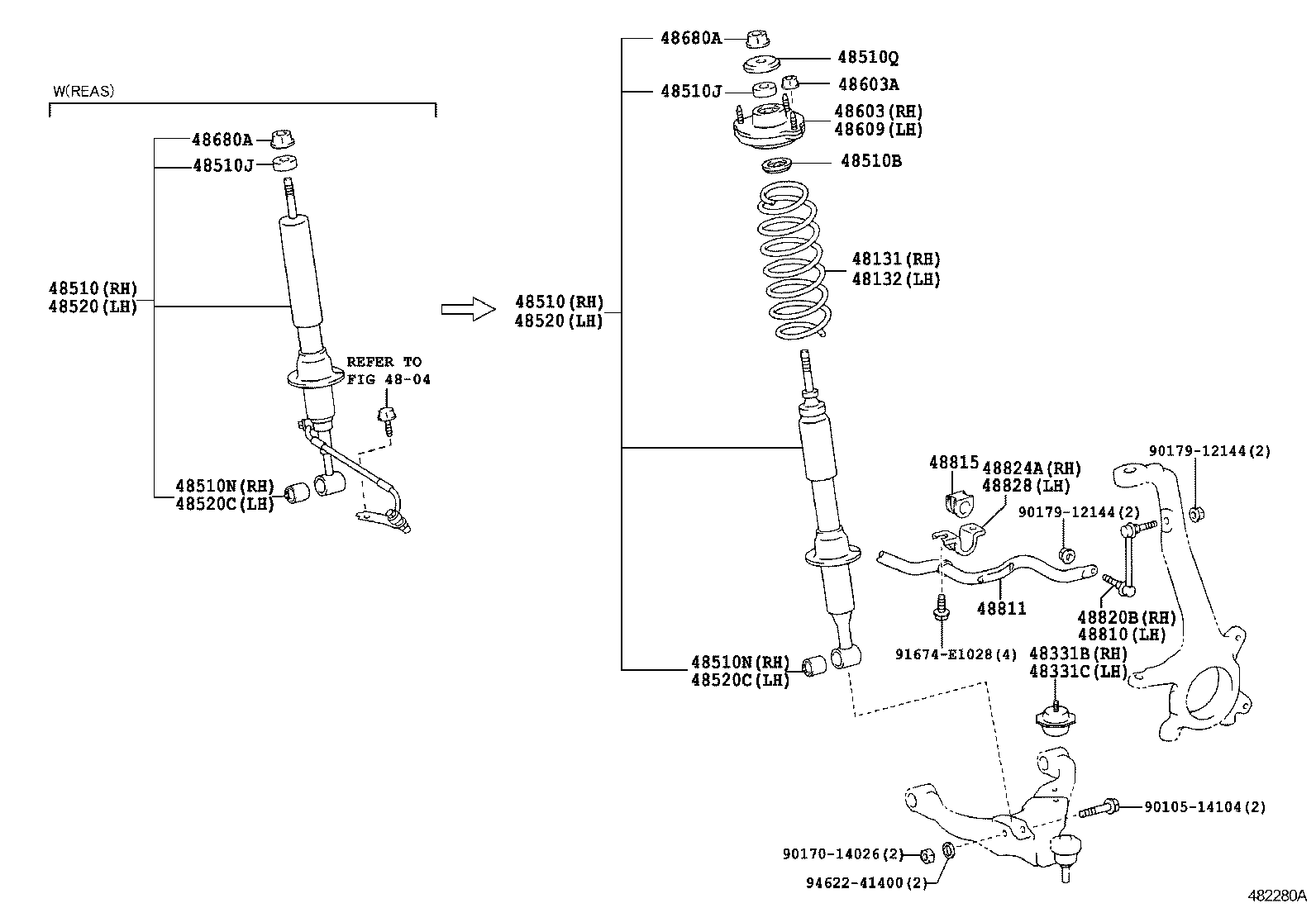

Click highlighted areas on diagram

diagram 4804 48131 48132 48331B 48331C 48510 48510 48510B 48510J 48510J 48510N 48510N 48510Q 48520 48520 48520C 48520C 48603 48603A 48609 48680A 48680A 48810 48811 48815 48820B 48824A 48828 9010514104 9017014026 9017912144 9017912144 91674E1028 9462241400
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-35470

VZN215

 1
48132 - SPRING, FRONT COIL, LH
48131-35470

VZN215

 1
48331B - BUMPER, FRONT SPRING, RH
48304-60120

KDN215,TRN21#,VZN21#

 1
48331C - BUMPER, FRONT SPRING, LH
48304-60120

KDN215,TRN21#,VZN21#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80270

KDN215,TRN215,VZN215..SSRX

ﾏｰｸ 48510−35231

 1
48510-80086

KDN215,RZN215,TRN215,VZN215..SSRX

ﾏｰｸ 48510−35230

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80270

KDN215,TRN215,VZN215..SSRX

ﾏｰｸ 48510−35231

 1
48510-80086

KDN215,RZN215,TRN215,VZN215..SSRX

ﾏｰｸ 48510−35230

 1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02159

KDN215,TRN21#,VZN21#

 2
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-01056

KDN215,TRN21#,VZN21#

 2
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-01056

KDN215,TRN21#,VZN21#

 2
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90903-89012

KDN215,RZN21#,TRN21#,VZN21#

 1
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90903-89012

KDN215,RZN21#,TRN21#,VZN21#

 1
48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
90948-02161

KDN215,TRN21#,VZN21#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-80086

KDN215,RZN215,TRN215,VZN215..SSRX

ﾏｰｸ 48510−35230

 1
48510-80270

KDN215,TRN215,VZN215..SSRX

ﾏｰｸ 48510−35231

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-80086

KDN215,RZN215,TRN215,VZN215..SSRX

ﾏｰｸ 48510−35230

 1
48510-80270

KDN215,TRN215,VZN215..SSRX

ﾏｰｸ 48510−35231

 1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90903-89012

KDN215,RZN21#,TRN21#,VZN21#

 1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90903-89012

KDN215,RZN21#,TRN21#,VZN21#

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-60030

KDN215,TRN21#,VZN21#

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90179-10212

KDN215,TRN21#,VZN21#

 6
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-60030

KDN215,TRN21#,VZN21#

 1
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94184-01241

KDN215,TRN21#,VZN21#

 2
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94184-01241

KDN215,TRN21#,VZN21#

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-60040

KDN215,TRN21#,VZN21#

 1
48811 - BAR, STABILIZER, FRONT
48811-60230

KDN215,TRN21#,VZN21#

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-60180

KDN215,TRN21#,VZN21#

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-60050

KDN215,TRN21#,VZN21#

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-60140

KDN215,TRN21#,VZN21#

 1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48829-60090

KDN215,TRN21#,VZN21#

 1
Common parts
90105-14104
90170-14026
90179-12144
91674-E1028
94622-41400
Linked diagrams
4804
