VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

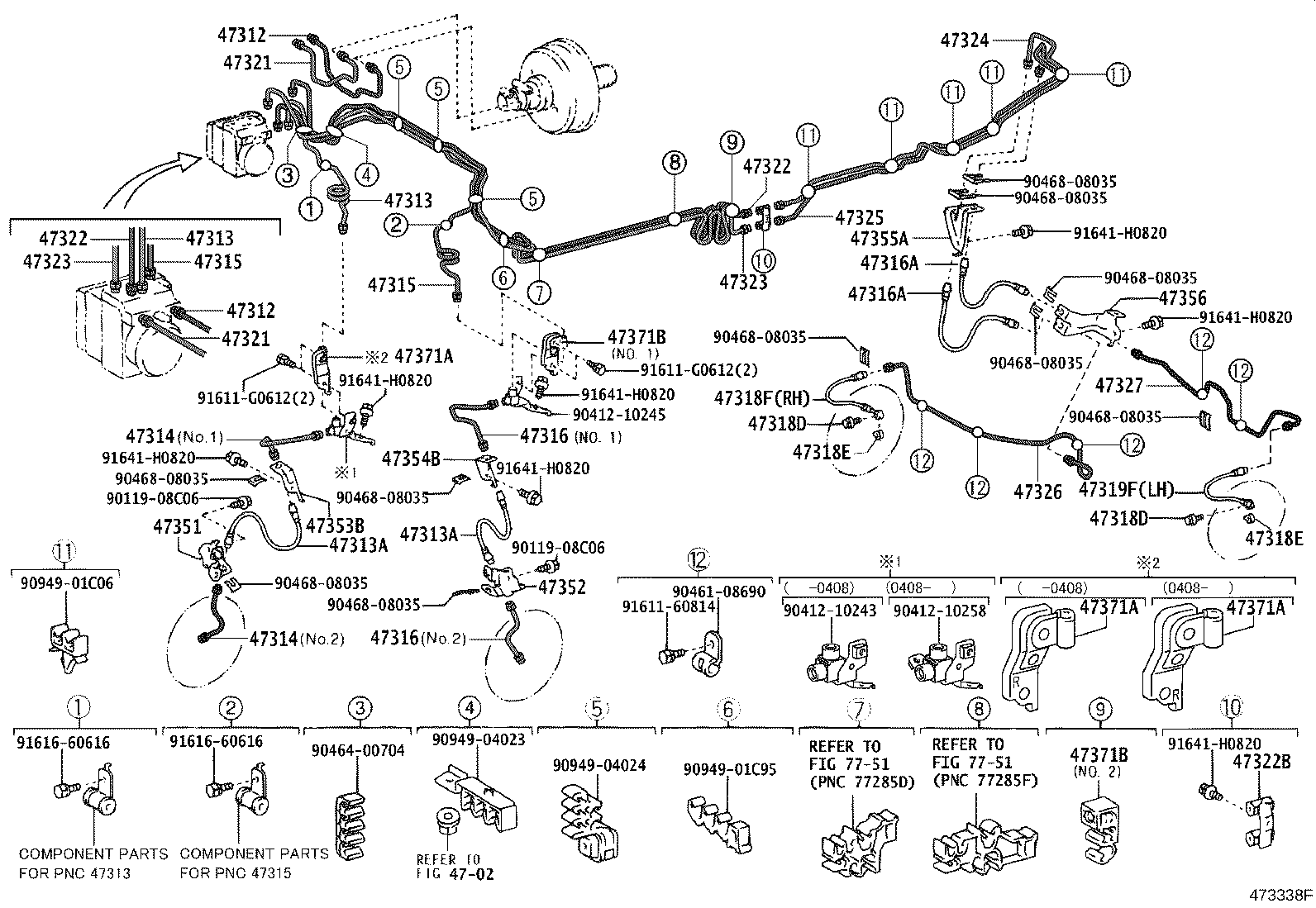

ILLUST NO. 1 OF 2(0211- )

Click highlighted areas on diagram

diagram 4702 47312 47312 47313 47313 47313A 47313A 47314 47314 47315 47315 47316 47316 47316A 47316A 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321 47322 47322 47322B 47323 47323 47324 47325 47326 47327 47351 47352 47353B 47354B 47355A 47356 47371A 47371A 47371A 47371B 47371B 7751 7751 9011908C06 9011908C06 9041210243 9041210245 9041210258 9046108690 9046400704 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9094901C06 9094901C95 9094904023 9094904024 9161160814 91611G0612 91611G0612 9161660616 9161660616 91641H0820 91641H0820 91641H0820 91641H0820 91641H0820 91641H0820 91641H0820
Part # Description Qty Price
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D420

KDN215,TRN21#,VZN21#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D420

KDN215,TRN21#,VZN21#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-3D161

KDN215,TRN21#,VZN21#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-3D161

KDN215,TRN21#,VZN21#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35

KDN215,TRN21#,VZN21#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35

KDN215,TRN21#,VZN21#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-35320

KDN215,TRN21#,VZN21#

NO.2

 1
47314-35310

KDN215,TRN21#,VZN21#

NO.1

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-35320

KDN215,TRN21#,VZN21#

NO.2

 1
47314-35310

KDN215,TRN21#,VZN21#

NO.1

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35441

KDN215,TRN21#,VZN21#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35441

KDN215,TRN21#,VZN21#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35270

KDN215,TRN21#,VZN21#

NO.1

 1
47316-35280

KDN215,TRN21#,VZN21#

NO.2

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35270

KDN215,TRN21#,VZN21#

NO.1

 1
47316-35280

KDN215,TRN21#,VZN21#

NO.2

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02D40

KDN215,TRN21#,VZN21#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02D40

KDN215,TRN21#,VZN21#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

KDN215,TRN21#,VZN21#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

KDN215,TRN21#,VZN21#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

KDN215,TRN21#,VZN21#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

KDN215,TRN21#,VZN21#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02D31

KDN215,TRN21#,VZN21#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02D32

KDN215,TRN21#,VZN21#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35840

KDN215,TRN21#,VZN21#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35840

KDN215,TRN21#,VZN21#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-3D060

KDN215,TRN21#,VZN21#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-3D060

KDN215,TRN21#,VZN21#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90412-10232

KDN215,TRN21#,VZN21#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35250

KDN215,TRN21#,VZN21#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35250

KDN215,TRN21#,VZN21#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35310

KDN215,TRN21#,VZN21#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35390

KDN215,TRN21#,VZN21#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-35130

KDN215,TRN21#,VZN21#

 1
47326-35120

KDN215,RZN21#,VZN21#

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-35100

KDN215,TRN21#,VZN21#

 1
47327-35090

KDN215,RZN21#,VZN21#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35350

KDN215,TRN21#,VZN21#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35390

KDN215,TRN21#,VZN21#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-35140

KDN215,TRN21#,VZN21#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-35120

KDN215,TRN21#,VZN21#

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-35130

KDN215,TRN21#,VZN21#

 1
47356 - BRACKET, FLEXIBLE HOSE, NO.6
47356-35010

KDN215,TRN21#,VZN21#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150

KDN215,RZN21#,VZN21#

 1
47371-60170

KDN215,TRN21#,VZN21#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150

KDN215,RZN21#,VZN21#

 1
47371-60170

KDN215,TRN21#,VZN21#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150

KDN215,RZN21#,VZN21#

 1
47371-60170

KDN215,TRN21#,VZN21#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-60160

KDN215,TRN21#,VZN21#

NO.1

 1
77299-32030

KDN215,TRN21#,VZN21#

NO.2

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-60160

KDN215,TRN21#,VZN21#

NO.1

 1
77299-32030

KDN215,TRN21#,VZN21#

NO.2

 1
Common parts
90119-08C06
90412-10243
90412-10245
90412-10258
90461-08690
90464-00704
90468-08035
90949-01C06
90949-01C95
90949-04023
90949-04024
91611-60814
91611-G0612
91616-60616
91641-H0820
Linked diagrams
4702
7751

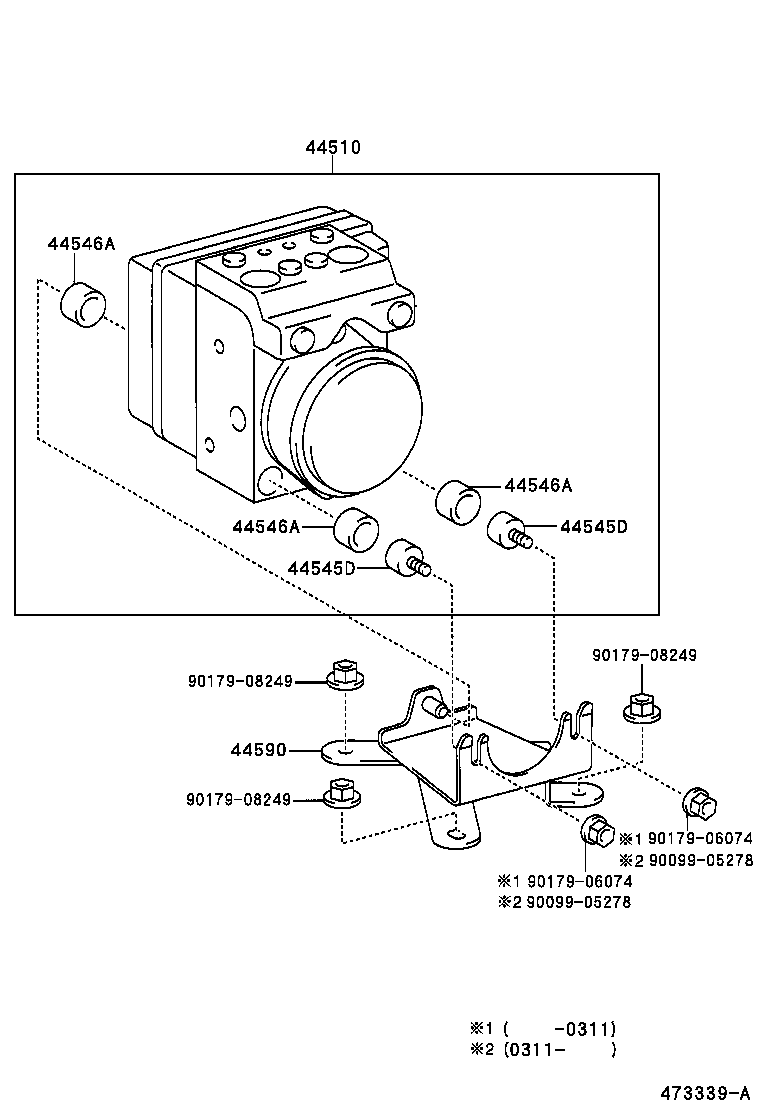

ILLUST NO. 2 OF 2(0211- )

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905278 9009905278 9017906074 9017906074 9017908249 9017908249 9017908249
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-60090

KDN215,TRN215,VZN215

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12010

KDN215,TRN21#,VZN21#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12010

KDN215,TRN21#,VZN21#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

KDN215,TRN21#,VZN21#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

KDN215,TRN21#,VZN21#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

KDN215,TRN21#,VZN21#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-60020

KDN215,TRN21#,VZN21#

 1
Common parts
90099-05278
90179-06074
90179-08249
