VZN215W-GKPXK (2002)
Toyota Hilux Surf
Production
Nov 2002
-
Aug 2005
Engine
5VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0211- )

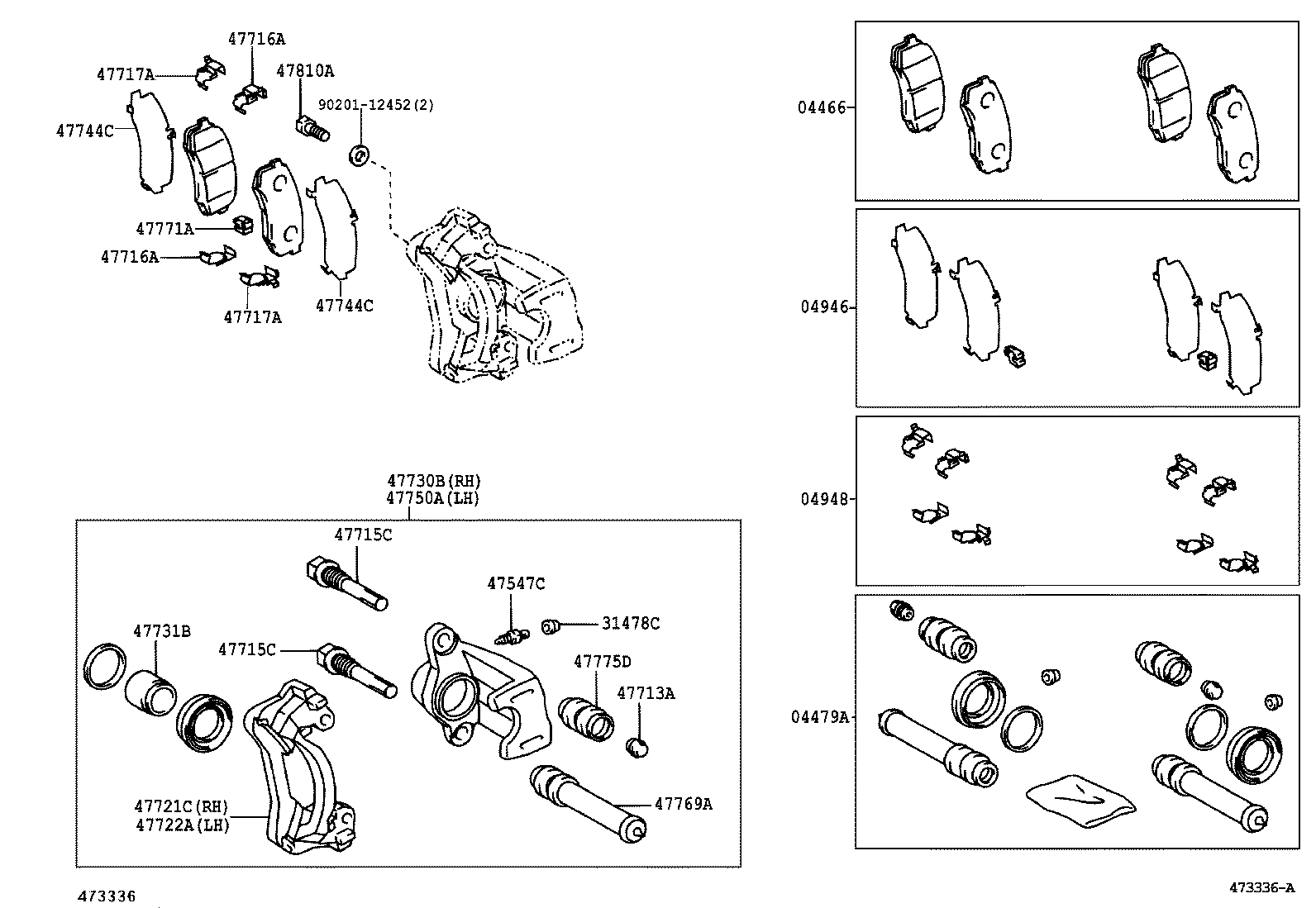

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-60090 |
KDN215,RZN21#,TRN21#,VZN21# ﾏｰｸ SUMITOMO PS549 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-35060 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-30100 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04947-22050 |
KDN215,TRN21#,VZN21# |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
KDN215,TRN21#,VZN21# |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-12030 |
KDN215,TRN21#,VZN21# |
2 | ||
| 47713A - PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER) | ||||
| 90950-01301 |
KDN215,TRN21#,VZN21# |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-22010 |
KDN215,TRN21#,VZN21# |
4 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-22010 |
KDN215,TRN21#,VZN21# |
4 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-22010 |
KDN215,TRN21#,VZN21# |
4 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-22010 |
KDN215,TRN21#,VZN21# |
4 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-22010 |
KDN215,TRN21#,VZN21# |
4 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-22010 |
KDN215,TRN21#,VZN21# |
4 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-60020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47722-60020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-35170 |
KDN215,TRN21#,VZN21# |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-35070 |
KDN215,TRN21#,VZN21# |
2 | ||
| 47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-60010 |
KDN215,TRN21#,VZN21# |
4 | ||
| 47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-60010 |
KDN215,TRN21#,VZN21# |
4 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-35170 |
KDN215,TRN21#,VZN21# |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-22010 |
KDN215,TRN21#,VZN21# |
2 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-22030 |
KDN215,TRN21#,VZN21# |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-22010 |
KDN215,TRN21#,VZN21# |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90101-12167 |
KDN215,TRN21#,VZN21# |
4 | ||
| Common parts | ||||
| 90201-12452 | ||||
