VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

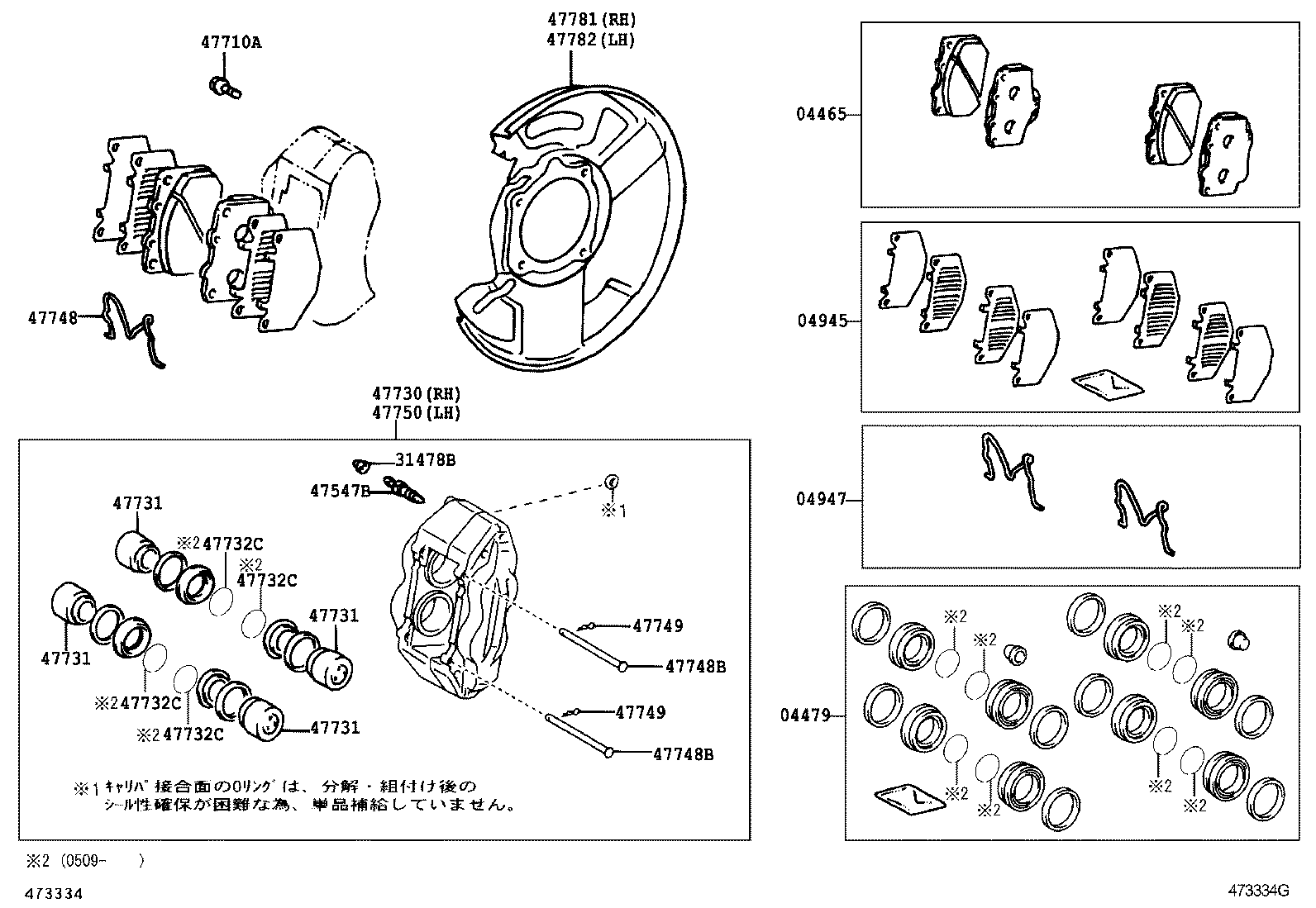

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47730 47731 47731 47731 47731 47732C 47732C 47732C 47732C 47748 47748B 47748B 47749 47749 47750 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-35290

KDN215,TRN21#,VZN21#

ﾏｰｸ SUMITOMO PS534H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-60080

KDN215,RZN21#,TRN21#,VZN21#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-35120

KDN215,TRN21#,VZN21#

 1
04945-35080

KDN215,TRN21#,VZN21#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-35050

KDN215,TRN21#,VZN21#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

KDN215,TRN21#,VZN21#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-35020

KDN215,TRN21#,VZN21#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12175

KDN215,TRN21#,VZN21#

*12−1.25PX35−27

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-35160

KDN215,TRN21#,VZN21#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-35040

KDN215,TRN21#,VZN21#

 8
47731 - PISTON, FRONT DISC BRAKE
47731-35040

KDN215,TRN21#,VZN21#

 8
47731 - PISTON, FRONT DISC BRAKE
47731-35040

KDN215,TRN21#,VZN21#

 8
47731 - PISTON, FRONT DISC BRAKE
47731-35040

KDN215,TRN21#,VZN21#

 8
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-35010

KDN215,TRN21#,VZN21#

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158

KDN215,RZN21#,TRN21#,VZN21#

 4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158

KDN215,RZN21#,TRN21#,VZN21#

 4
47749 - CLIP, PIN HOLD
47749-35040

KDN215,TRN21#,VZN21#

 4
47749 - CLIP, PIN HOLD
47749-35040

KDN215,TRN21#,VZN21#

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-35160

KDN215,TRN21#,VZN21#

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-35160

KDN215,TRN21#,VZN21#

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-35160

KDN215,TRN21#,VZN21#

 1
