VZN215W-GKPXK (2002)
Toyota Hilux Surf
ILLUST NO. 1 OF 2(0211-0802)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-35020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-17020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-3D070 |
KDN215,TRN21#,VZN21# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-35760 |
KDN215,TRN21#,VZN21# |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-35080 |
KDN215,TRN21#,VZN21# |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46421-35020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46431-35020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-35550 |
KDN215,TRN21#,VZN21# |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-35060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 46441-35020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 46454 - BRACKET, CABLE RETAINER, FRONT | ||||
| 46454-35180 |
KDN215,TRN21#,VZN21# |
2 | ||
| 46454 - BRACKET, CABLE RETAINER, FRONT | ||||
| 46454-35180 |
KDN215,TRN21#,VZN21# |
2 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90179-06274 | ||||
| 90179-06299 | ||||
| 90179-08057 | ||||
| 90468-08001 | ||||
| 91621-G0816 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||

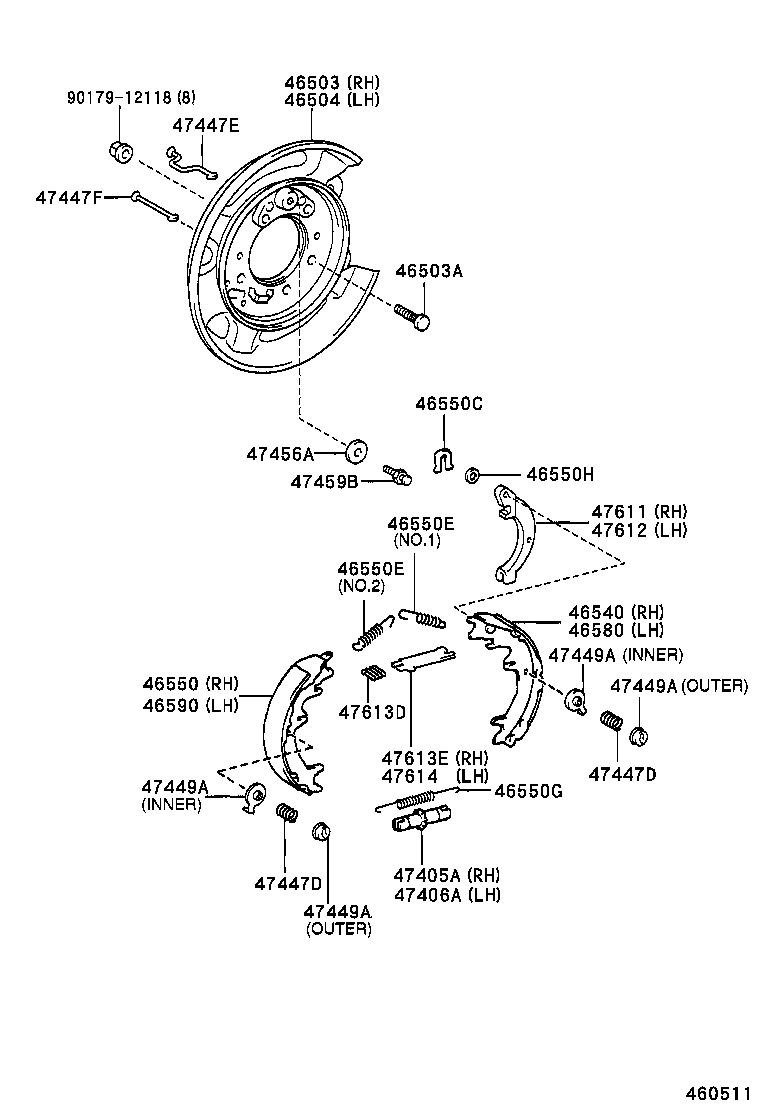

ILLUST NO. 2 OF 2(0211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-60130 |
KDN215,RZN21#,VZN21# |
1 | ||
| 46503-60131 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 46503A - BOLT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) | ||||
| 90114-12040 |
KDN215,TRN21#,VZN21# |
8 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-60091 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 46504-60090 |
KDN215,RZN21#,VZN21# |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46580-60060 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-60070 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
KDN215,RZN21#,TRN21#,VZN21# |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-23014 |
KDN215,RZN21#,TRN21#,VZN21# NO.2 |
2 | ||
| 90507-20016 |
KDN215,RZN21#,TRN21#,VZN21# NO.1 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-23014 |
KDN215,RZN21#,TRN21#,VZN21# NO.2 |
2 | ||
| 90507-20016 |
KDN215,RZN21#,TRN21#,VZN21# NO.1 |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12061 |
KDN215,RZN21#,TRN21#,VZN21# |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09184 |
KDN215,RZN21#,TRN21#,VZN21# 厚さ=0.3 |
1 | ||
| 90564-09002 |
KDN215,RZN21#,TRN21#,VZN21# 厚さ=0.4 |
1 | ||
| 90564-09186 |
KDN215,RZN21#,TRN21#,VZN21# 厚さ=0.9 |
1 | ||
| 90564-09185 |
KDN215,RZN21#,TRN21#,VZN21# 厚さ=0.6 |
1 | ||
| 90564-09003 |
KDN215,RZN21#,TRN21#,VZN21# 厚さ=0.5 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-60060 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46550-60070 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-60010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-60010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
KDN215,RZN21#,TRN21#,VZN21# |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
KDN215,RZN21#,TRN21#,VZN21# |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-50010 |
KDN215,RZN21#,TRN21#,VZN21# |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-30020 |
KDN215,RZN21#,TRN21#,VZN21# |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-40010 |
KDN215,RZN21#,TRN21#,VZN21# 内側 |
4 | ||
| 47449-30030 |
KDN215,RZN21#,TRN21#,VZN21# 外側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-40010 |
KDN215,RZN21#,TRN21#,VZN21# 内側 |
4 | ||
| 47449-30030 |
KDN215,RZN21#,TRN21#,VZN21# 外側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-40010 |
KDN215,RZN21#,TRN21#,VZN21# 内側 |
4 | ||
| 47449-30030 |
KDN215,RZN21#,TRN21#,VZN21# 外側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-40010 |
KDN215,RZN21#,TRN21#,VZN21# 内側 |
4 | ||
| 47449-30030 |
KDN215,RZN21#,TRN21#,VZN21# 外側 |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
KDN215,RZN21#,TRN21#,VZN21# |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47612-60020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47611-60020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
KDN215,RZN21#,TRN21#,VZN21# |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-60020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-60020 |
KDN215,TRN21#,VZN21# |
1 | ||
| Common parts | ||||
| 90179-12118 | ||||
