VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

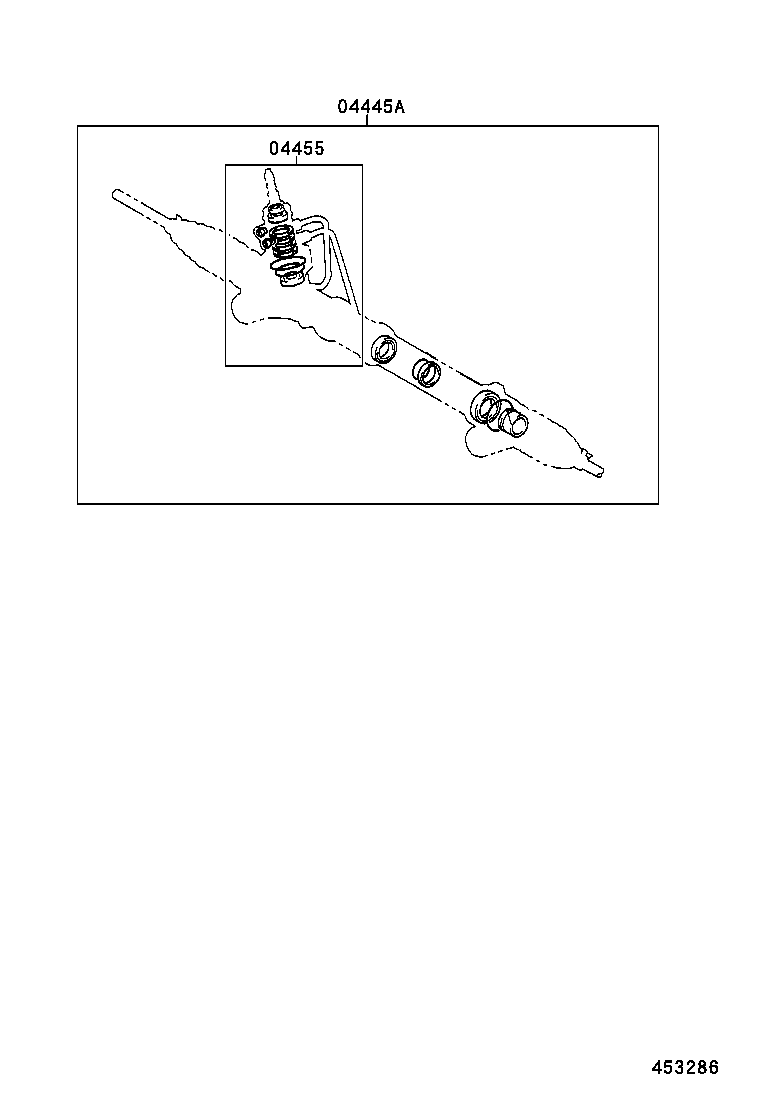

ILLUST NO. 2 OF 2(0211- )

Click highlighted areas on diagram

diagram 04445A 04455
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-28091

KDN215,RZN21#,VZN21#

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-28061

KDN215,RZN21#,VZN21#

 1

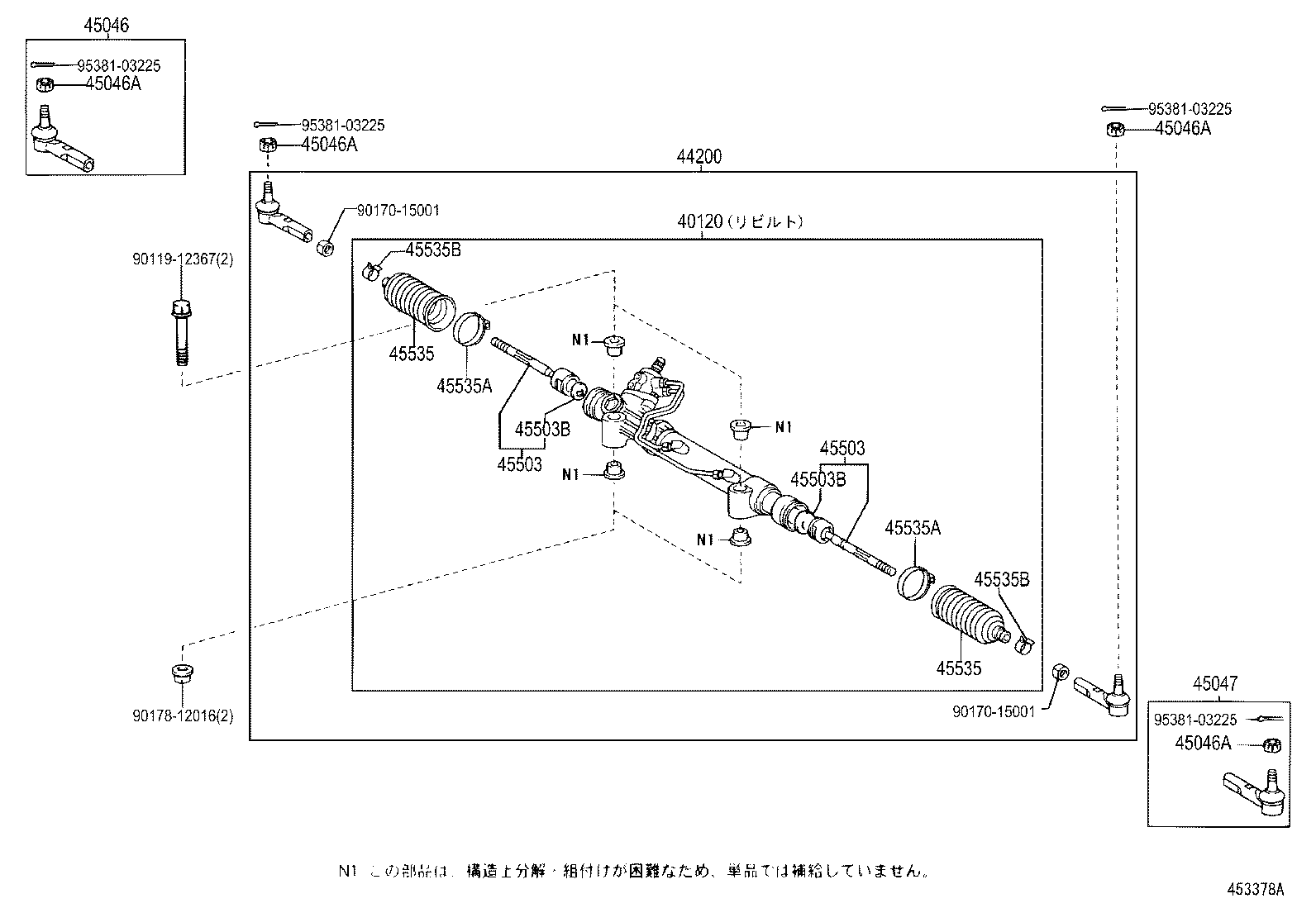

ILLUST NO. 1 OF 2(0211- )

Click highlighted areas on diagram

diagram 40120 44200 45046 45046A 45046A 45046A 45046A 45047 45503 45503 45503B 45503B 45535 45535 45535A 45535A 45535B 45535B 9011912367 9017015001 9017015001 9017812016 9538103225 9538103225 9538103225 9538103225
Part # Description Qty Price
40120 - GEAR ASSY,POWER STEERING,REBUILT
40120-35051

KDN215,RZN21#,TRN21#,VZN21#

TOYODA KOKI

 1
40120-35050

KDN215,RZN21#,VZN21#

TOYODA KOKI

 1
44200 - LINK ASSY, POWER STEERING
44200-35050

KDN215,RZN21#,VZN21#

 1
44200-35051

KDN215,TRN21#,VZN21#

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-39505

KDN215,TRN21#,VZN21#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

KDN215,TRN21#,VZN21#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

KDN215,TRN21#,VZN21#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

KDN215,TRN21#,VZN21#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

KDN215,TRN21#,VZN21#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-39505

KDN215,TRN21#,VZN21#

 1
45503 - END SUB-ASSY, STEERING RACK
45503-39235

KDN215,RZN21#,VZN21#

 2
45503-39265

KDN215,TRN21#,VZN21#

 2
45503 - END SUB-ASSY, STEERING RACK
45503-39235

KDN215,RZN21#,VZN21#

 2
45503-39265

KDN215,TRN21#,VZN21#

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-22001

KDN215,TRN21#,VZN21#

外径=43

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-22001

KDN215,TRN21#,VZN21#

外径=43

 2
45535 - BOOT, STEERING RACK, NO.1
45535-26030

KDN215,TRN21#,VZN21#

 2
45535 - BOOT, STEERING RACK, NO.1
45535-26030

KDN215,TRN21#,VZN21#

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55016

KDN215,TRN21#,VZN21#

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55016

KDN215,TRN21#,VZN21#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

KDN215,TRN21#,VZN21#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

KDN215,TRN21#,VZN21#

 2
Common parts
90119-12367
90170-15001
90178-12016
95381-03225
