VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

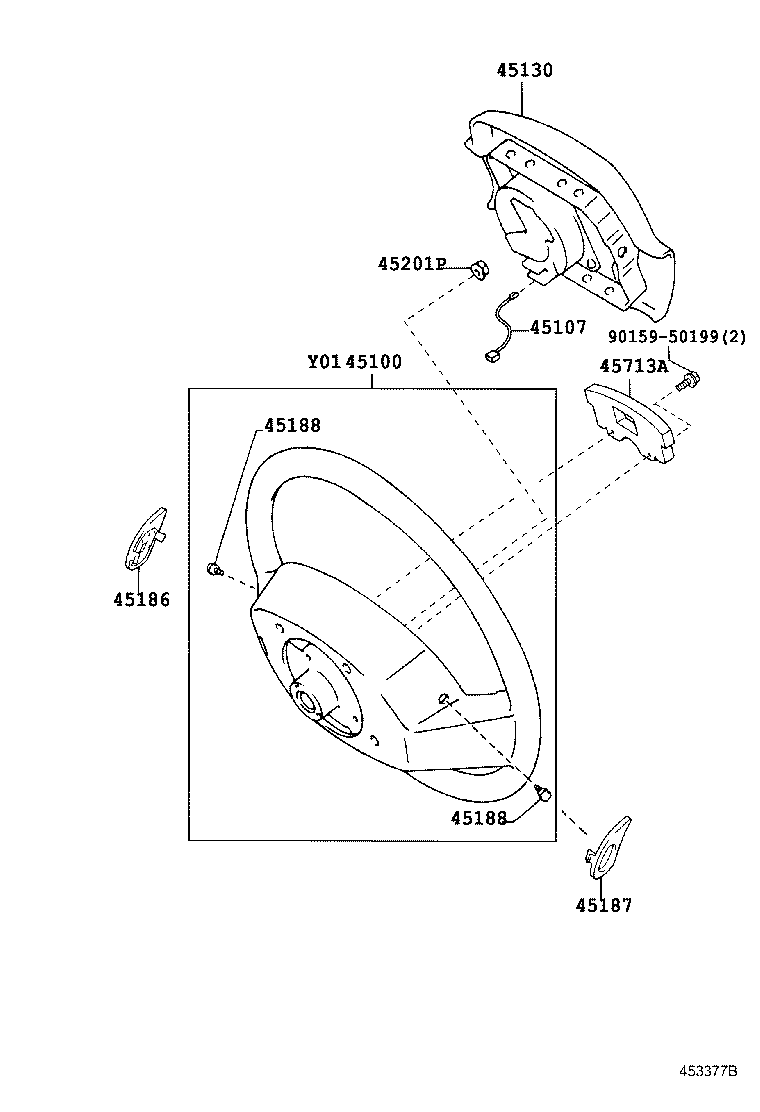

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45107 45130 45186 45187 45188 45188 45201P 45713A 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-58010B0

TRN215,VZN215..SSRX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM12,13,4#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-60010

KDN215,TRN21#,VZN21#

 1
45130 - BUTTON ASSY, HORN
45130-35420B0

TRN215,VZN215..SSRX

DK.GRAY,TRIM12,13,4#

 1
45130-35421B0

TRN215,VZN215..SSRX

DK.GRAY,TRIM12,13,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-58010B0

TRN215,VZN215..SSRX

DK.GRAY,TRIM12,13,4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-58010B0

TRN215,VZN215..SSRX

DK.GRAY,TRIM12,13,4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

KDN215,TRN21#,VZN21#

長さ=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

KDN215,TRN21#,VZN21#

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

KDN215,TRN21#,VZN21#

 1
45713A - DAMPER, STEERING SHAKE
45713-35030

KDN215,TRN21#,VZN21#

 1
Common parts
90159-50199
