VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211-0508)VZN21#

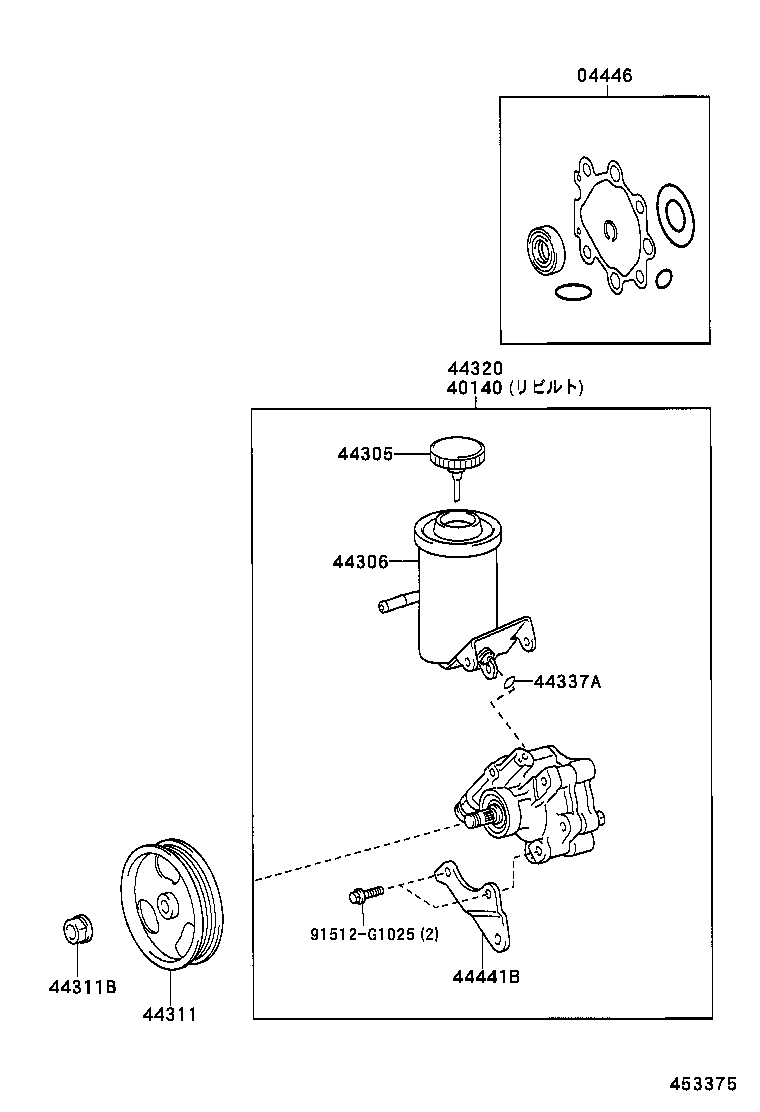

Click highlighted areas on diagram

diagram 04446 40140 44305 44306 44311 44311B 44320 44337A 44441B 91512G1025
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-53030

VZN21#

 1
40140 - PUMP ASSY,VANE REBUILT
40140-35620

VZN21#

TOYODA KOKI

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-50010

VZN21#

 1
44306 - RESERVOIR SUB-ASSY, VANE PUMP OIL
44306-35300

VZN21#

 1
44311 - PULLEY, VANE PUMP
44311-34030

VZN21#

 1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003

VZN21#

 1
44320 - PUMP ASSY, VANE
44320-35620

VZN21#

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11016

VZN21#

 1
44441B - BRACKET, PUMP, FRONT
44441-34010

VZN21#

 1
Common parts
91512-G1025
