VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

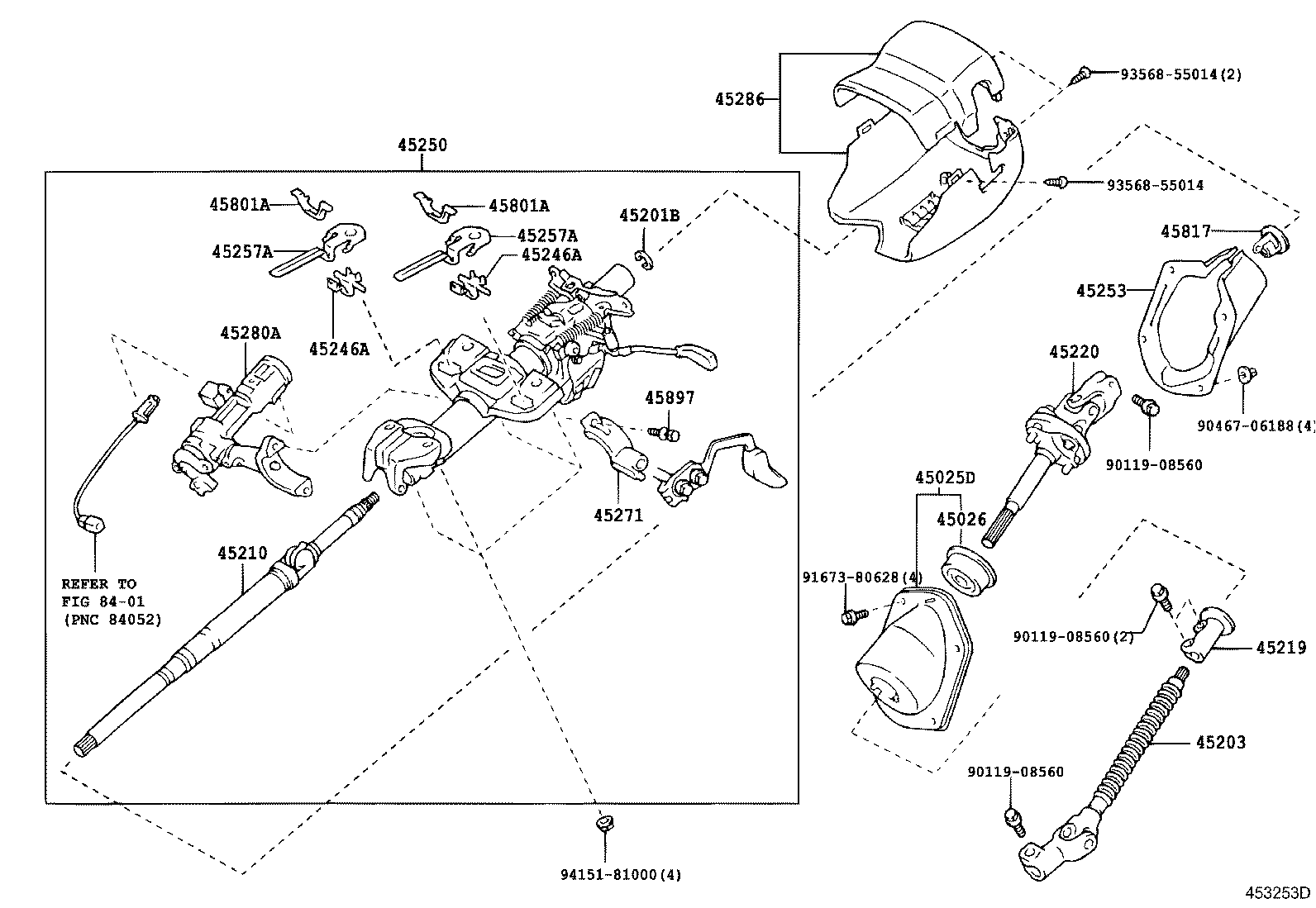

Click highlighted areas on diagram

diagram 45025D 45026 45201B 45203 45210 45219 45220 45246A 45246A 45250 45253 45257A 45257A 45271 45280A 45286 45801A 45801A 45817 45897 8401 9011908560 9011908560 9011908560 9046706188 9167380628 9356855014 9356855014 9415181000
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-35380

KDN215,TRN21#,VZN21#

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-35060

KDN215,TRN21#,VZN21#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

KDN215,TRN21#,VZN21#

厚さ=1.20

 1
45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45203-35320

KDN215,TRN21#,VZN21#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-35250

KDN215,TRN21#,VZN21#

 1
45219 - YOKE, STEERING SLIDING
45219-35170

KDN215,TRN21#,VZN21#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-35180

KDN215,TRN21#,VZN21#

 1
45246A - GUIDE, STEERING ENERGY ABSORBING PLATE
45246-28040

KDN215,TRN21#,VZN21#

 2
45246A - GUIDE, STEERING ENERGY ABSORBING PLATE
45246-28040

KDN215,TRN21#,VZN21#

 2
45250 - COLUMN ASSY, STEERING
45250-3D870

KDN215,TRN21#,VZN21#

 1
45253 - COVER, STEERING COLUMN HOLE
45253-35360

KDN215,TRN21#,VZN21#

 1
45257A - PLATE, STEERING COLUMN ENERGY ABSORBING
45257-28010

KDN215,TRN21#,VZN21#

 2
45257A - PLATE, STEERING COLUMN ENERGY ABSORBING
45257-28010

KDN215,TRN21#,VZN21#

 2
45271 - CLAMP, STEERING COLUMN, UPPER
45271-22010

KDN215,TRN21#,VZN21#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-35390

KDN215,TRN21#,VZN21#

 1
45286 - COVER, STEERING COLUMN
45286-35913B0

KDN215,TRN21#,VZN21#

DK.GRAY,TRIM1#,4#

 1
45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING
45875-12010

KDN215,TRN21#,VZN21#

 2
45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING
45875-12010

KDN215,TRN21#,VZN21#

 2
45817 - STOPPER, STEERING SHAFT THRUST
45817-35050

KDN215,TRN21#,VZN21#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

KDN215,TRN21#,VZN21#

 2
Common parts
90119-08560
90467-06188
91673-80628
93568-55014
94151-81000
Linked diagrams
8401
