VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )GRN215,KDN215,RZN215,TRN215,VZN215

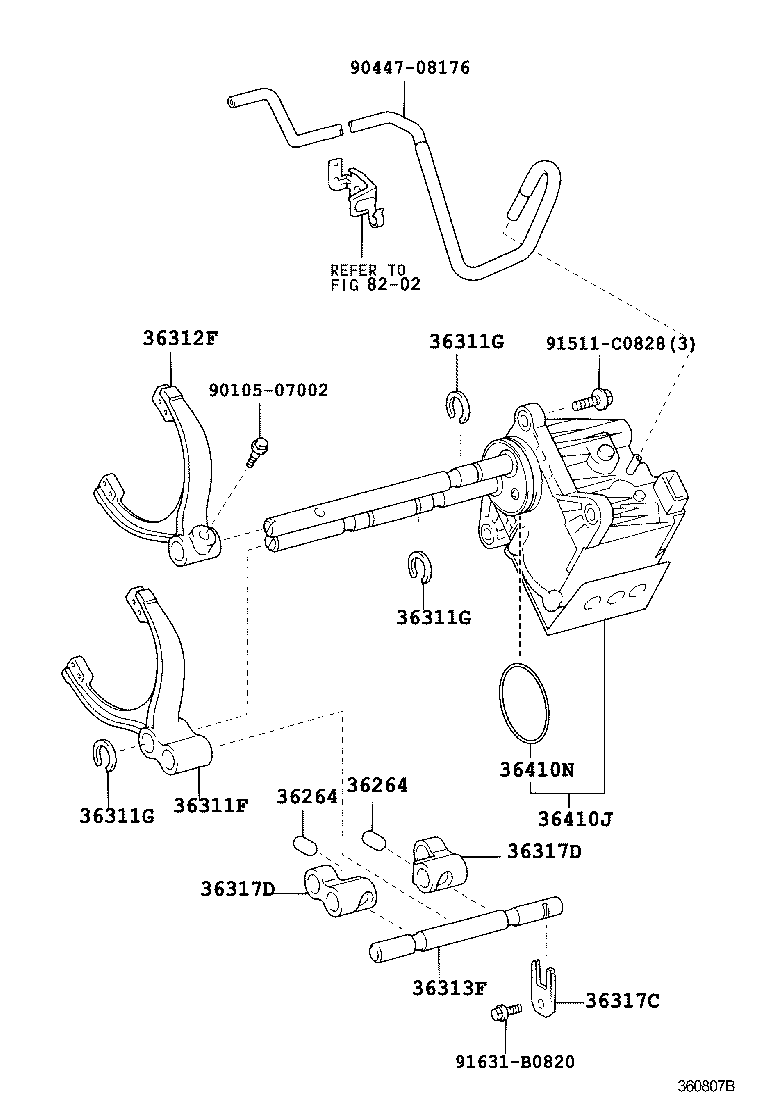

Click highlighted areas on diagram

diagram 36264 36264 36311F 36311G 36311G 36311G 36312F 36313F 36317C 36317D 36317D 36410J 36410N 8202 9010507002 9044708176 91511C0828 91631B0820
Part # Description Qty Price
36264 - PIN OR ROLLER, SHIFT INTER-LOCK
90250-06007

KDN215,RZN215,TRN215,VZN215

長さ=8.6,外径=6

 2
36264 - PIN OR ROLLER, SHIFT INTER-LOCK
90250-06007

KDN215,RZN215,TRN215,VZN215

長さ=8.6,外径=6

 2
36311F - FORK, TRANSFER GEAR SHIFT, NO.1
36301-35010

KDN215,RZN215,TRN215,VZN215

 1
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13002

KDN215,RZN215,TRN215,VZN215

 3
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13002

KDN215,RZN215,TRN215,VZN215

 3
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13002

KDN215,RZN215,TRN215,VZN215

 3
36312F - FORK, TRANSFER GEAR SHIFT, NO.2
36302-35011

KDN215,RZN215,TRN215,VZN215

 1
36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36313-35130

KDN215,RZN215,TRN215,VZN215

 1
36317C - STOPPER, TRANSFER SHIFT SHAFT
36317-35041

KDN215,RZN215,TRN215,VZN215

 1
36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT
36317-35060

KDN215,TRN215,VZN215

 2
36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT
36317-35060

KDN215,TRN215,VZN215

 2
36410J - ACTUATOR ASSY, TRANSFER SHIFT
36410-35092

KDN215,TRN215,VZN215

 1
36410-35090

KDN215,RZN215,VZN215

 1
36410-35091

KDN215,TRN215,VZN215

 1
36410N - RING, O (FOR TRANSFER SHIFT ACTUATOR)
90301-56009

KDN215,RZN215,TRN215,VZN215

 1
Common parts
90105-07002
90447-08176
91511-C0828
91631-B0820
Linked diagrams
8202
