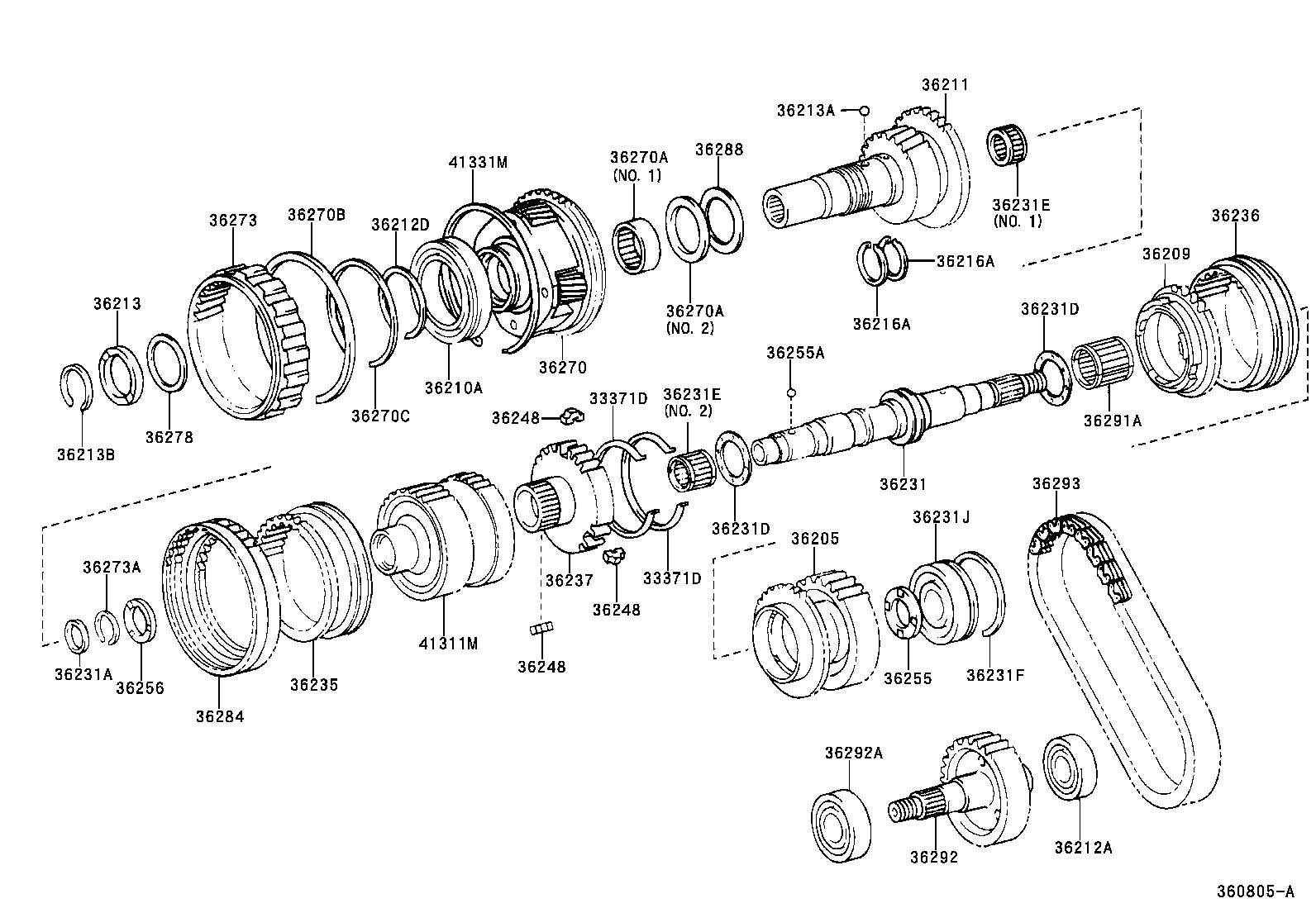

VZN215W-GKPXK (2002)
Toyota Hilux Surf
(0211- )GRN215,KDN215,RZN215,TRN215,VZN215
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33371D - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) | ||||
| 33371-35030 |
KDN215,RZN215,TRN215,VZN215 |
2 | ||
| 33371D - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) | ||||
| 33371-35030 |
KDN215,RZN215,TRN215,VZN215 |
2 | ||
| 36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE | ||||
| 36205-35100 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36209 - RING SET, TRANSFER SYNCHRONIZER | ||||
| 36209-35030 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36210A - BEARING (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-75001 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36201-35120 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 90363-28013 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-72001 |
KDN215,RZN215,TRN215,VZN215 厚さ=1.45,ﾏｰｸ 1 |
1 | ||
| 90520-72002 |
KDN215,RZN215,TRN215,VZN215 厚さ=1.50,ﾏｰｸ 2 |
1 | ||
| 90520-72004 |
KDN215,RZN215,TRN215,VZN215 厚さ=1.60,ﾏｰｸ 4 |
1 | ||
| 90520-72005 |
KDN215,RZN215,TRN215,VZN215 厚さ=1.65,ﾏｰｸ 5 |
1 | ||
| 90520-72003 |
KDN215,RZN215,TRN215,VZN215 厚さ=1.55,ﾏｰｸ 3 |
1 | ||
| 36213 - STOPPER, TRANSFER INPUT GEAR | ||||
| 36213-35020 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36213A - BALL (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90360-05012 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44003 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.10−2.15 |
1 | ||
| 90520-44011 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.50−2.55 |
1 | ||
| 90520-44008 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.35−2.40 |
1 | ||
| 90520-44016 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.75−2.80 |
1 | ||
| 90520-44010 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.45−2.50 |
1 | ||
| 90520-44014 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.65−2.70 |
1 | ||
| 90520-44005 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.20−2.25 |
1 | ||
| 90520-44004 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.15−2.20 |
1 | ||
| 90520-44012 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.55−2.60 |
1 | ||
| 90520-44006 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.25−2.30 |
1 | ||
| 90520-44007 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.30−2.35 |
1 | ||
| 90520-44017 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.80−2.85 |
1 | ||
| 90520-44018 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.85−2.90 |
1 | ||
| 90520-44021 |
KDN215,RZN215,TRN215,VZN215 厚さ=3.00−3.05 |
1 | ||
| 90520-44020 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.95−3.00 |
1 | ||
| 90520-44009 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.40−2.45 |
1 | ||
| 90520-44019 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.90−2.95 |
1 | ||
| 90520-44013 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.60−2.65 |
1 | ||
| 90520-44015 |
KDN215,RZN215,TRN215,VZN215 厚さ=2.70−2.75 |
1 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35011 |
KDN215,RZN215,TRN215,VZN215 |
2 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35011 |
KDN215,RZN215,TRN215,VZN215 |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-35050 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90560-28004 |
KDN215,TRN215,VZN215 厚さ=4.0 |
1 | ||
| 36231D - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 36275-35020 |
KDN215,TRN215,VZN215 |
2 | ||
| 36231D - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 36275-35020 |
KDN215,TRN215,VZN215 |
2 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
KDN215,RZN215,TRN215,VZN215 NO.1 |
1 | ||
| 90364-35009 |
KDN215,RZN215,TRN215,VZN215 NO.2 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
KDN215,RZN215,TRN215,VZN215 NO.1 |
1 | ||
| 90364-35009 |
KDN215,RZN215,TRN215,VZN215 NO.2 |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-82001 |
KDN215,RZN215,TRN215,VZN215 厚さ=1.65 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-32040 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-35030 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-35060 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36203-35020 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36248 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 | ||||
| 36248-35040 |
KDN215,RZN215,TRN215,VZN215 |
3 | ||
| 36248 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 | ||||
| 36248-35040 |
KDN215,RZN215,TRN215,VZN215 |
3 | ||
| 36248 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 | ||||
| 36248-35040 |
KDN215,RZN215,TRN215,VZN215 |
3 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-35030 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER) | ||||
| 90360-05012 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36256 - SPACER, TRANSFER OUTPUT SHAFT, NO.2 | ||||
| 36256-35030 |
KDN215,TRN215,VZN215 |
1 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-35040 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90364-47001 |
KDN215,RZN215,TRN215,VZN215 NO.1 |
1 | ||
| 90374-49001 |
KDN215,RZN215,TRN215,VZN215 NO.2 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90364-47001 |
KDN215,RZN215,TRN215,VZN215 NO.1 |
1 | ||
| 90374-49001 |
KDN215,RZN215,TRN215,VZN215 NO.2 |
1 | ||
| 36270B - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90520-99078 |
KDN215,RZN215,TRN215,VZN215 厚さ=6.0 |
1 | ||
| 36270C - RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARIN | ||||
| 90520-99072 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36273 - GEAR, TRANSFER LOW PLANETARY RING | ||||
| 36273-35030 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36273A - RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) | ||||
| 90520-29052 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36278 - WASHER, MANUAL TRANSFER PLANETARY CARRIER | ||||
| 36278-35020 |
KDN215,RZN215,TRN215,VZN215 厚さ=0.95−1.05 |
1 | ||
| 36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE | ||||
| 36284-35030 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-28010 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-37013 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-35050 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-32037 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-35040 |
KDN215,RZN215,TRN215,VZN215 |
1 | ||
| 36293-35031 |
KDN215,RZN215,VZN215 |
1 | ||
| 41311M - CASE, CENTER DIFFERENTIAL | ||||
| 41301-35140 |
KDN215,TRN215,VZN215 |
1 | ||
| 41331M - RING, HOLE SNAP(FOR CENTER DIFFERENTIAL PLANETARY RING | ||||
| 90520-99079 |
KDN215,TRN215,VZN215 |
1 | ||
