VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211-0508)VZN21#

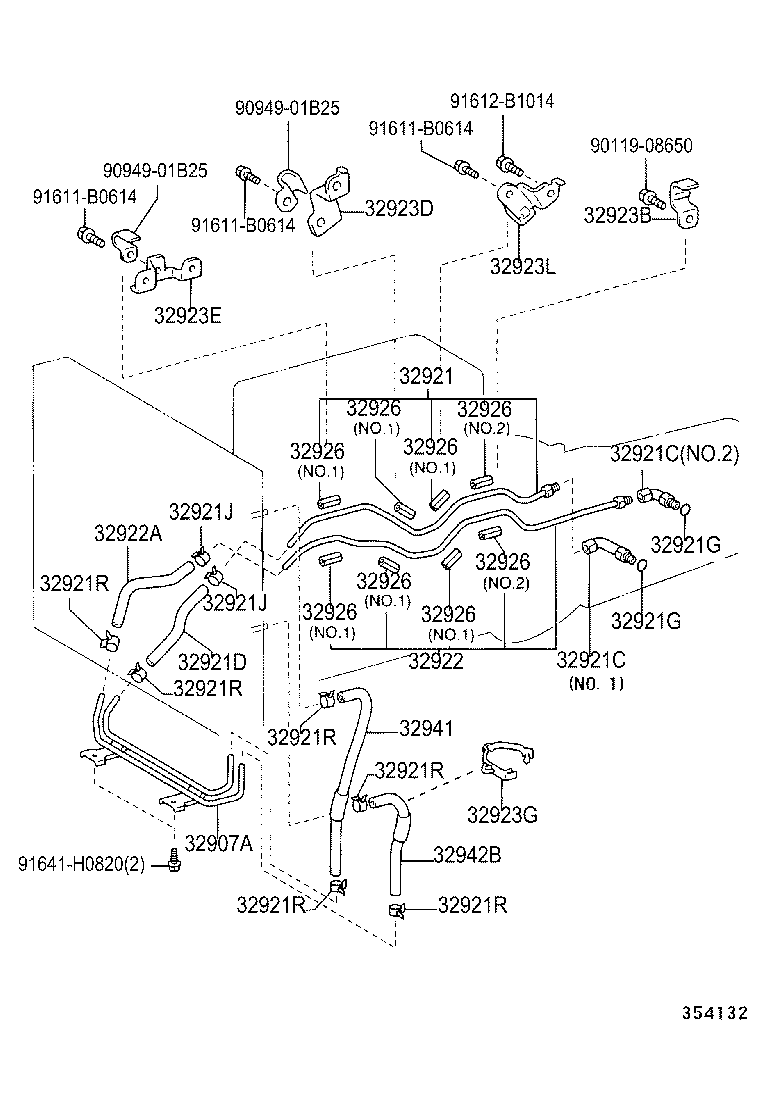

Click highlighted areas on diagram

A343E,A343F

diagram 32907A 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921R 32921R 32921R 32921R 32921R 32921R 32922 32922A 32923B 32923D 32923E 32923G 32923L 32926 32926 32926 32926 32926 32926 32926 32926 32941 32942B 9011908650 9094901B25 9094901B25 91611B0614 91611B0614 91611B0614 91612B1014 91641H0820
Part # Description Qty Price
32907A - TUBE, OIL COOLER
32907-60070

TRN21#,VZN21#

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-60310

VZN21#

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

KDN215,TRN21#,VZN21#

NO.2

 1
90407-16012

TRN21#,VZN21#

NO.1

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

KDN215,TRN21#,VZN21#

NO.2

 1
90407-16012

TRN21#,VZN21#

NO.1

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17106

VZN21#

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

KDN215,TRN21#,VZN21#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

KDN215,TRN21#,VZN21#

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022

KDN215,VZN21#

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022

KDN215,VZN21#

 2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022

RZN21#,TRN21#,VZN21#

 6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022

RZN21#,TRN21#,VZN21#

 6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022

RZN21#,TRN21#,VZN21#

 6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022

RZN21#,TRN21#,VZN21#

 6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022

RZN21#,TRN21#,VZN21#

 6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022

RZN21#,TRN21#,VZN21#

 6
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-60330

VZN21#

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-60400

VZN21#

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32929-24060

KDN215,TRN21#,VZN21#

 1
32923D - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5
32925-60150

VZN21#

 1
32923E - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.6
32925-60170

VZN21#

 1
32923G - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.8
32928-60100

KDN215,TRN21#,VZN21#

 1
32923L - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3
32909-34050

VZN21#

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

KDN215,VZN21#

長さ=35,内径=10,NO.2

 2
32926-30020

VZN21#

長さ=35,内径=10,NO.1

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

KDN215,VZN21#

長さ=35,内径=10,NO.2

 2
32926-30020

VZN21#

長さ=35,内径=10,NO.1

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

KDN215,VZN21#

長さ=35,内径=10,NO.2

 2
32926-30020

VZN21#

長さ=35,内径=10,NO.1

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

KDN215,VZN21#

長さ=35,内径=10,NO.2

 2
32926-30020

VZN21#

長さ=35,内径=10,NO.1

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

KDN215,VZN21#

長さ=35,内径=10,NO.2

 2
32926-30020

VZN21#

長さ=35,内径=10,NO.1

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

KDN215,VZN21#

長さ=35,内径=10,NO.2

 2
32926-30020

VZN21#

長さ=35,内径=10,NO.1

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

KDN215,VZN21#

長さ=35,内径=10,NO.2

 2
32926-30020

VZN21#

長さ=35,内径=10,NO.1

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

KDN215,VZN21#

長さ=35,内径=10,NO.2

 2
32926-30020

VZN21#

長さ=35,内径=10,NO.1

 6
32941 - HOSE, OIL COOLER INLET, NO.1
32941-60280

TRN21#,VZN21#

 1
32942B - HOSE, OIL COOLER OUTLET, NO.3
32942-60390

TRN21#,VZN21#

 1
Common parts
90119-08650
90949-01B25
91611-B0614
91612-B1014
91641-H0820
