VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211-0508)VZN21#

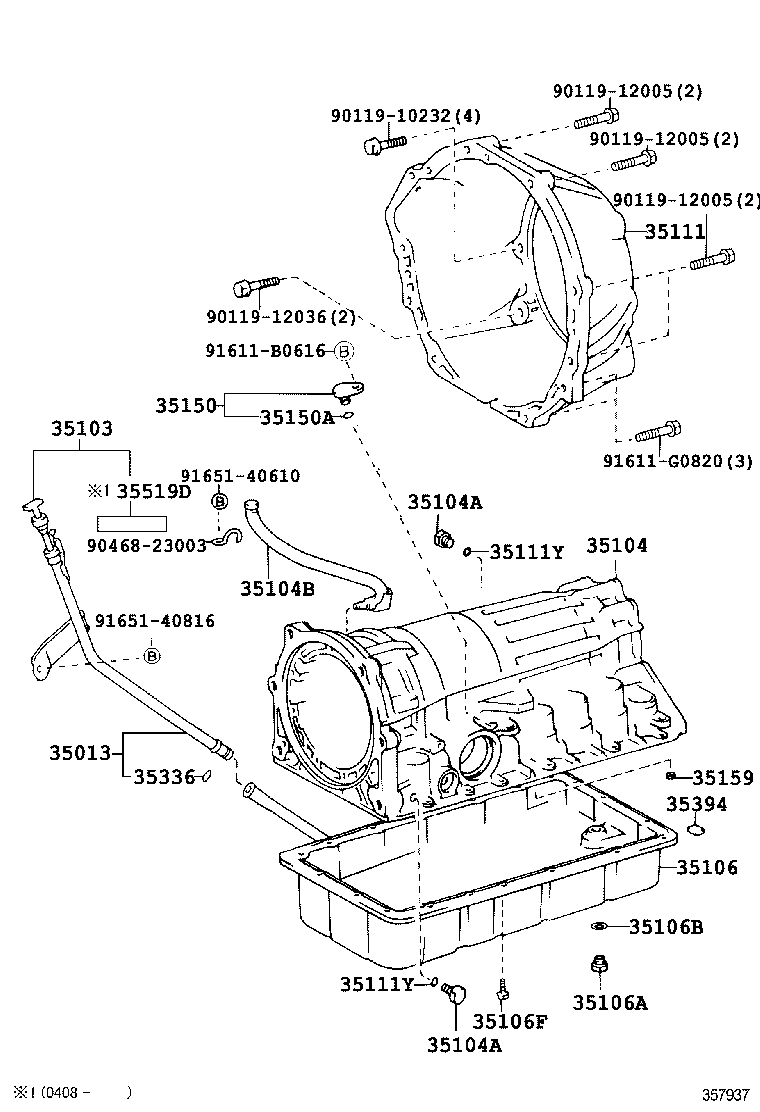

Click highlighted areas on diagram

A343E,A343F

diagram 35013 35103 35104 35104A 35104A 35104B 35106 35106A 35106B 35106F 35111 35111Y 35111Y 35150 35150A 35159 35336 35394 35519D 9011910232 9011912005 9011912005 9011912005 9011912036 9046823003 91611B0616 91611G0820 9165140610 9165140816
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-60230

VZN21#

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-60160

VZN21#

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-35020

RZN21#,VZN21#

 1
35104-35021

TRN21#,VZN21#

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

KDN215,RZN21#,TRN21#,VZN21#

 2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

KDN215,RZN21#,TRN21#,VZN21#

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03116

VZN21#

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-35110

VZN21#

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10011

KDN215,RZN21#,TRN21#,VZN21#

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-50010

KDN215,RZN21#,VZN21#

 1
35178-30010

KDN215,VZN21#

 1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06513

KDN215,VZN21#

 19
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-35060

VZN21#

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

KDN215,TRN21#,VZN21#

 2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

KDN215,TRN21#,VZN21#

 2
35150 - PLUG ASSY, TRANSMISSION CASE
35150-30010

KDN215,TRN21#,VZN21#

 1
35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
90301-09012

KDN215,TRN21#,VZN21#

 1
35159 - GASKET, BRAKE DRUM
35159-30010

KDN215,VZN21#

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

VZN21#

 1
90301-09011

VZN21#

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

KDN215,VZN21#

 3
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-30010

VZN21#

 1
Common parts
90119-10232
90119-12005
90119-12036
90468-23003
91611-B0616
91611-G0820
91651-40610
91651-40816
