VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

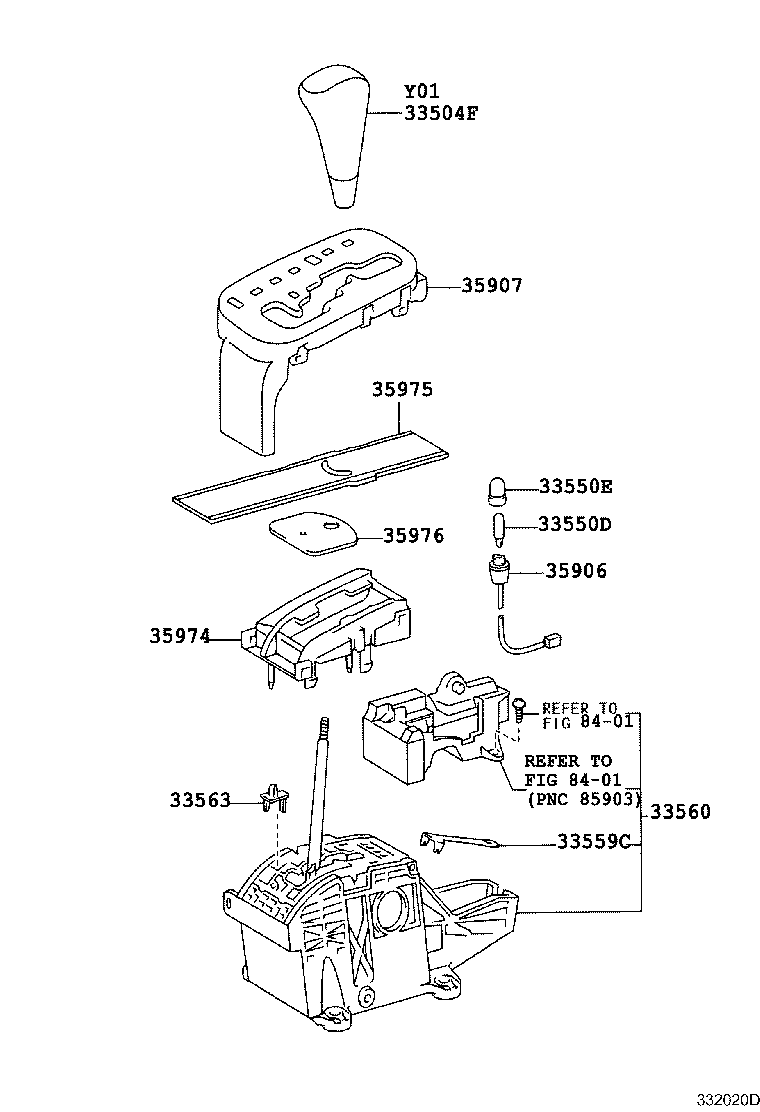

ILLUST NO. 1 OF 2(0211- )

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33559C 33560 33563 35906 35907 35974 35975 35976 8401 8401
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-35070C0

TRN215,VZN215..SSRX

20周年ｱﾆﾊﾞｰｻﾘｰ ﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#

 1
33504-35050C0

KDN215,RZN21#,TRN21#,VZN21#

BLACK,TRIM1#,4#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11014

KDN215,TRN21#,VZN21#

14V 1.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-04074

KDN215,TRN21#,VZN21#

 1
33559C - DAMPER, SHIFT LEVER SPRING
33559-60010

KDN215,TRN21#,VZN21#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-35010

KDN215,TRN21#,VZN21#

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-35090

KDN215,TRN21#,VZN21#

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-35110

KDN215,TRN21#,VZN21#

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-35200

KDN215,TRN21#,VZN21#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-35150

KDN215,TRN21#,VZN21#

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-35140

KDN215,TRN21#,VZN21#

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-35090

KDN215,TRN21#,VZN21#

 1
Linked diagrams
8401

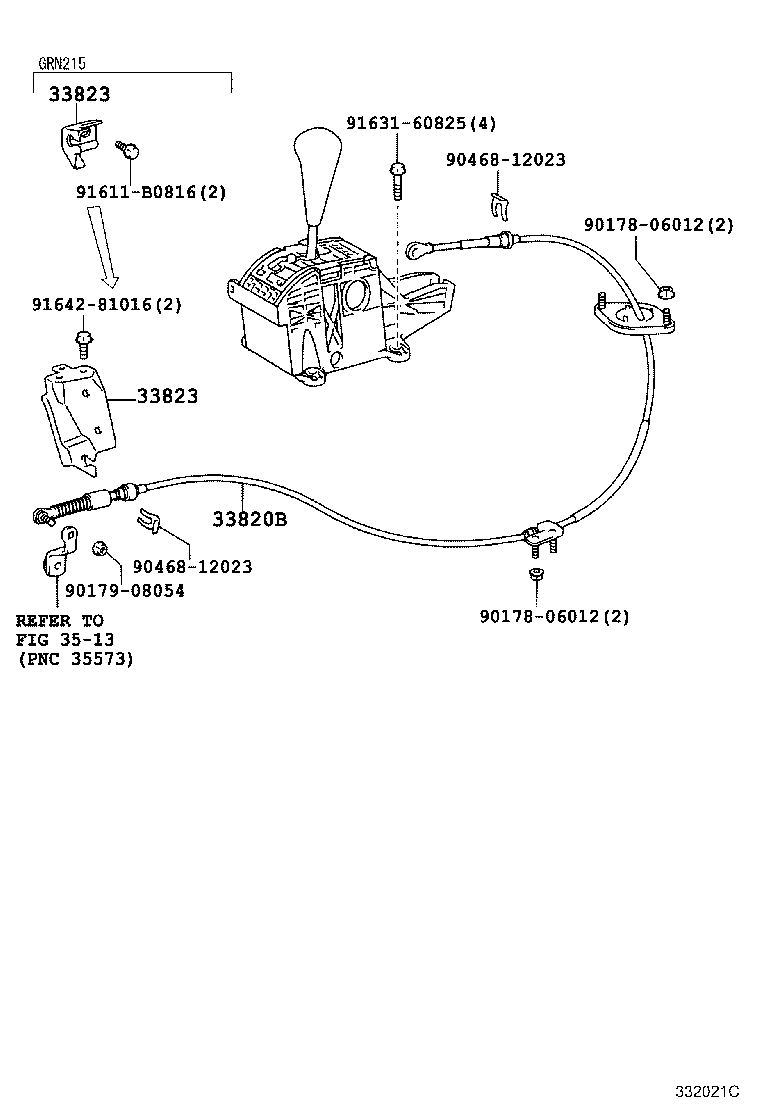

ILLUST NO. 2 OF 2(0211- )

Click highlighted areas on diagram

diagram 33820B 33823 33823 3513 9017806012 9017806012 9017908054 9046812023 9046812023 91611B0816 9163160825 9164281016
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-60030

VZN21#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-60010

KDN215,TRN21#,VZN21#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-60010

KDN215,TRN21#,VZN21#

 1
Common parts
90178-06012
90179-08054
90468-12023
91611-B0816
91631-60825
91642-81016
Linked diagrams
3513
