VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )5VZFE

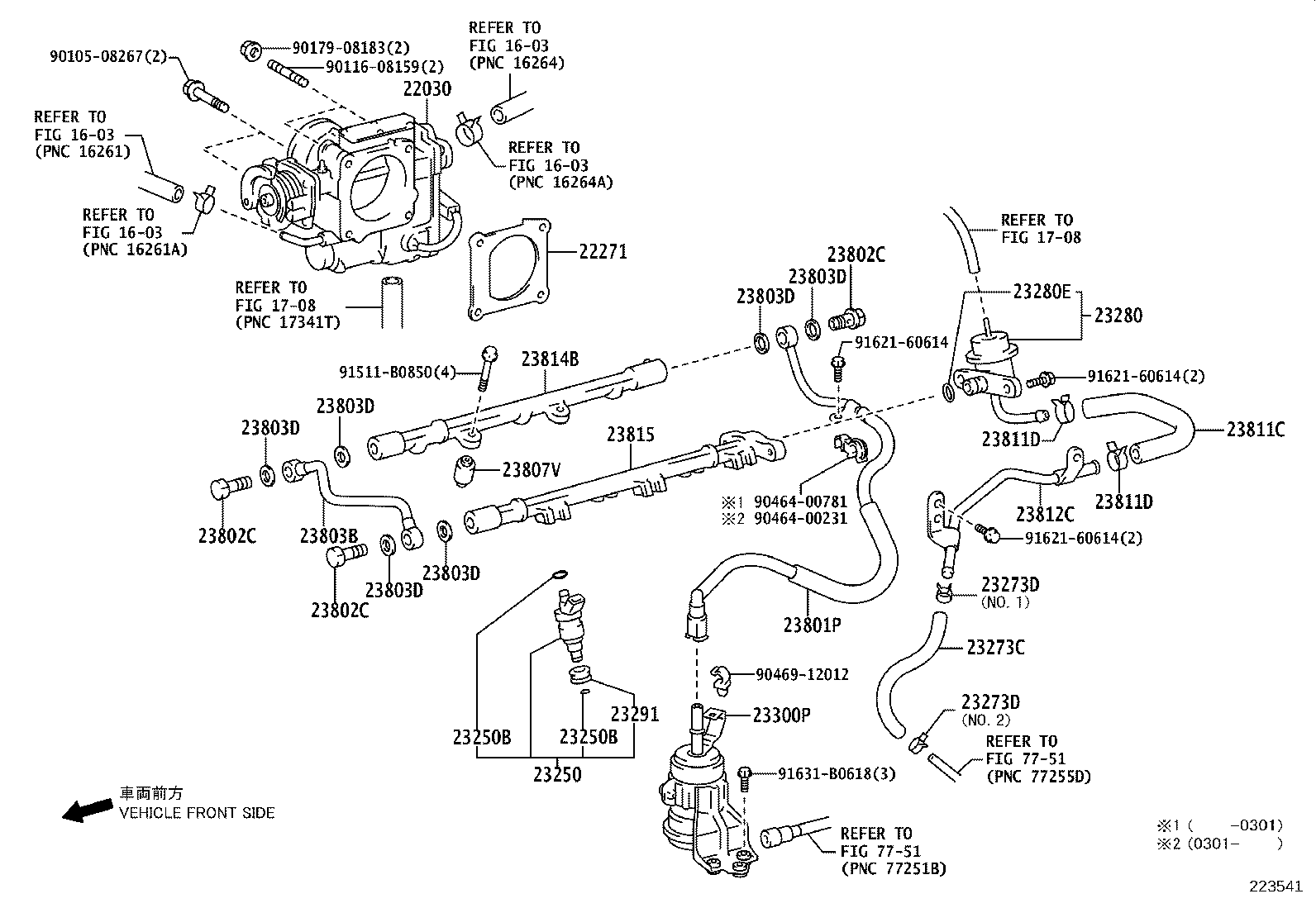

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1708 1708 22030 22271 23250 23250B 23250B 23273C 23273D 23273D 23280 23280E 23291 23300P 23801P 23802C 23802C 23802C 23803B 23803D 23803D 23803D 23803D 23803D 23803D 23807V 23811C 23811D 23811D 23812C 23814B 23815 7751 7751 9010508267 9011608159 9017908183 9046400231 9046400781 9046912012 91511B0850 9162160614 9162160614 9162160614 91631B0618
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-62020

5VZFE..VZN21#

 1
22271 - GASKET, THROTTLE BODY
22271-62050

5VZFE..VZN21#

 1
23250 - INJECTOR ASSY, FUEL
23209-62040

5VZFE..VZN21#

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

5VZFE..VZN21#

 12
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

5VZFE..VZN21#

 12
23273C - HOSE, FUEL, NO.2
95337-06022

5VZFE..VZN21#

 1
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-51100

5VZFE..VZN21#

NO.2

 1
96132-51100

5VZFE..VZN21#

NO.1

 1
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-51100

5VZFE..VZN21#

NO.2

 1
96132-51100

5VZFE..VZN21#

NO.1

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-62030

5VZFE..VZN21#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07024

5VZFE..VZN21#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-20010

5VZFE..VZN21#

 6
23300P - FILTER, FUEL(FOR EFI)
23300-31090

5VZFE..VZN21#

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-62130

5VZFE..VZN21#

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12036

5VZFE..VZN21#

 3
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12036

5VZFE..VZN21#

 3
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12036

5VZFE..VZN21#

 3
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-62010

5VZFE..VZN21#

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZN21#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZN21#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZN21#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZN21#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZN21#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZN21#

 6
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08020

5VZFE..VZN21#

 4
23811C - HOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
95333-06020

5VZFE..VZN21#

*H,L=190

 1
23811D - CLIP, HOSE(FOR FUEL HOSE)
90467-11065

5VZFE..VZN21#

 2
23811D - CLIP, HOSE(FOR FUEL HOSE)
90467-11065

5VZFE..VZN21#

 2
23812C - PIPE, FUEL, NO.2
23812-62041

5VZFE..VZN21#

 1
23814B - PIPE, FUEL DELIVERY
23814-62051

5VZFE..VZN21#

 1
23814-62050

5VZFE..VZN21#

 1
23815 - PIPE, FUEL DELIVERY, NO.2
23815-62050

5VZFE..VZN21#

 1
23815-62051

5VZFE..VZN21#

 1
Common parts
90105-08267
90116-08159
90179-08183
90464-00231
90464-00781
90469-12012
91511-B0850
91621-60614
91631-B0618
