VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211-0508)5VZFE

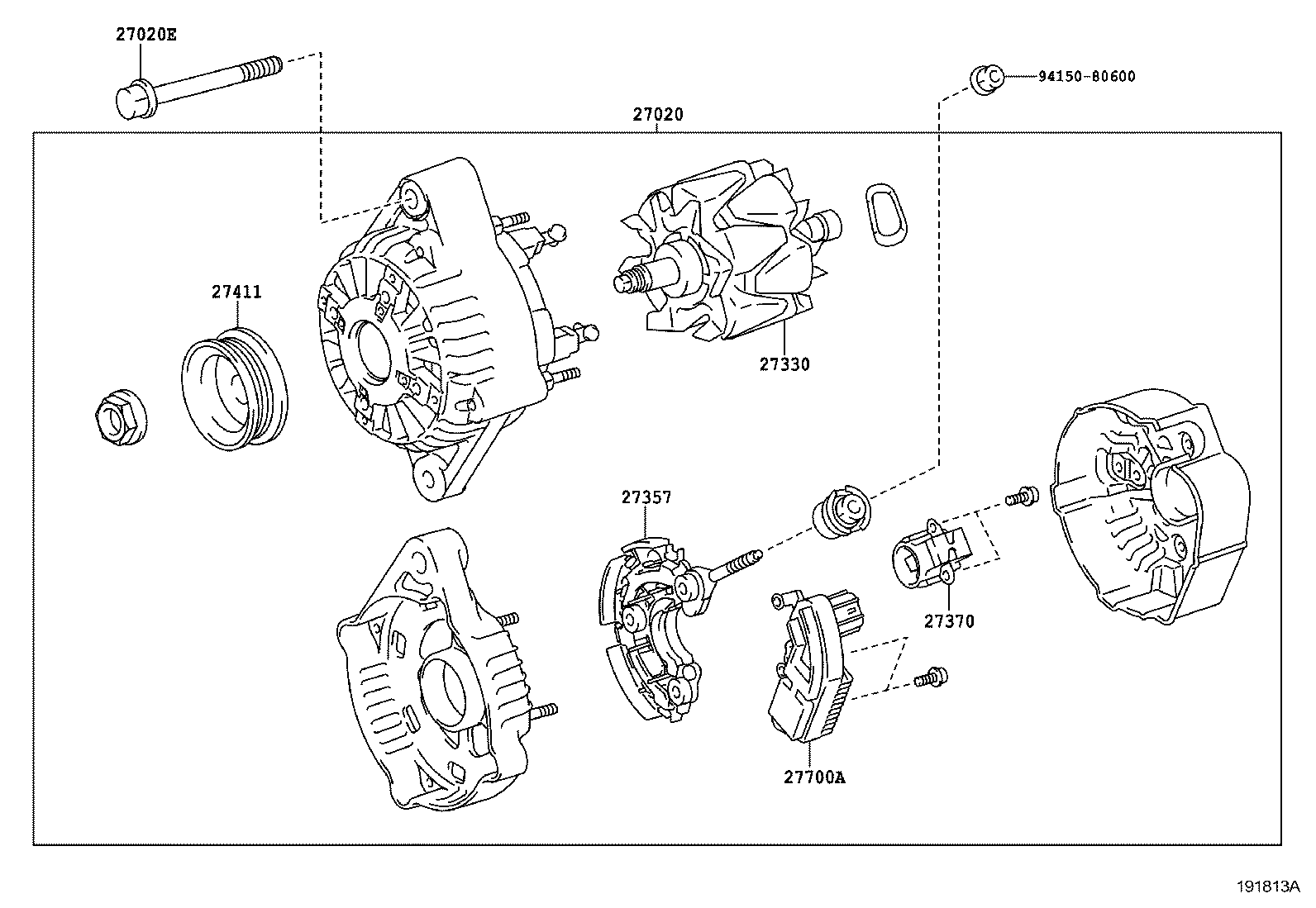

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27330 27357 27370 27411 27700A 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-62240

5VZFE..VZN21#

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10101

5VZFE..VZN21#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-62220

1KDFTV,3RZFE,2TRFE,5VZFE..KDN215,RZN21#,TRN21#,VZN21#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22200

1KDFTV,2TRFE,5VZFE..KDN215,TRN21#,VZN21#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

 1
27411 - PULLEY, ALTERNATOR
27411-70261

5VZFE..VZN21#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-50040

1KDFTV,5VZFE..KDN215,VZN21#

 1
Common parts
94150-80600
