VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )5VZFE

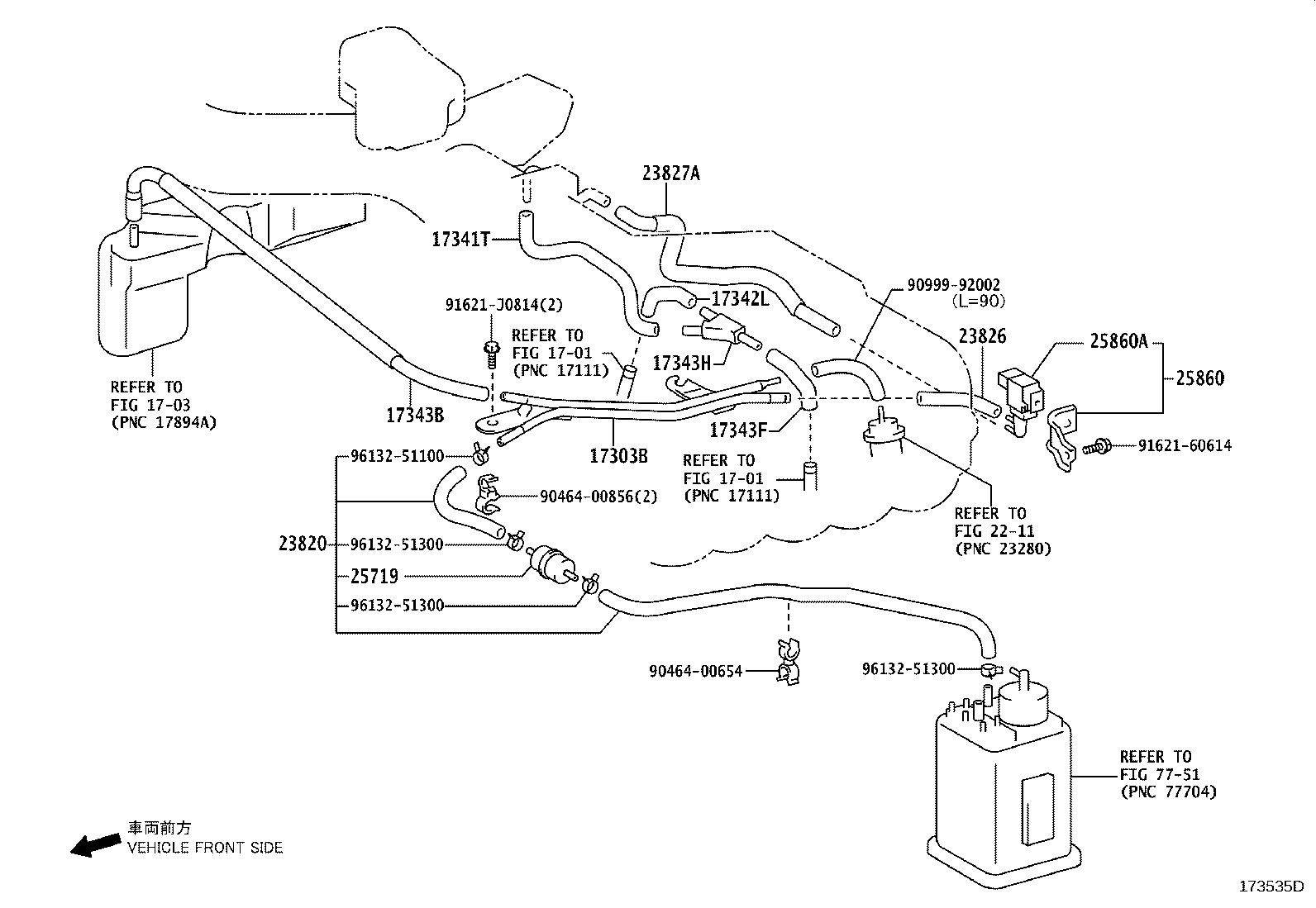

Click highlighted areas on diagram

diagram 1701 1701 1703 17303B 17341T 17342L 17343B 17343F 17343H 2211 23820 23826 23827A 25719 25860 25860A 7751 9046400654 9046400856 9099992002 9162160614 91621J0814 9613251100 9613251300 9613251300 9613251300
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-62031

5VZFE..VZN21#

 1
17341T - HOSE, AIR, NO.1
17341-62100

5VZFE..VZN21#

 1
17342L - HOSE, AIR, NO.2
17342-62080

5VZFE..VZN21#

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-62120

5VZFE..VZN21#

 1
17343F - HOSE, AIR, NO.3
17343-62080

5VZFE..VZN21#

 1
17343H - WAY, 3(FOR AIR HOSE)
90904-13015

5VZFE..VZN21#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-62050

5VZFE..VZN21#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-62030

5VZFE..VZN21#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-62110

5VZFE..VZN21#

 1
25719 - TANK, VACUUM SURGE
25719-50040

5VZFE..VZN21#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-62110

5VZFE..VZN21#

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12149

5VZFE..VZN21#

 1
Common parts
90464-00654
90464-00856
90999-92002
91621-60614
91621-J0814
96132-51100
96132-51300
