VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )3RZFE,5VZFE

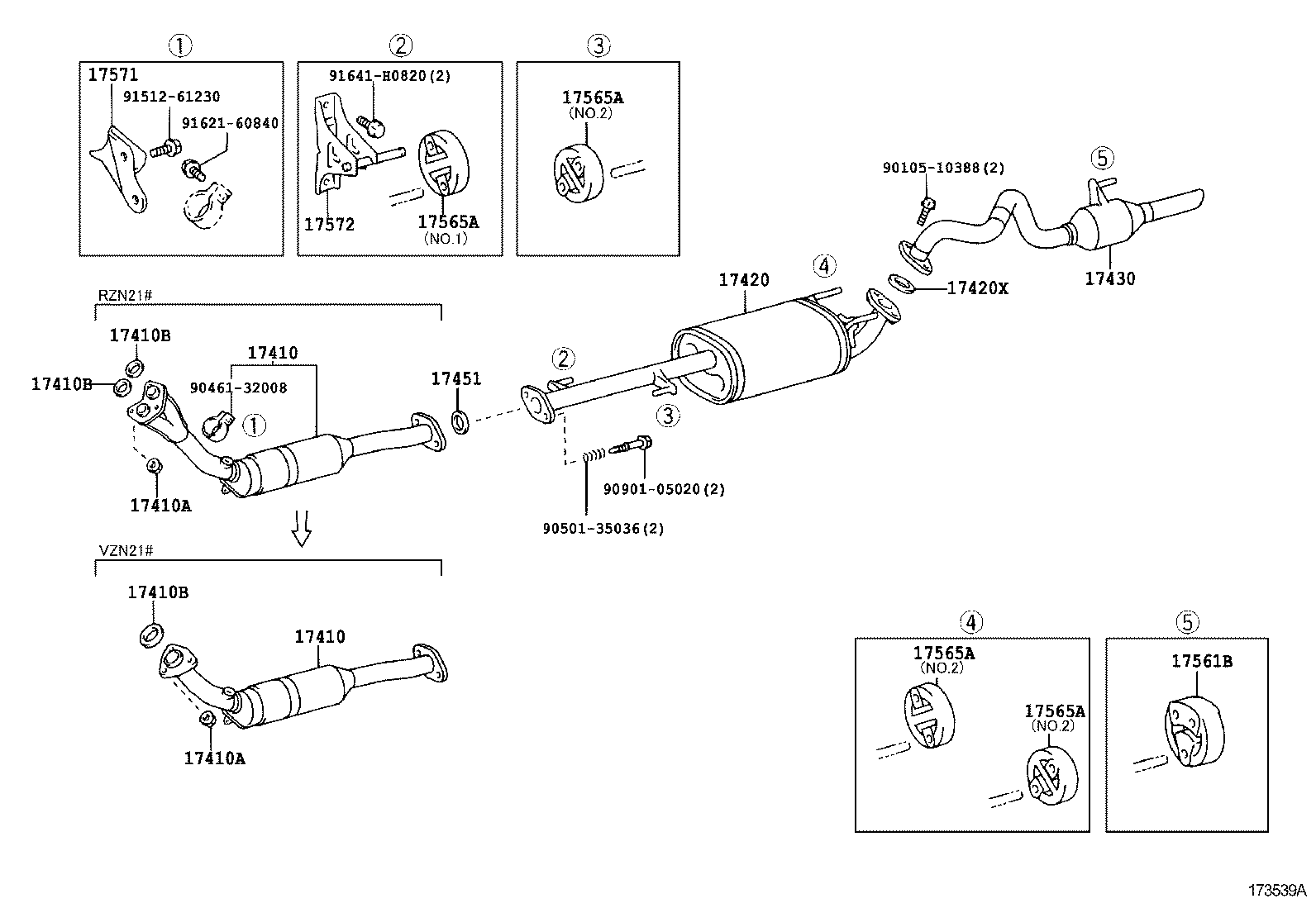

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410B 17420 17420X 17430 17451 17561B 17565A 17565A 17565A 17565A 17571 17572 9010510388 9046132008 9050135036 9090105020 9151261230 9162160840 91641H0820
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-62180

5VZFE..VZN21#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-62180

5VZFE..VZN21#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1KDFTV,5VZFE..KDN215,VZN21#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1KDFTV,5VZFE..KDN215,VZN21#

 3
17410B - GASKET, EXHAUST PIPE
90917-06086

5VZFE..VZN21#

 1
17410B - GASKET, EXHAUST PIPE
90917-06086

5VZFE..VZN21#

 1
17410B - GASKET, EXHAUST PIPE
90917-06086

5VZFE..VZN21#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-62310

5VZFE..VZN21#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06072

1KDFTV,5VZFE..KDN215,VZN21#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-50220

2TRFE,5VZFE..TRN21#,VZN21#

 1
17451 - GASKET, EXHAUST PIPE
17451-74051

1KDFTV,5VZFE..KDN215,VZN21#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

2TRFE,5VZFE..TRN21#,VZN21#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-46040

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.1

 1
17565-46040

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.2

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-46040

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.1

 1
17565-46040

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.2

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-46040

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.1

 1
17565-46040

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.2

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-46040

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.1

 1
17565-46040

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.2

 3
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-50140

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

 1
Common parts
90105-10388
90461-32008
90501-35036
90901-05020
91512-61230
91621-60840
91641-H0820
