VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0211- )5VZFE

Click highlighted areas on diagram

diagram 1201 1603 1603 1708 1708 1708 17106 17106A 17106A 17111 17125 17129 17141 17142B 17159 17159 17173 17173 17176 17176A 17177 17177 17861F 8401 8404 8404 8716 9010508185 9011610149 9011610149 9011910684 9017910070 9017910070 9017910070 9033903002 9151160816
Part # Description Qty Price
17106 - PIPE SUB-ASSY, EXHAUST CROSSOVER
17106-62030

5VZFE..VZN21#

 1
17106A - GASKET, EXHAUST PIPE
90917-06083

5VZFE..VZN21#

 2
17106A - GASKET, EXHAUST PIPE
90917-06083

5VZFE..VZN21#

 2
17111 - MANIFOLD, INTAKE
17101-62020

5VZFE..VZN21#

 1
17125 - STAY, SURGE TANK, NO.1
17125-62041

5VZFE..VZN21#

 1
17129 - TANK, INTAKE AIR SURGE
17109-62090

5VZFE..VZN21#

 1
17109-62100

5VZFE..VZN21#

 1
17141 - MANIFOLD, EXHAUST
17141-62110

5VZFE..VZN21#

 1
17142B - MANIFOLD, EXHAUST, LH
17142-62110

5VZFE..VZN21#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251

5VZFE..VZN21#

NO.1

 4
90116-10150

5VZFE..VZN21#

NO.2

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251

5VZFE..VZN21#

NO.1

 4
90116-10150

5VZFE..VZN21#

NO.2

 12
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-62060

5VZFE..VZN21#

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-62060

5VZFE..VZN21#

 2
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-62040

5VZFE..VZN21#

 1
17176A - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD, NO.2
17176-62040

5VZFE..VZN21#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-62060

5VZFE..VZN21#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-62060

5VZFE..VZN21#

 2
17861F - CONNECTOR, INTAKE AIR
17861-62012

5VZFE..VZN21#

 1
Common parts
90105-08185
90116-10149
90119-10684
90179-10070
90339-03002
91511-60816
Linked diagrams
1201
1603
1708
8401
8404
8716

ILLUST NO. 2 OF 2(0211- )5VZFE

Click highlighted areas on diagram

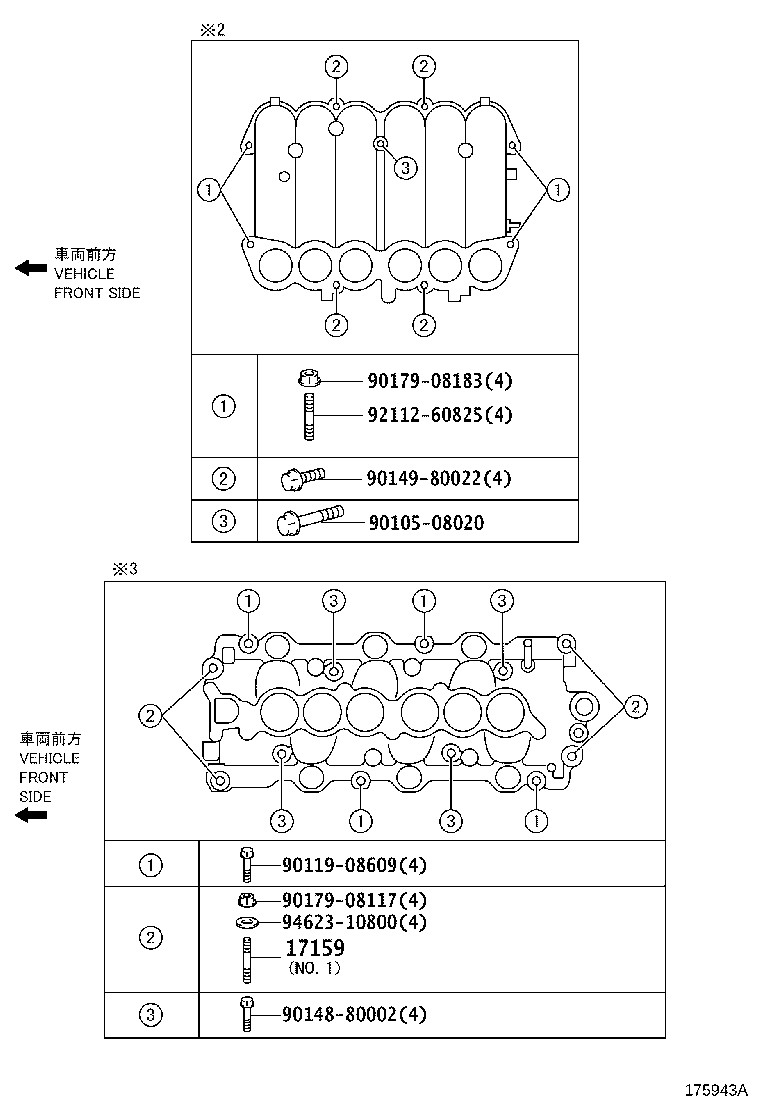

diagram 17159 9010508020 9011908609 9014880002 9014980022 9017908117 9017908183 9211260825 9462310800
Part # Description Qty Price
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251

5VZFE..VZN21#

NO.1

 4
90116-10150

5VZFE..VZN21#

NO.2

 12
Common parts
90105-08020
90119-08609
90148-80002
90149-80022
90179-08117
90179-08183
92112-60825
94623-10800
