VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

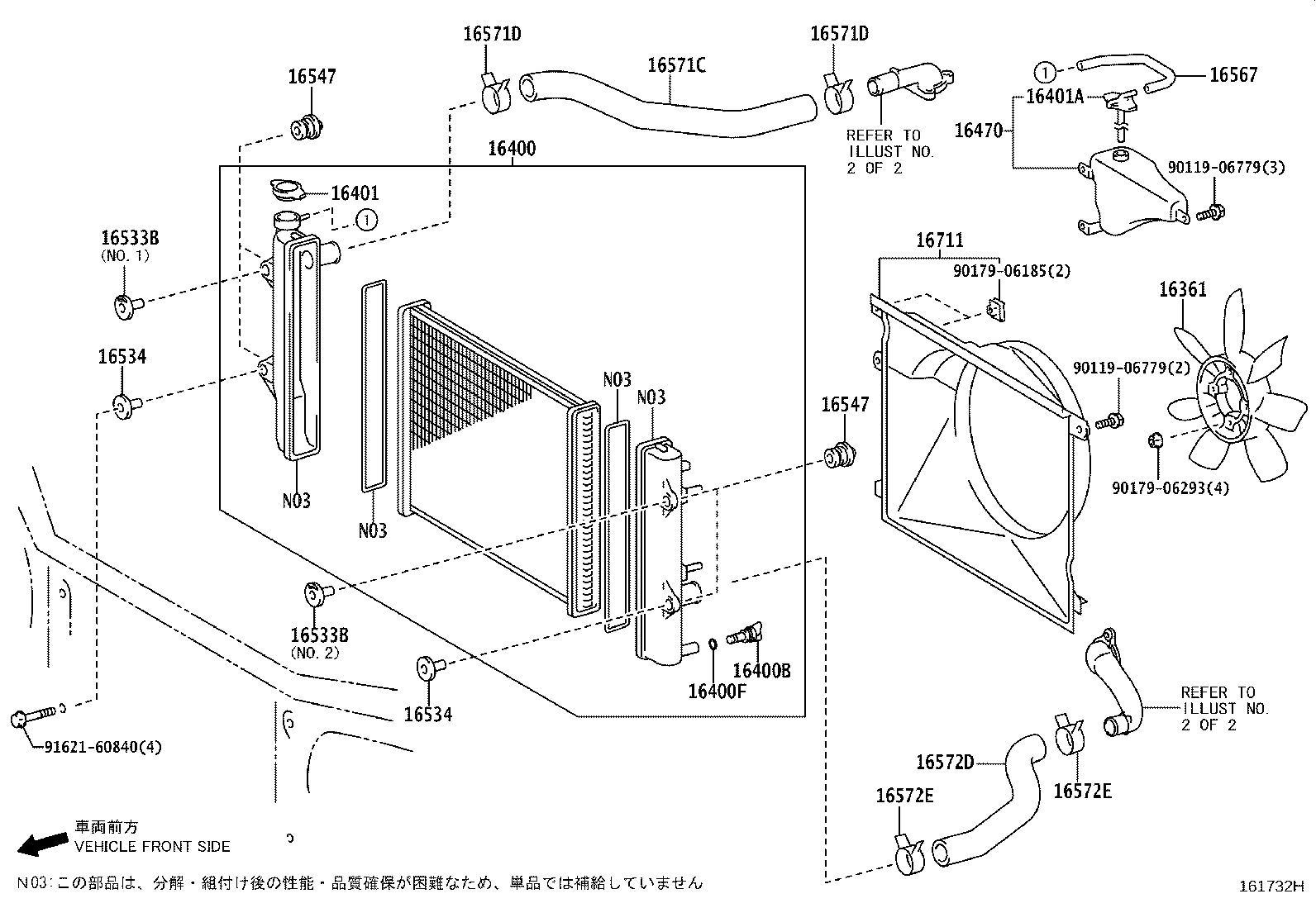

ILLUST NO. 1 OF 2(0211- )5VZFE

Click highlighted areas on diagram

diagram 16361 16400 16400B 16400F 16401 16401A 16470 16533B 16533B 16534 16534 16547 16547 16567 16571C 16571D 16571D 16572D 16572E 16572E 16711 9011906779 9011906779 9017906185 9017906293 9162160840
Part # Description Qty Price
16361 - FAN
16361-62010

5VZFE..VZN21#

 1
16400 - RADIATOR ASSY
16400-62231

5VZFE..VZN21#

 1
16400-62230

5VZFE..VZN21#

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

5VZFE..VZN21#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

5VZFE..VZN21#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-75440

5VZFE..VZN21#

 1
16401-5B630

5VZFE..VZN21#

 1
16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK
16405-50051

5VZFE..VZN21#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-50140

5VZFE..VZN21#

 1
16533B - SUPPORT, RADIATOR, NO.1
16533-50090

5VZFE..VZN21#

NO.1

 1
16534-50050

5VZFE..VZN21#

NO.2

 1
16533-50090

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.1

 1
16534-50050

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.2

 1
16533B - SUPPORT, RADIATOR, NO.1
16533-50090

5VZFE..VZN21#

NO.1

 1
16534-50050

5VZFE..VZN21#

NO.2

 1
16533-50090

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.1

 1
16534-50050

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.2

 1
16534 - SUPPORT, RADIATOR, NO.2
16534-50050

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

 2
16534-50050

5VZFE..VZN21#

 2
16534 - SUPPORT, RADIATOR, NO.2
16534-50050

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

 2
16534-50050

5VZFE..VZN21#

 2
16547 - BUSH, RADIATOR SUPPORT, NO.1
16547-50010

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

 4
16547-50010

5VZFE..VZN21#

 4
16547 - BUSH, RADIATOR SUPPORT, NO.1
16547-50010

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

 4
16547-50010

5VZFE..VZN21#

 4
16567 - HOSE(FOR RADIATOR RESERVE TANK)
16567-31010

5VZFE..VZN21#

 1
16571C - HOSE, RADIATOR, NO.1
16571-62090

5VZFE..VZN21#

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90467-37005

5VZFE..VZN21#

 2
16571D - CLIP, RADIATOR HOSE, NO.1
90467-37005

5VZFE..VZN21#

 2
16572D - HOSE, RADIATOR, NO.2
16572-62110

5VZFE..VZN21#

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90467-37005

5VZFE..VZN21#

 2
16572E - CLIP, RADIATOR HOSE, NO.2
90467-37005

5VZFE..VZN21#

 2
16711 - SHROUD, FAN
16711-62080

5VZFE..VZN21#

 1
Common parts
90119-06779
90179-06185
90179-06293
91621-60840

ILLUST NO. 2 OF 2(0211- )5VZFE

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16268 16321 16325 16331 16331A 16341 16381 16385 1701 2211 8716 9011606119 9011606127 9011908493 9011910038 9017906080 9017906299 9017908183 9017908183 9162160614
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-62070

5VZFE..VZN21#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300

5VZFE..VZN21#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300

5VZFE..VZN21#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-62040

5VZFE..VZN21#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-51300

5VZFE..VZN21#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-51300

5VZFE..VZN21#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-62060

5VZFE..VZN21#

 1
16321 - INLET, WATER
16321-62020

5VZFE..VZN21#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010

5VZFE..VZN21#

 1
16331 - OUTLET, WATER
16331-62040

5VZFE..VZN21#

 1
16331A - THERMOSTAT
90916-03075

5VZFE..VZN21#

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-62040

5VZFE..VZN21#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-62041

5VZFE..VZN21#

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-62020

5VZFE..VZN21#

 1
Common parts
90116-06119
90116-06127
90119-08493
90119-10038
90179-06080
90179-06299
90179-08183
91621-60614
Linked diagrams
1701
2211
8716
