VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )5VZFE

Click highlighted areas on diagram

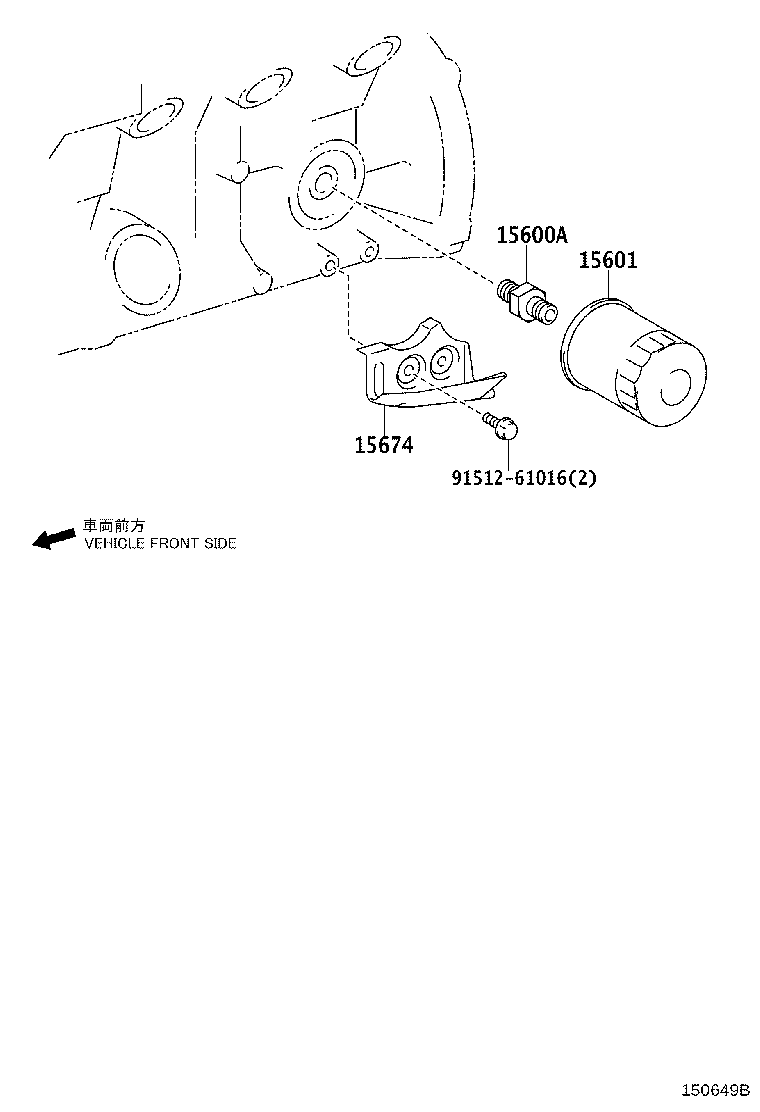

diagram 15600A 15601 15674 9151261016
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19013

5VZFE..VZN21#

 1
15601 - FILTER SUB-ASSY, OIL
90915-20003

5VZFE..VZN21#

 1
15674 - RECEIVER, OIL FILTER
15674-62020

5VZFE..VZN21#

 1
Common parts
91512-61016
