VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )5VZFE

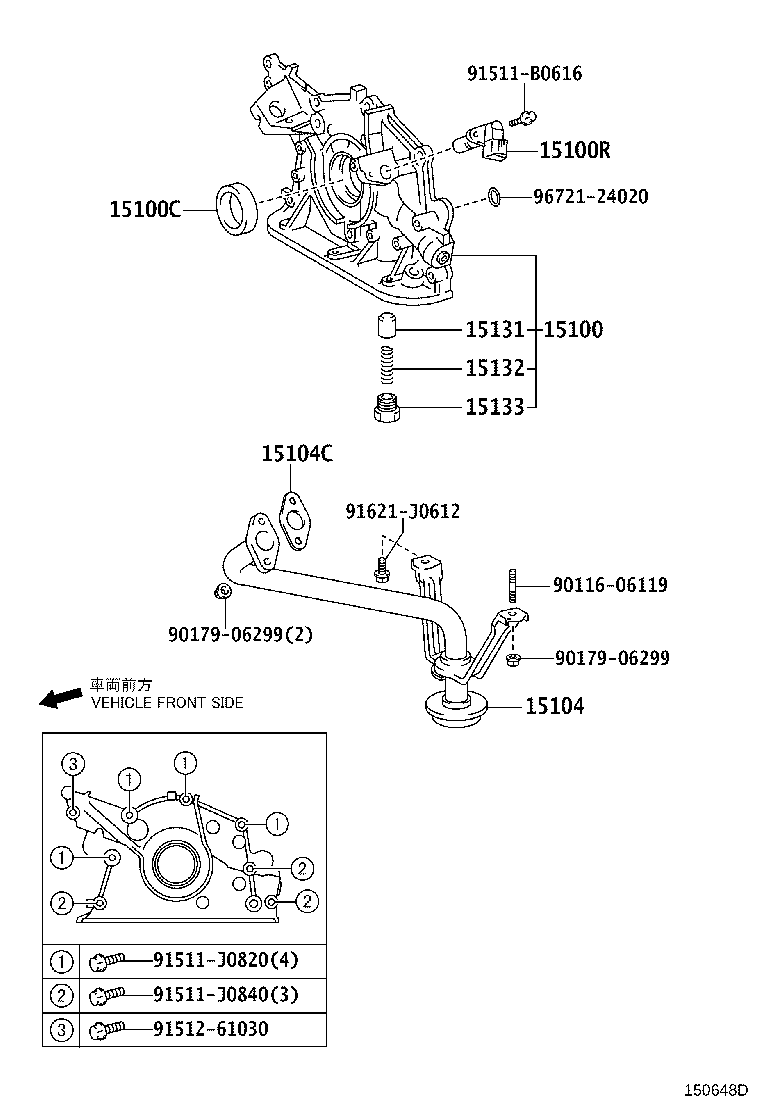

Click highlighted areas on diagram

diagram 15100 15100C 15100R 15104 15104C 15131 15132 15133 9011606119 9017906299 9017906299 91511B0616 91511J0820 91511J0840 9151261030 91621J0612 9672124020
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-62040

5VZFE..VZN21#

 1
15100C - SEAL(FOR OIL PUMP)
90311-40022

5VZFE..VZN21#

 1
15100R - SENSOR, CRANK POSITION
90919-05020

5VZFE..VZN21#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-62080

5VZFE..VZN21#

 1
15104C - GASKET(FOR OIL STRAINER)
15147-62020

5VZFE..VZN21#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

5VZFE..VZN21#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-20020

5VZFE..VZN21#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-24010

5VZFE..VZN21#

 1
Common parts
90116-06119
90179-06299
91511-B0616
91511-J0820
91511-J0840
91512-61030
91621-J0612
96721-24020
