VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )5VZFE

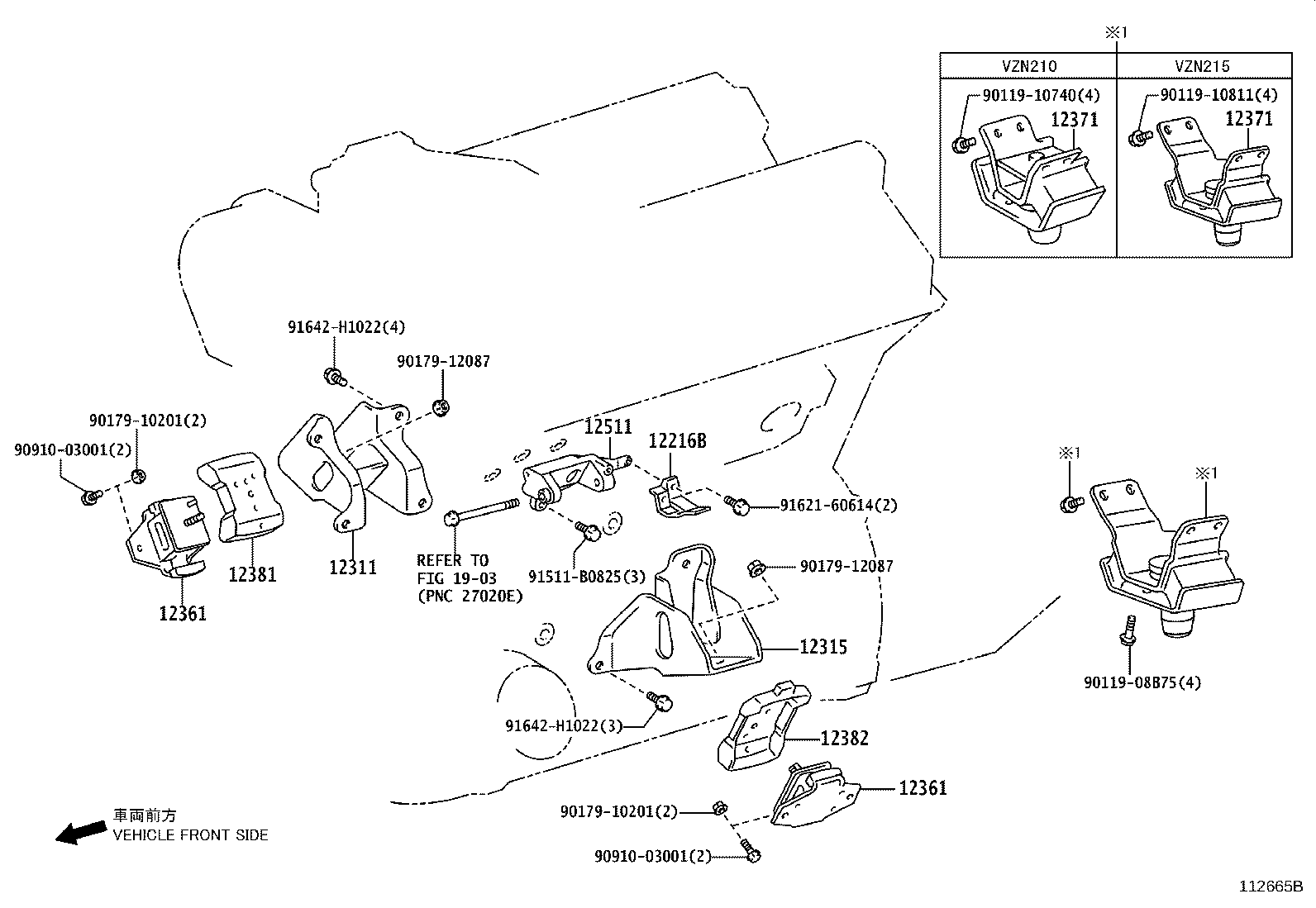

Click highlighted areas on diagram

diagram 12216B 12311 12315 12361 12361 12371 12371 12381 12382 12511 1903 9011908B75 9011910740 9011910811 9017910201 9017910201 9017912087 9017912087 9091003001 9091003001 91511B0825 9162160614 91642H1022 91642H1022
Part # Description Qty Price
12216B - PLATE, OIL BAFFLE
12216-62030

5VZFE..VZN21#

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-62070

5VZFE..VZN21#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-62080

5VZFE..VZN21#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62160

5VZFE..VZN21#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62160

5VZFE..VZN21#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-31050

5VZFE..VZN215

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-31050

5VZFE..VZN215

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-62020

5VZFE..VZN21#

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12382-62010

5VZFE..VZN21#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-62010

5VZFE..VZN21#

 1
Common parts
90119-08B75
90119-10740
90119-10811
90179-10201
90179-12087
90910-03001
91511-B0825
91621-60614
91642-H1022
Linked diagrams
1903
