VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

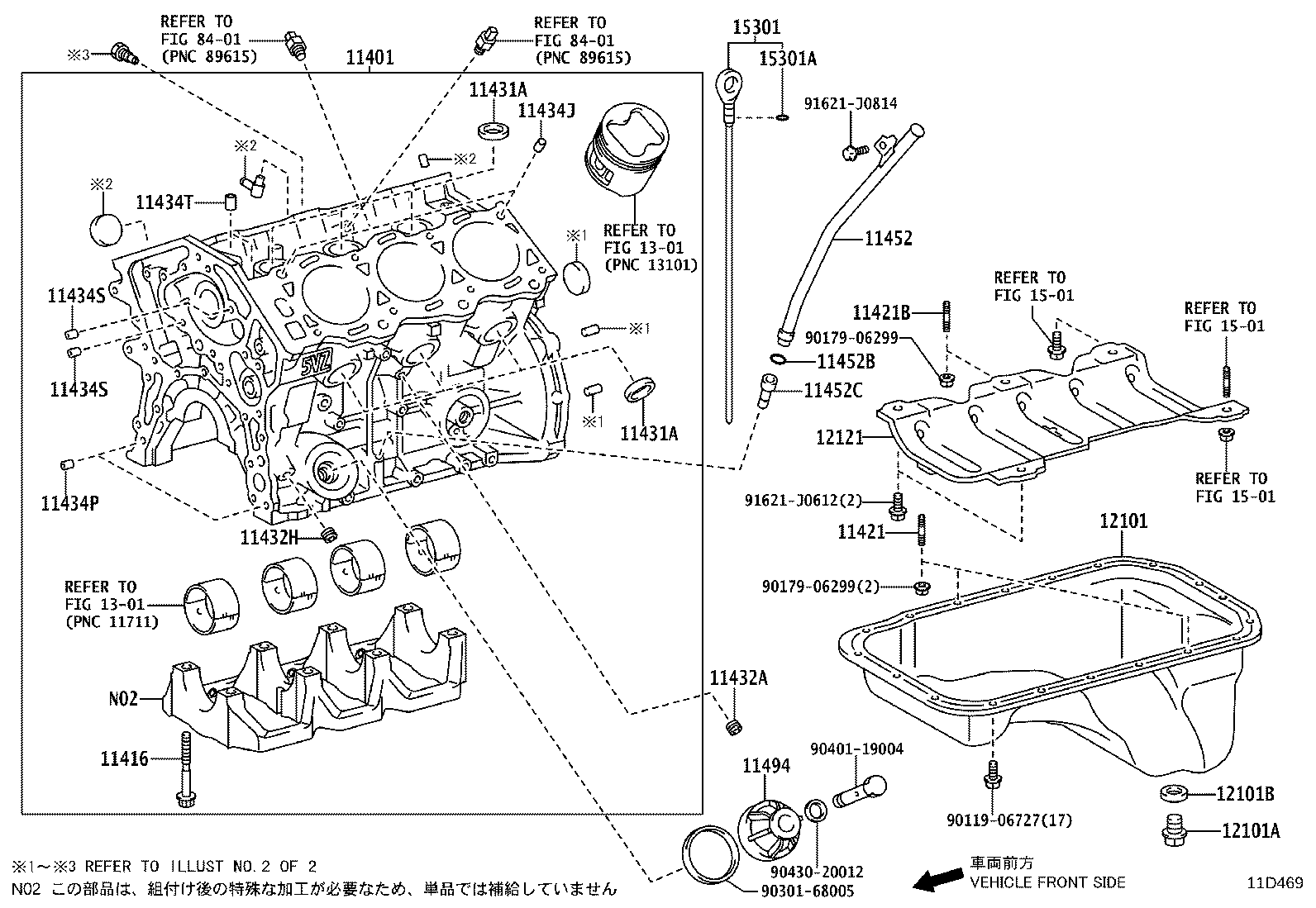

ILLUST NO. 1 OF 2(0211- )5VZFE

Click highlighted areas on diagram

diagram 11401 11416 11421 11421B 11431A 11431A 11432A 11432H 11434J 11434P 11434S 11434S 11434T 11452 11452B 11452C 11494 12101 12101A 12101B 12121 1301 1301 1501 1501 1501 15301 15301A 8401 8401 9011906727 9017906299 9017906299 9030168005 9040119004 9043020012 91621J0612 91621J0814
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69985

5VZFE..VZN21#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02072

5VZFE..VZN21#

 8
11421 - BOLT, STUD(FOR OIL PAN)
90116-06119

5VZFE..VZN21#

 2
11421B - BOLT, STUD(FOR OIL PAN BAFFLE PLATE)
90116-06119

5VZFE..VZN21#

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-35005

5VZFE..VZN21#

 11
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-35005

5VZFE..VZN21#

 11
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53015

5VZFE..VZN21#

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53015

5VZFE..VZN21#

 1
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-16001

5VZFE..VZN21#

 4
11434P - PIN, STRAIGHT(FOR OIL PUMP SET)
90253-11021

5VZFE..VZN21#

長さ=8,外径=11

 2
11434S - PIN, RING(FOR WATER PUMP SET)
90253-11021

5VZFE..VZN21#

 2
11434S - PIN, RING(FOR WATER PUMP SET)
90253-11021

5VZFE..VZN21#

 2
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90253-11021

5VZFE..VZN21#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-62100

5VZFE..VZN21#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

5VZFE..VZN21#

 1
11452C - UNION(FOR OIL LEVEL GAGE GUIDE)
90405-10033

5VZFE..VZN21#

 1
11494 - PLATE, OIL HOLE COVER
11494-65010

5VZFE..VZN21#

 1
12101 - PAN SUB-ASSY, OIL
12101-62110

5VZFE..VZN21#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

5VZFE..VZN21#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

5VZFE..VZN21#

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12122-62040

5VZFE..VZN21#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-17050

5VZFE..VZN21#

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

5VZFE..VZN21#

 1
Common parts
90119-06727
90179-06299
90301-68005
90401-19004
90430-20012
91621-J0612
91621-J0814
Linked diagrams
1301
1501
8401

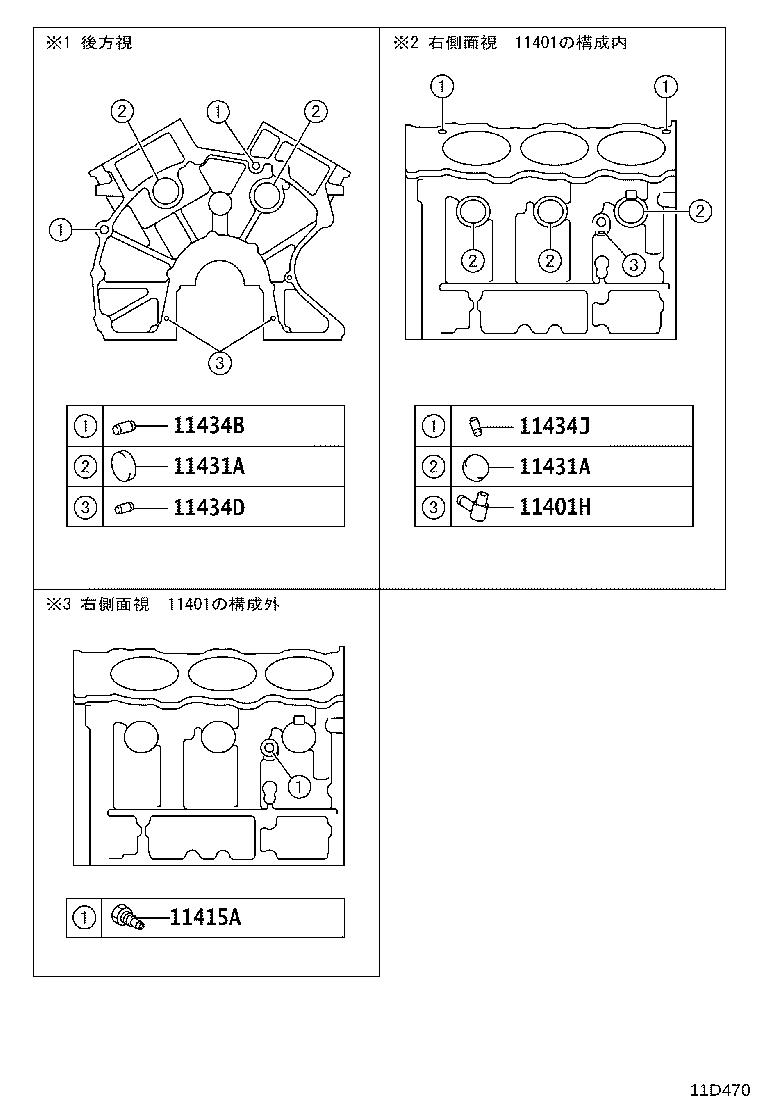

ILLUST NO. 2 OF 2(0211- )5VZFE

Click highlighted areas on diagram

diagram 11401H 11415A 11431A 11431A 11434B 11434D 11434J
Part # Description Qty Price
11401H - UNION(FOR CYLINDER BLOCK LLC DRAIN)
90406-08023

5VZFE..VZN21#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

5VZFE..VZN21#

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-35005

5VZFE..VZN21#

 11
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-35005

5VZFE..VZN21#

 11
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

5VZFE..VZN21#

長さ=22,外径=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06015

5VZFE..VZN21#

長さ=11,外径=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-16001

5VZFE..VZN21#

 4
