VZN215W-GKPGK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

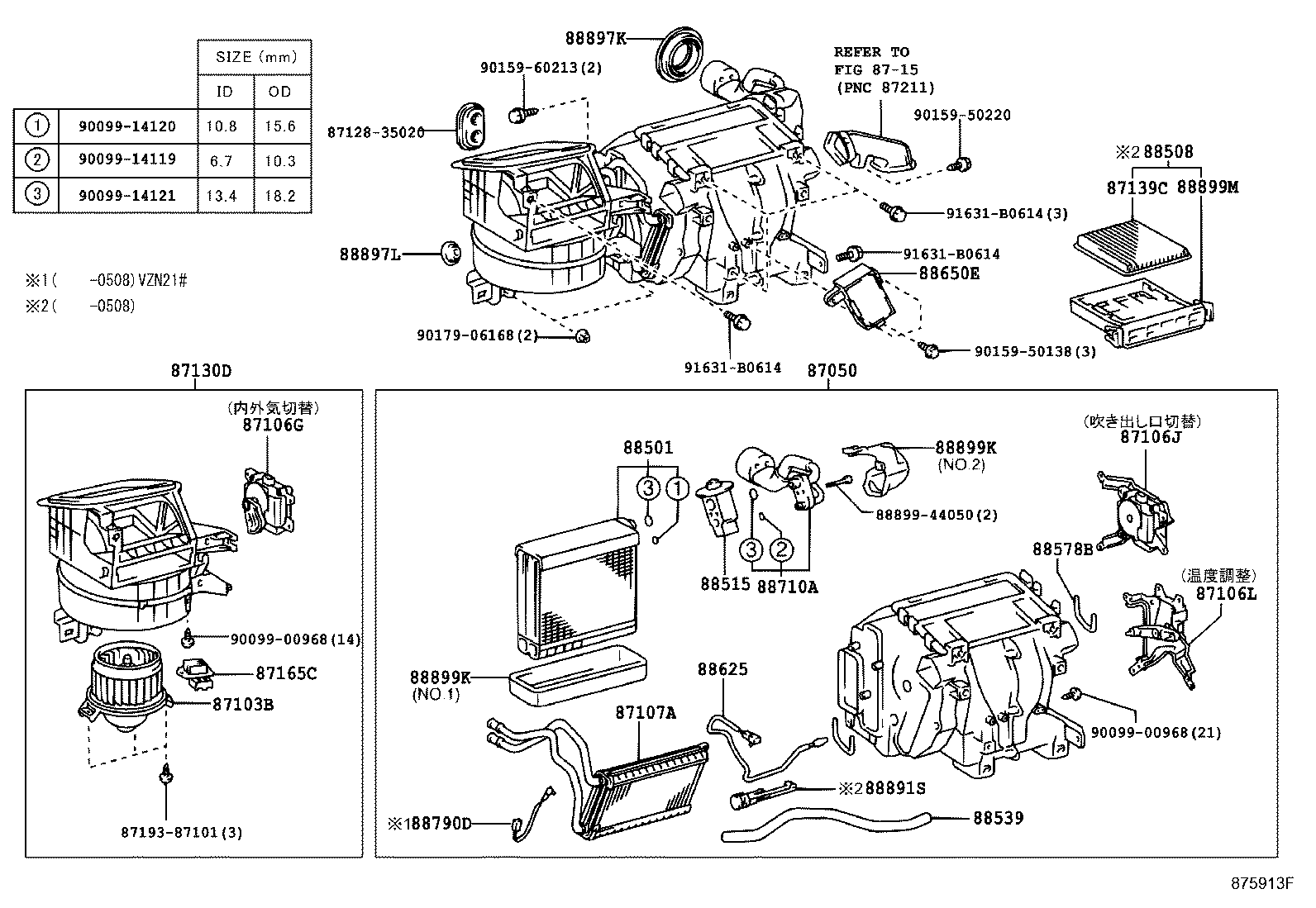

Click highlighted areas on diagram

diagram 87050 87103B 87106G 87106J 87106L 87107A 8712835020 87130D 87139C 8715 87165C 8719387101 88501 88508 88515 88539 88578B 88625 88650E 88710A 88790D 88891S 88897K 88897L 8889944050 88899K 88899K 88899M 9009900968 9009900968 9009914119 9009914120 9009914121 9015950138 9015950220 9015960213 9017906168 91631B0614 91631B0614 91631B0614
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-35040

VZN21#

 1
87050-35041

VZN21#

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-35080

KDN215,RZN21#,TRN21#,VZN21#

 1
87103-35051

KDN215,RZN21#,VZN21#

 1
87103-35050

KDN215,RZN21#,VZN21#

 1
87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-35150

KDN215,RZN21#,VZN21#

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-35120

KDN215,RZN21#,VZN21#

 1
87106-35120

KDN215,RZN21#,VZN21#

 1
87106L - SERVO SUB-ASSY, DAMPER
87106-35180

KDN215,RZN21#,TRN21#,VZN21#

 1
87106-35140

KDN215,RZN21#,VZN21#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-35110

VZN21#

 1
87130D - BLOWER ASSY
87130-35160

KDN215,RZN21#,VZN21#

 1
87130-35161

KDN215,TRN21#,VZN21#

 1
87139C - FILTER, CLEAN AIR
87139-28010

KDN215,RZN21#,TRN21#,VZN21#

花粉ﾌｨﾙﾀ

 1
87139-47020

KDN215,RZN21#,TRN21#,VZN21#

脱臭 & 花粉ﾌｨﾙﾀ

 1
87165C - CONTROL, BLOWER MOTOR
87165-13010

KDN215,RZN21#,VZN21#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-35130

KDN215,RZN21#,TRN21#,VZN21#

 1
88501-35100

KDN215,RZN21#,VZN21#

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20120

KDN215,RZN21#,TRN21#,VZN21#

 1
88515 - VALVE, COOLER EXPANSION
88515-35020

KDN215,RZN21#,VZN21#

 1
88515-60150

KDN215,TRN21#,VZN21#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-35040

KDN215,RZN21#,VZN21#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-35060

KDN215,RZN21#,VZN21#

 1
88625-35080

KDN215,RZN21#,TRN21#,VZN21#

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-35210

RZN21#,VZN21#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-35530

KDN215,RZN21#,VZN21#

 1
88710-35530

KDN215,RZN21#,VZN21#

 1
88790D - THERMISTOR ASSY
88790-35060

VZN21#

 1
88891S - COVER, COOLER, NO.1
88891-35030

KDN215,RZN21#,VZN21#

 1
88891-35040

KDN215,RZN21#,TRN21#,VZN21#

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-35030

KDN215,TRN21#,VZN21#

 1
88897L - GROMMET (FOR DRAIN HOSE)
88899-3A010

KDN215,RZN21#,TRN21#,VZN21#

 1
88899K - PLATE, COVER
88899-60250

TRN21#,VZN21#

NO.1

 1
88899-60260

TRN21#,VZN21#

NO.2

 1
88899K - PLATE, COVER
88899-60250

TRN21#,VZN21#

NO.1

 1
88899-60260

TRN21#,VZN21#

NO.2

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-41010

KDN215,RZN21#,TRN21#,VZN21#

 1
Common parts
87128-35020
87193-87101
88899-44050
90099-00968
90099-14119
90099-14120
90099-14121
90159-50138
90159-50220
90159-60213
90179-06168
91631-B0614
Linked diagrams
8715
