VZN215W-GKPGK (2002)
Toyota Hilux Surf

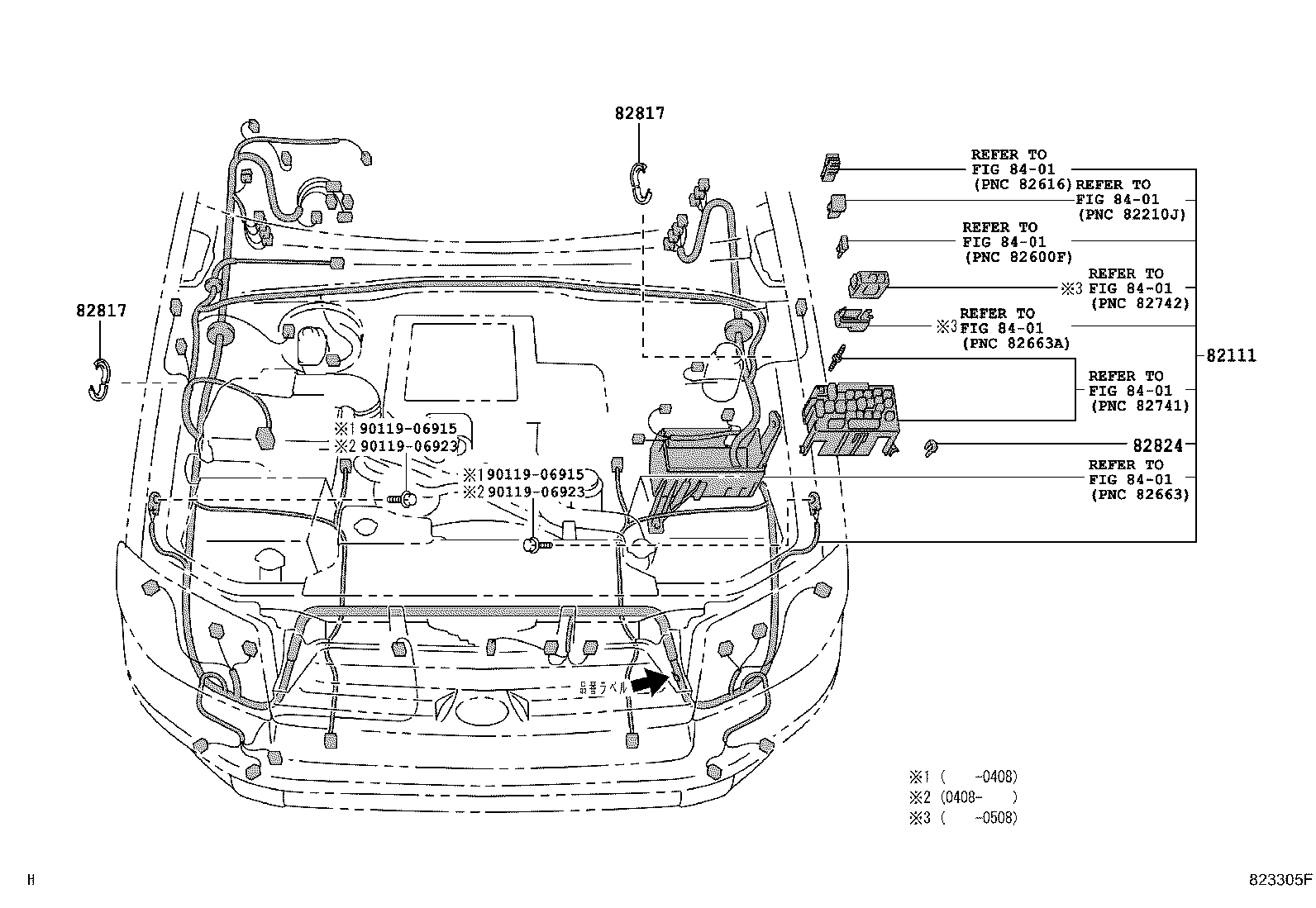

ILLUST NO. 1 OF 8(0211- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3M470 |
RZN21#,VZN21# |
1 | ||
| 82111-3M470 |
RZN21#,VZN21# 品番ﾗﾍﾞﾙ=82111−3M470 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KDN215,RZN21#,TRN21#,VZN21# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KDN215,RZN21#,TRN21#,VZN21# |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20140 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||

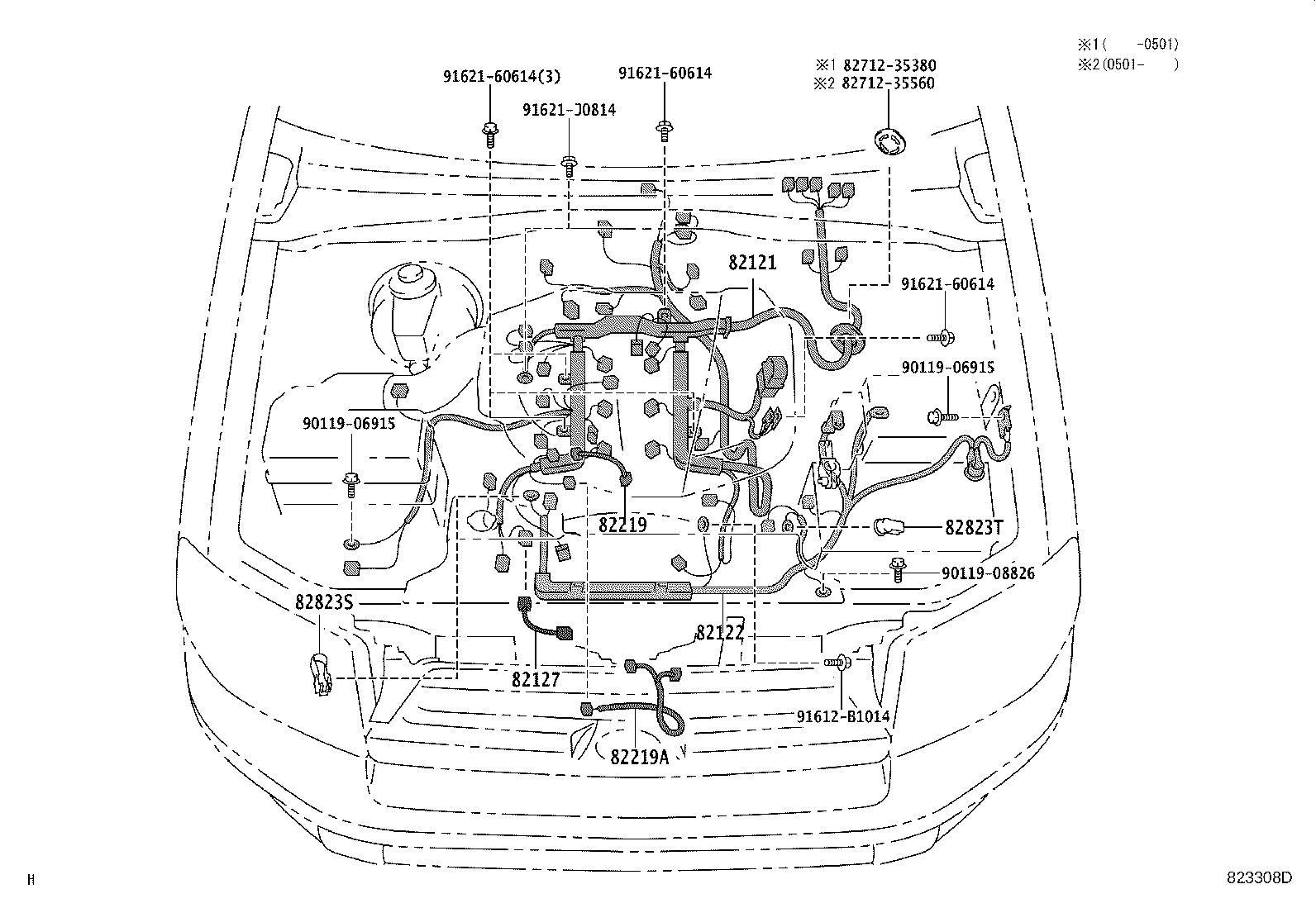

ILLUST NO. 2 OF 8(0211-0508)VZN21#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3M490 |
VZN215 |
1 | ||
| 82121-3M491 |
VZN215 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-3D200 |
VZN21# |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-35260 |
KDN215,TRN215,VZN215 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-34020 |
VZN21# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-34010 |
VZN21# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35050 |
VZN21# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
VZN21# |
1 | ||
| Common parts | ||||
| 82712-35380 | ||||
| 82712-35560 | ||||
| 90119-06915 | ||||
| 90119-08826 | ||||
| 91612-B1014 | ||||
| 91621-60614 | ||||
| 91621-J0814 | ||||

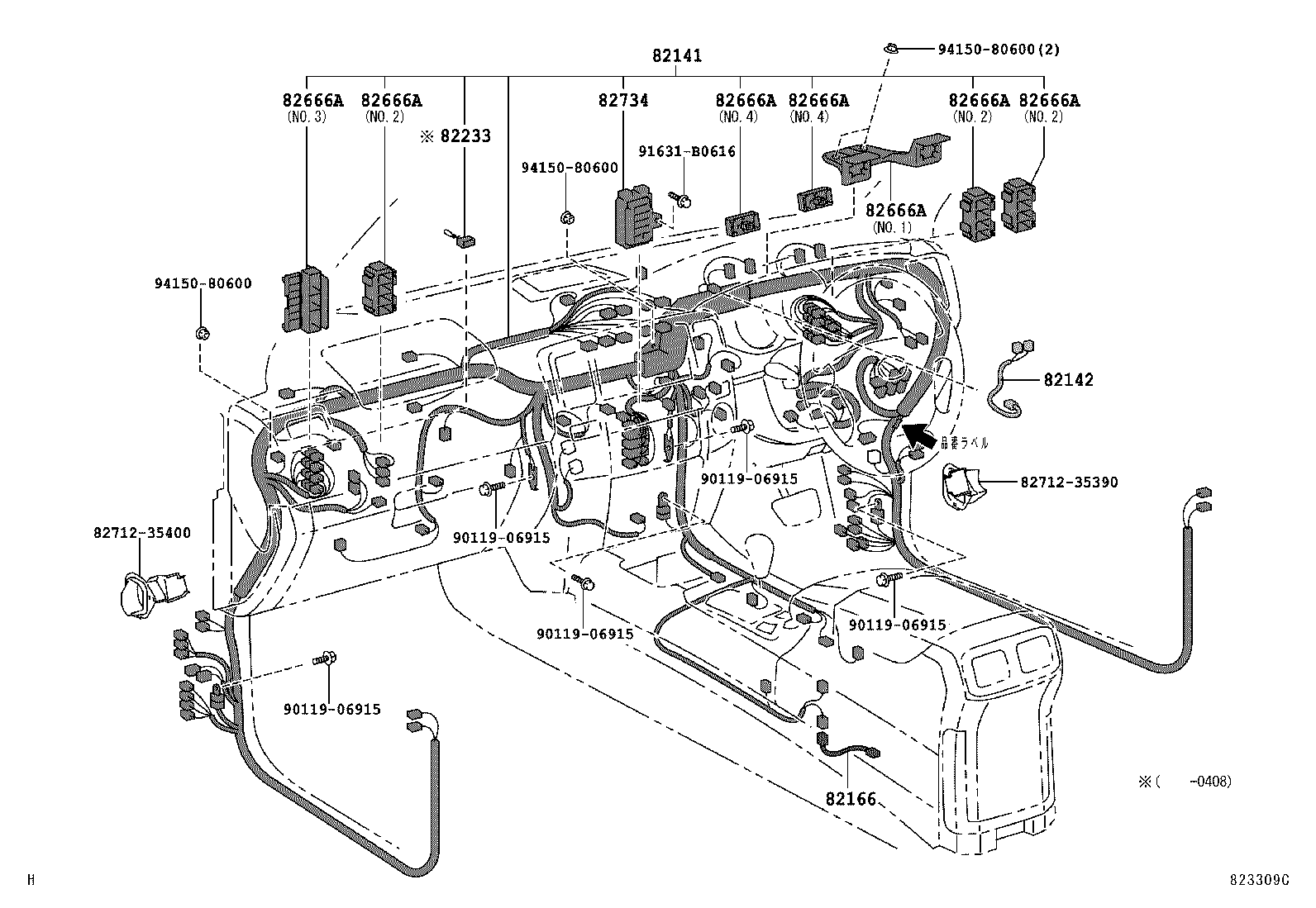

ILLUST NO. 3 OF 8(0211- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ & ｺﾝｿ-ﾙ ﾎﾞﾂｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-35390 |
VZN21# |
1 | ||
| 82141-35400 |
VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 82141-35410 |
VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ) |
1 | ||
| 82141-35420 |
VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 82141-35450 |
VZN21# 盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ) |
1 | ||
| 82141-35440 |
VZN21# 盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ&ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 82141-35430 |
VZN21# 盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ |
1 | ||
| 82141-35460 |
VZN21# 盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 82141-35E00 |
VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 82141-35D90 |
VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 82141-35D80 |
VZN21# |
1 | ||
| 82141-35390 |
VZN21# 品番ﾗﾍﾞﾙ=82141−35390 |
1 | ||
| 82141-35430 |
VZN21# 品番ﾗﾍﾞﾙ=82141−35430 |
1 | ||
| 82141-35420 |
VZN21# 品番ﾗﾍﾞﾙ=82141−35420 |
1 | ||
| 82141-35450 |
VZN21# 品番ﾗﾍﾞﾙ=82141−35450 |
1 | ||
| 82141-35410 |
VZN21# 品番ﾗﾍﾞﾙ=82141−35410 |
1 | ||
| 82141-35400 |
VZN21# 品番ﾗﾍﾞﾙ=82141−35400 |
1 | ||
| 82141-35460 |
VZN21# 品番ﾗﾍﾞﾙ=82141−35460 |
1 | ||
| 82141-35D90 |
VZN21# 品番ﾗﾍﾞﾙ=82141−35D90 |
1 | ||
| 82141-35440 |
VZN21# 品番ﾗﾍﾞﾙ=82141−35440 |
1 | ||
| 82141-35E00 |
VZN215..SSRG 品番ﾗﾍﾞﾙ=82141−35E00 |
1 | ||
| 82141-35D80 |
VZN21# 品番ﾗﾍﾞﾙ=82141−35D80 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-35050 |
TRN21#;KDN215,VZN215..SSRG |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-35010 |
KDN215,RZN215,TRN215,VZN215..SSRG |
1 | ||
| 82233 - WIRE, COMPUTER | ||||
| 82233-35010 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 82233-35010 |
KDN215,RZN21#,VZN21# 盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 82666-35400 |
KDN215,TRN21#,VZN21# NO.2 |
3 | ||
| 82666-60050 |
KDN215,TRN21#,VZN21# NO.4 |
2 | ||
| 82666-35450 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 82666-35400 |
KDN215,TRN21#,VZN21# NO.2 |
3 | ||
| 82666-60050 |
KDN215,TRN21#,VZN21# NO.4 |
2 | ||
| 82666-35450 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 82666-60050 |
KDN215,TRN21#,VZN21# NO.4 |
2 | ||
| 82666-35400 |
KDN215,TRN21#,VZN21# NO.2 |
3 | ||
| 82666-35450 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 82666-35400 |
KDN215,TRN21#,VZN21# NO.2 |
3 | ||
| 82666-60050 |
KDN215,TRN21#,VZN21# NO.4 |
2 | ||
| 82666-35450 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 82666-35400 |
KDN215,TRN21#,VZN21# NO.2 |
3 | ||
| 82666-60050 |
KDN215,TRN21#,VZN21# NO.4 |
2 | ||
| 82666-35450 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 82666-60050 |
KDN215,TRN21#,VZN21# NO.4 |
2 | ||
| 82666-35400 |
KDN215,TRN21#,VZN21# NO.2 |
3 | ||
| 82666-35450 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 82666-35400 |
KDN215,TRN21#,VZN21# NO.2 |
3 | ||
| 82666-60050 |
KDN215,TRN21#,VZN21# NO.4 |
2 | ||
| 82666-35450 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-35030 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| Common parts | ||||
| 82712-35390 | ||||
| 82712-35400 | ||||
| 90119-06915 | ||||
| 91631-B0616 | ||||
| 94150-80600 | ||||

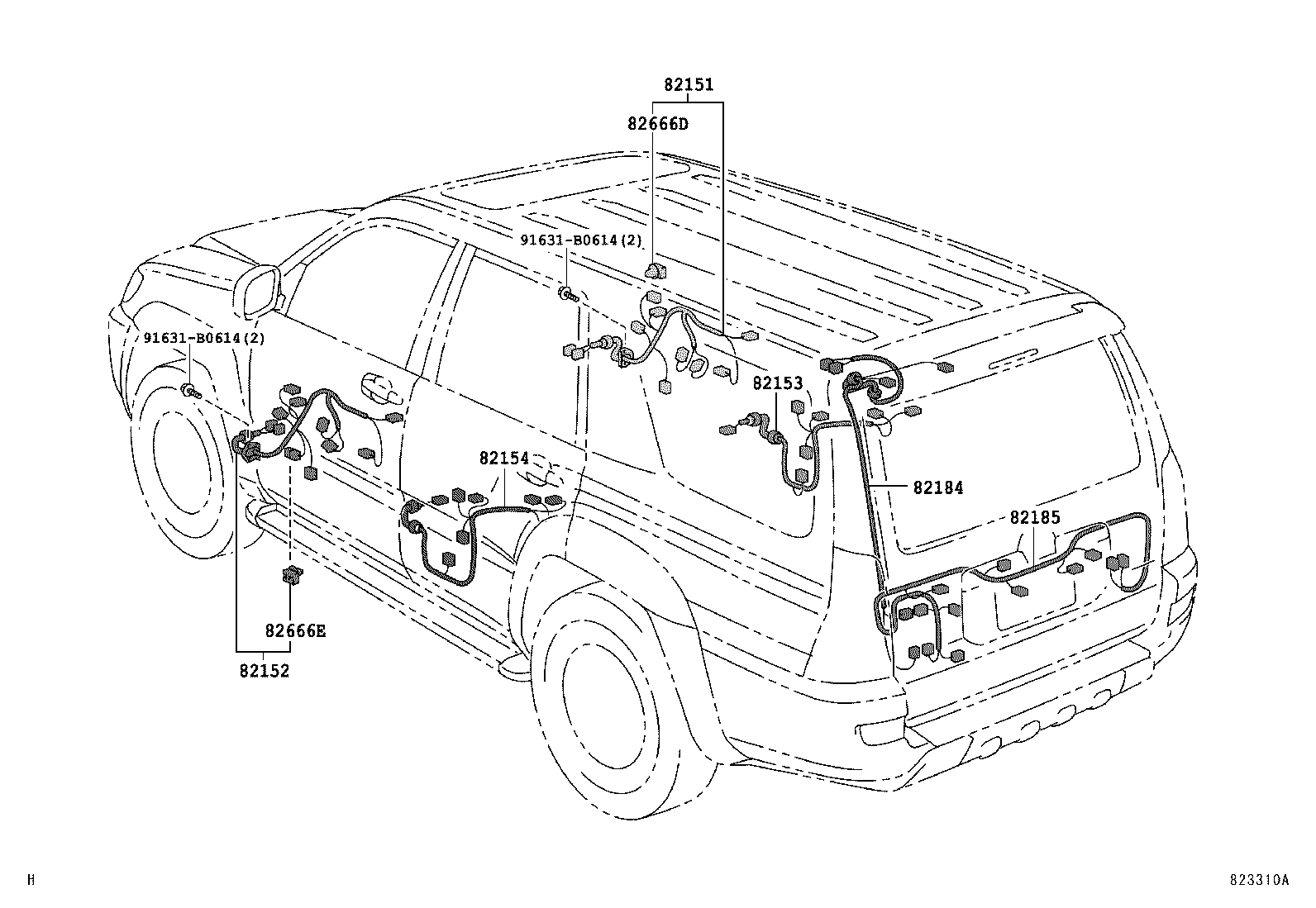

ILLUST NO. 4 OF 8(0211- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-35450 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-35370 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-35220 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-35040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-35181 |
KDN215,TRN215,VZN215..SSRG ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82184-35170 |
KDN215,TRN215,VZN215..SSRG |
1 | ||
| 82184-35180 |
KDN215,TRN215,VZN215..SSRG ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82184-35171 |
KDN215,TRN215,VZN215..SSRG |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-35100 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82185-35110 |
KDN215,TRN21#,VZN21# ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-22080 |
KDN215,TRN21#,VZN21# |
2 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-22080 |
KDN215,TRN21#,VZN21# |
1 | ||
| Common parts | ||||
| 91631-B0614 | ||||

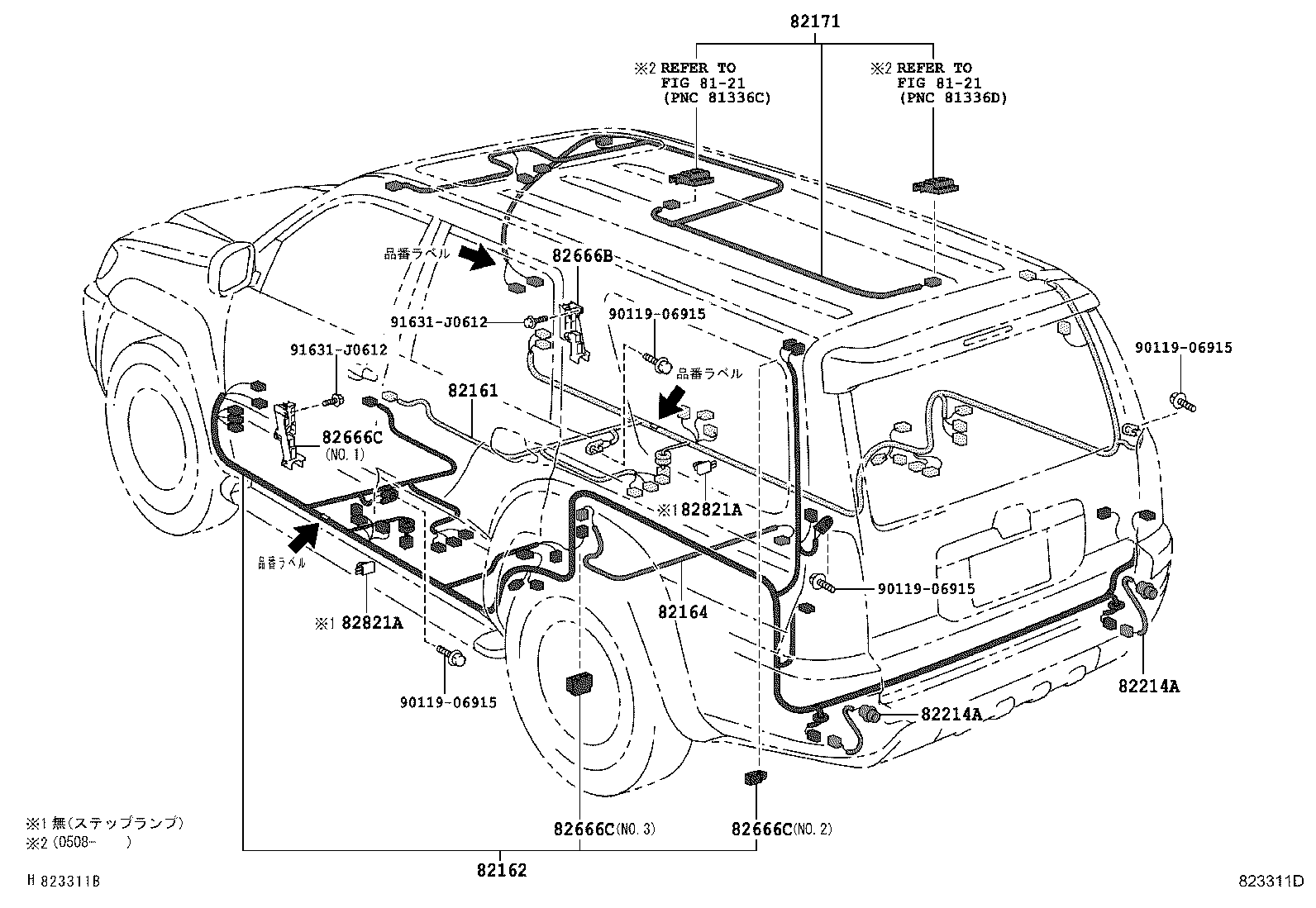

ILLUST NO. 5 OF 8(0211- )
ﾌﾛｱ,ﾌﾚ-ﾑ & ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-35600 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ) |
1 | ||
| 82161-35610 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 82161-35790 |
KDN215,TRN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 82161-35640 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ) |
1 | ||
| 82161-35620 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82161-35820 |
KDN215,TRN215,VZN215..SSRG SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 82161-35810 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 82161-35590 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 82161-35650 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 82161-35590 |
KDN215,RZN21#,VZN21# 品番ﾗﾍﾞﾙ=82161−35590 |
1 | ||
| 82161-35800 |
KDN215,TRN215,VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 82161-35610 |
KDN215,RZN21#,VZN21# 品番ﾗﾍﾞﾙ=82161−35610 |
1 | ||
| 82161-35600 |
KDN215,RZN21#,VZN21# 品番ﾗﾍﾞﾙ=82161−35600 |
1 | ||
| 82161-35630 |
KDN215,RZN21#,VZN21# 品番ﾗﾍﾞﾙ=82161−35630 |
1 | ||
| 82161-35650 |
KDN215,RZN21#,VZN21# 品番ﾗﾍﾞﾙ=82161−35650 |
1 | ||
| 82161-35580 |
KDN215,TRN21#,VZN21# 品番ﾗﾍﾞﾙ=82161−35580 |
1 | ||
| 82161-35630 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 82161-35800 |
KDN215,TRN215,VZN215..SSRG 品番ﾗﾍﾞﾙ=82161−35800 |
1 | ||
| 82161-35640 |
KDN215,RZN21#,VZN21# 品番ﾗﾍﾞﾙ=82161−35640 |
1 | ||
| 82161-35580 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82161-35620 |
KDN215,TRN21#,VZN21# 品番ﾗﾍﾞﾙ=82161−35620 |
1 | ||
| 82161-35790 |
KDN215,TRN21#,VZN21# 品番ﾗﾍﾞﾙ=82161−35790 |
1 | ||
| 82161-35820 |
KDN215,TRN215,VZN215..SSRG 品番ﾗﾍﾞﾙ=82161−35820 |
1 | ||
| 82161-35810 |
KDN215,TRN21#,VZN21# 品番ﾗﾍﾞﾙ=82161−35810 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-35530 |
RZN215..SSRG;KDN215,RZN210,VZN21# |
1 | ||
| 82162-35540 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-35670 |
RZN215,TRN215..SSRG;KDN215,RZN210,TRN210,VZN21# |
1 | ||
| 82162-35680 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-35671 |
TRN215..SSRG;KDN215,TRN210,VZN21# |
1 | ||
| 82162-35681 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-35540 |
KDN215,RZN21#,VZN21# 品番ﾗﾍﾞﾙ=82162−35540 |
1 | ||
| 82162-35680 |
KDN215,RZN21#,TRN21#,VZN21# 品番ﾗﾍﾞﾙ=82162−35680 |
1 | ||
| 82162-35530 |
RZN215..SSRG;KDN215,RZN210,VZN21# 品番ﾗﾍﾞﾙ=82162−35530 |
1 | ||
| 82162-35670 |
RZN215,TRN215..SSRG;KDN215,RZN210,TRN210,VZN21# 品番ﾗﾍﾞﾙ=82162−35670 |
1 | ||
| 82162-35681 |
KDN215,TRN21#,VZN21# 品番ﾗﾍﾞﾙ=82162−35681 |
1 | ||
| 82162-35671 |
TRN215..SSRG;KDN215,TRN210,VZN21# 品番ﾗﾍﾞﾙ=82162−35671 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60300 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-35860 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82171-35870 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 82171-35860 |
KDN215,TRN21#,VZN21# 品番ﾗﾍﾞﾙ=82171−35860 |
1 | ||
| 82171-35870 |
KDN215,TRN21#,VZN21# 品番ﾗﾍﾞﾙ=82171−35870 |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-35020 |
KDN215,TRN21#,VZN21# ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
2 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-35020 |
KDN215,TRN21#,VZN21# ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-35430 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60340 |
KDN215,RZN21#,TRN21#,VZN21# NO.3 |
1 | ||
| 82666-35040 |
KDN215,RZN21#,TRN21#,VZN21# NO.2 |
1 | ||
| 82666-35460 |
KDN215,TRN21#,VZN21# NO.2 |
1 | ||
| 82666-35440 |
KDN215,RZN21#,TRN21#,VZN21# NO.1 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60340 |
KDN215,RZN21#,TRN21#,VZN21# NO.3 |
1 | ||
| 82666-35040 |
KDN215,RZN21#,TRN21#,VZN21# NO.2 |
1 | ||
| 82666-35460 |
KDN215,TRN21#,VZN21# NO.2 |
1 | ||
| 82666-35440 |
KDN215,RZN21#,TRN21#,VZN21# NO.1 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60340 |
KDN215,RZN21#,TRN21#,VZN21# NO.3 |
1 | ||
| 82666-35040 |
KDN215,RZN21#,TRN21#,VZN21# NO.2 |
1 | ||
| 82666-35460 |
KDN215,TRN21#,VZN21# NO.2 |
1 | ||
| 82666-35440 |
KDN215,RZN21#,TRN21#,VZN21# NO.1 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8121 | ||||

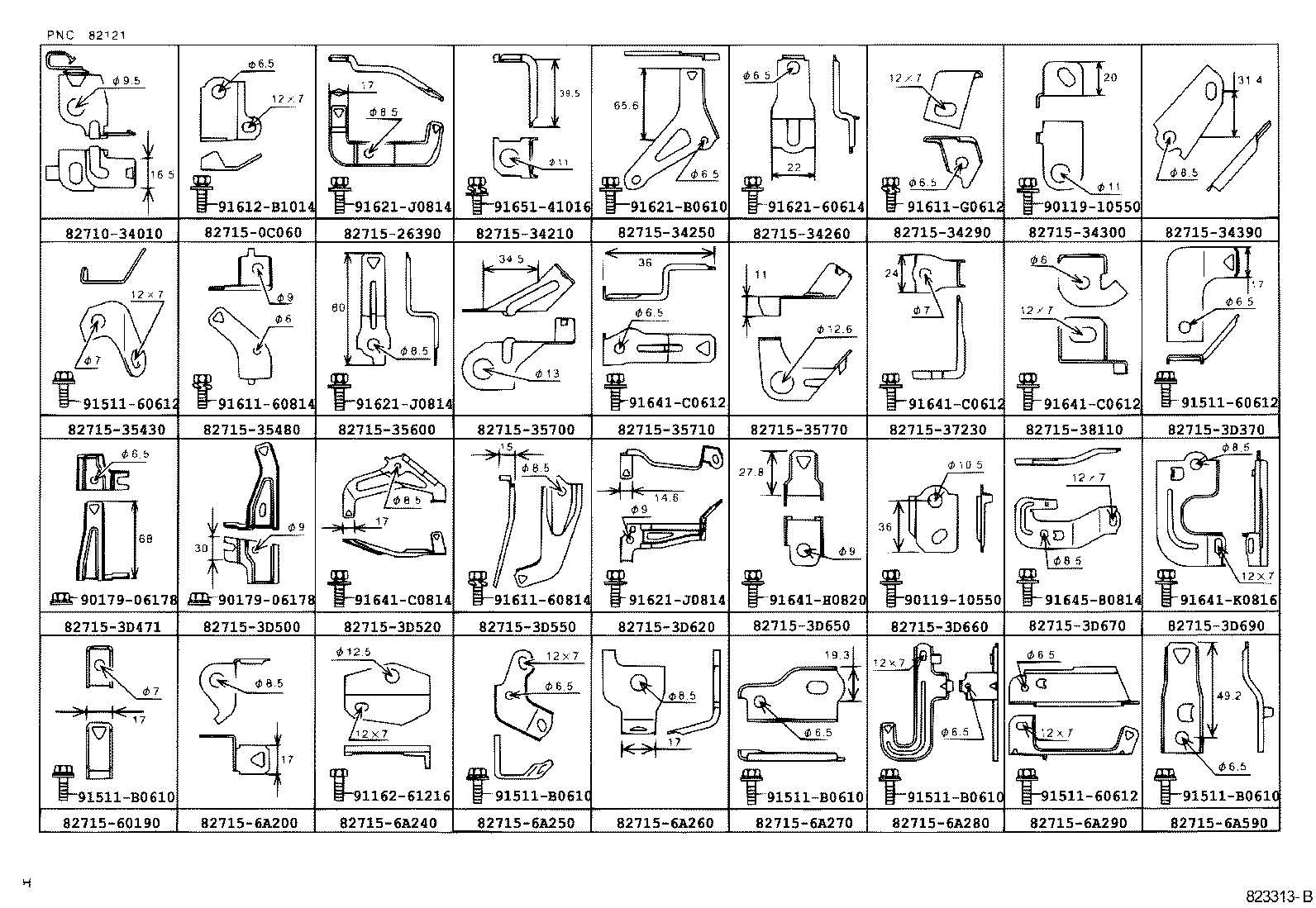

ILLUST NO. 7 OF 8(0211- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-34010 | ||||
| 82715-0C060 | ||||
| 82715-26390 | ||||
| 82715-34210 | ||||
| 82715-34250 | ||||
| 82715-34260 | ||||
| 82715-34290 | ||||
| 82715-34300 | ||||
| 82715-34390 | ||||
| 82715-35430 | ||||
| 82715-35480 | ||||
| 82715-35600 | ||||
| 82715-35700 | ||||
| 82715-35710 | ||||
| 82715-35770 | ||||
| 82715-37230 | ||||
| 82715-38110 | ||||
| 82715-3D370 | ||||
| 82715-3D471 | ||||
| 82715-3D500 | ||||
| 82715-3D520 | ||||
| 82715-3D550 | ||||
| 82715-3D620 | ||||
| 82715-3D650 | ||||
| 82715-3D660 | ||||
| 82715-3D670 | ||||
| 82715-3D690 | ||||
| 82715-60190 | ||||
| 82715-6A200 | ||||
| 82715-6A240 | ||||
| 82715-6A250 | ||||
| 82715-6A260 | ||||
| 82715-6A270 | ||||
| 82715-6A280 | ||||
| 82715-6A290 | ||||
| 82715-6A590 | ||||
| 90119-10550 | ||||
| 90179-06178 | ||||
| 91162-61216 | ||||
| 91511-60612 | ||||
| 91511-B0610 | ||||
| 91611-60814 | ||||
| 91611-G0612 | ||||
| 91612-B1014 | ||||
| 91621-60614 | ||||
| 91621-B0610 | ||||
| 91621-J0814 | ||||
| 91641-C0612 | ||||
| 91641-C0814 | ||||
| 91641-H0820 | ||||
| 91641-K0816 | ||||
| 91645-80814 | ||||
| 91651-41016 | ||||

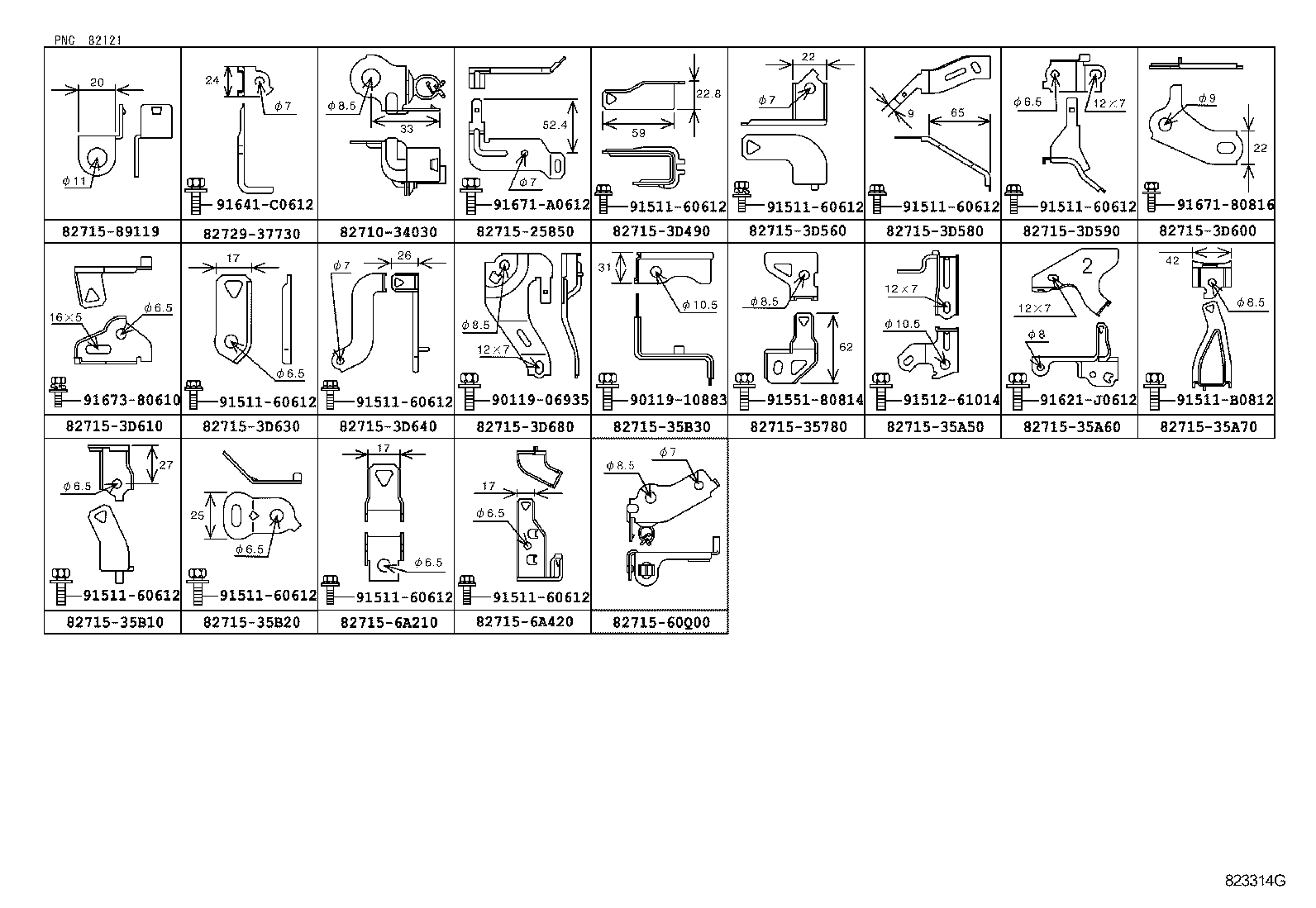

ILLUST NO. 7 OF 8(0211- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-34030 | ||||
| 82715-25850 | ||||
| 82715-35780 | ||||
| 82715-35A50 | ||||
| 82715-35A60 | ||||
| 82715-35A70 | ||||
| 82715-35B10 | ||||
| 82715-35B20 | ||||
| 82715-35B30 | ||||
| 82715-3D490 | ||||
| 82715-3D560 | ||||
| 82715-3D580 | ||||
| 82715-3D590 | ||||
| 82715-3D600 | ||||
| 82715-3D610 | ||||
| 82715-3D630 | ||||
| 82715-3D640 | ||||
| 82715-3D680 | ||||
| 82715-60Q00 | ||||
| 82715-6A210 | ||||
| 82715-6A420 | ||||
| 82715-89119 | ||||
| 82729-37730 | ||||
| 90119-06935 | ||||
| 90119-10883 | ||||
| 91511-60612 | ||||
| 91511-B0812 | ||||
| 91512-61014 | ||||
| 91551-80814 | ||||
| 91621-J0612 | ||||
| 91641-C0612 | ||||
| 91671-80816 | ||||
| 91671-A0612 | ||||
| 91673-80610 | ||||

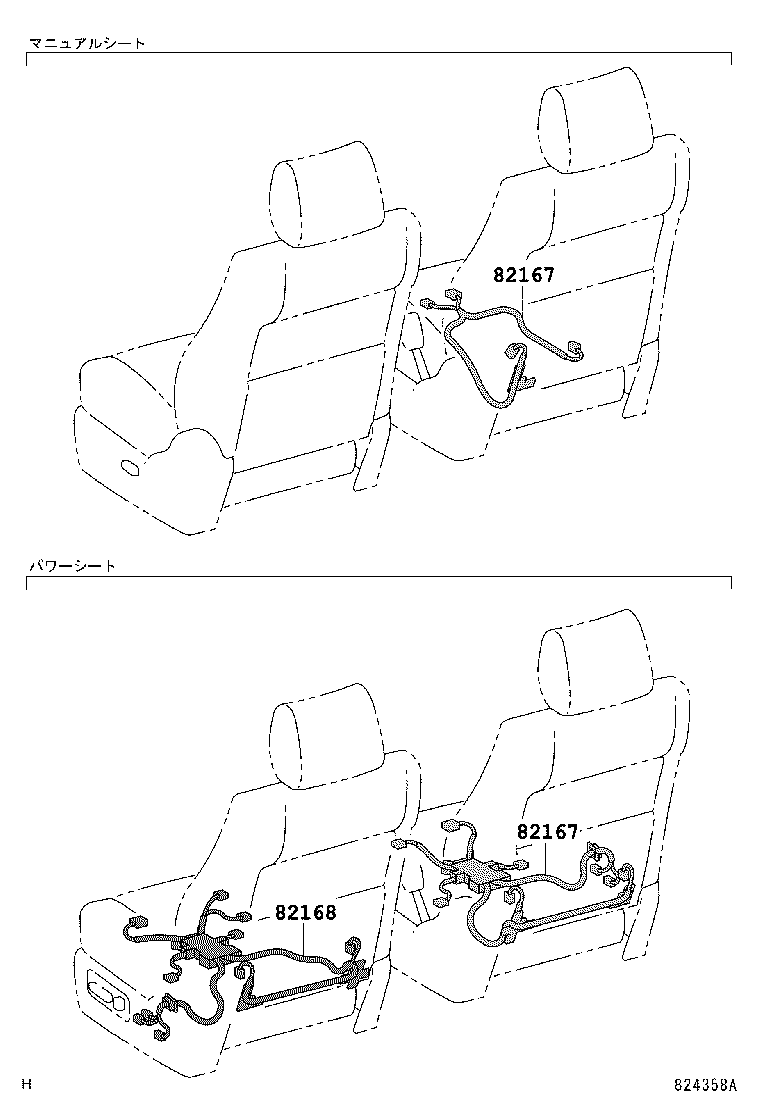

ILLUST NO. 6 OF 8(0211- )
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-60250 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82167-35030 |
KDN215,TRN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-60250 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82167-35030 |
KDN215,TRN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ) |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-60130 |
KDN215,TRN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ) |
1 | ||

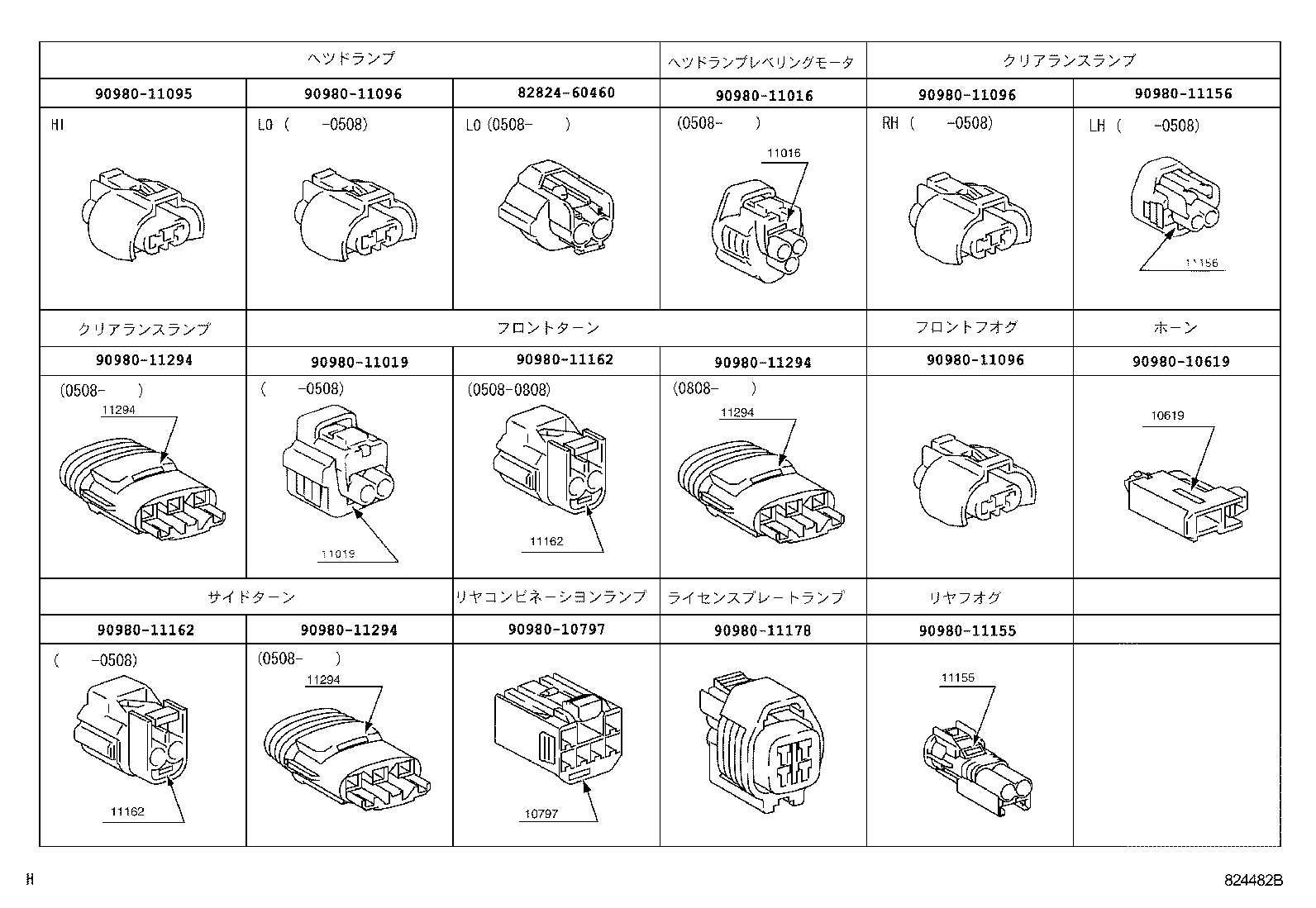

ILLUST NO. 8 OF 8(0211- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11095 | ||||
| 90980-11096 | ||||
| 90980-11155 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11178 | ||||
| 90980-11294 | ||||

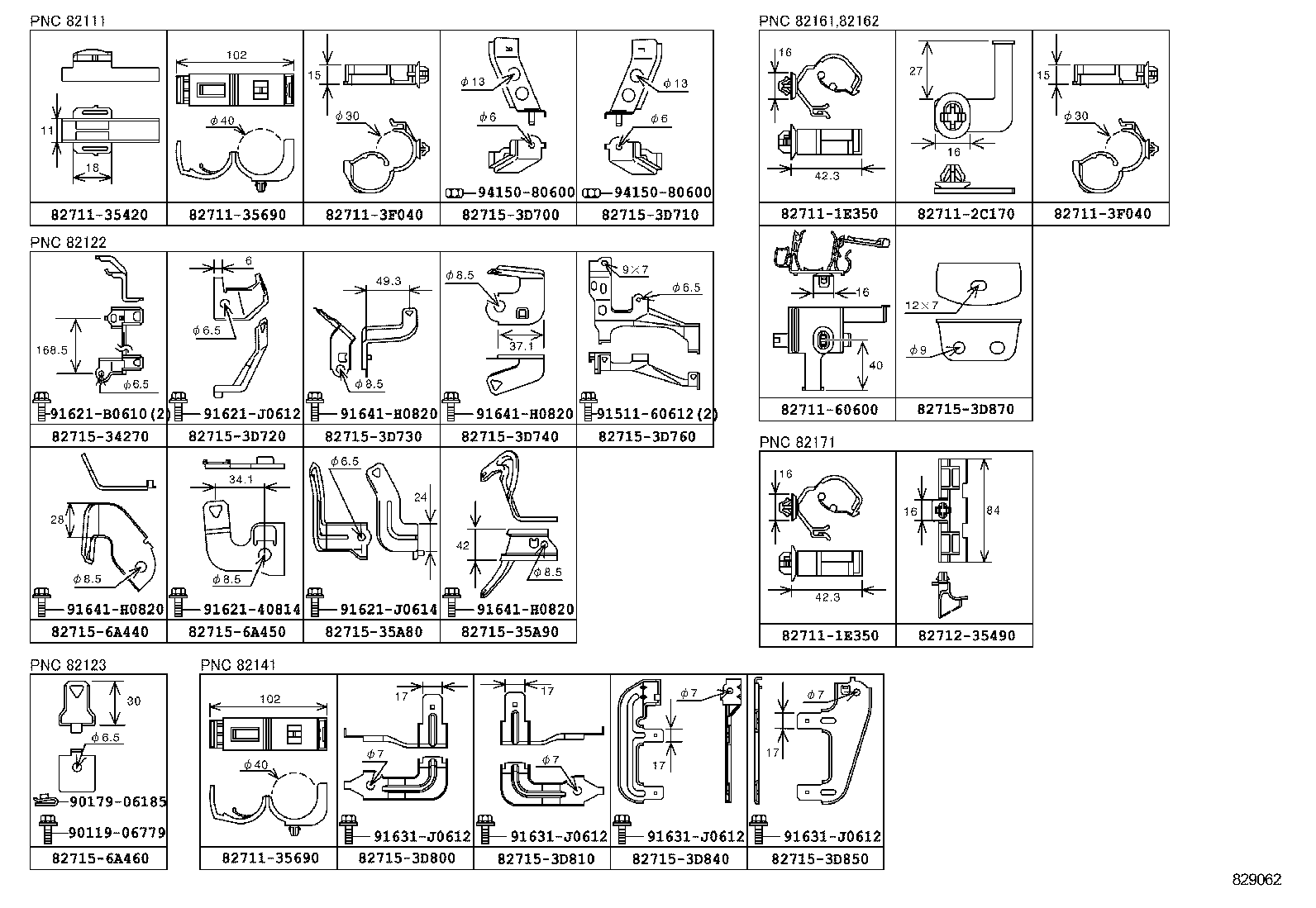

ILLUST NO. 7 OF 8(0211- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-2C170 | ||||
| 82711-35420 | ||||
| 82711-35690 | ||||
| 82711-3F040 | ||||
| 82711-60600 | ||||
| 82712-35490 | ||||
| 82715-34270 | ||||
| 82715-35A80 | ||||
| 82715-35A90 | ||||
| 82715-3D700 | ||||
| 82715-3D710 | ||||
| 82715-3D720 | ||||
| 82715-3D730 | ||||
| 82715-3D740 | ||||
| 82715-3D760 | ||||
| 82715-3D800 | ||||
| 82715-3D810 | ||||
| 82715-3D840 | ||||
| 82715-3D850 | ||||
| 82715-3D870 | ||||
| 82715-6A440 | ||||
| 82715-6A450 | ||||
| 82715-6A460 | ||||
| 90119-06779 | ||||
| 90179-06185 | ||||
| 91511-60612 | ||||
| 91621-40814 | ||||
| 91621-B0610 | ||||
| 91621-J0612 | ||||
| 91621-J0614 | ||||
| 91631-J0612 | ||||
| 91641-H0820 | ||||
| 94150-80600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
