VZN215W-GKPGK (2002)
Toyota Hilux Surf

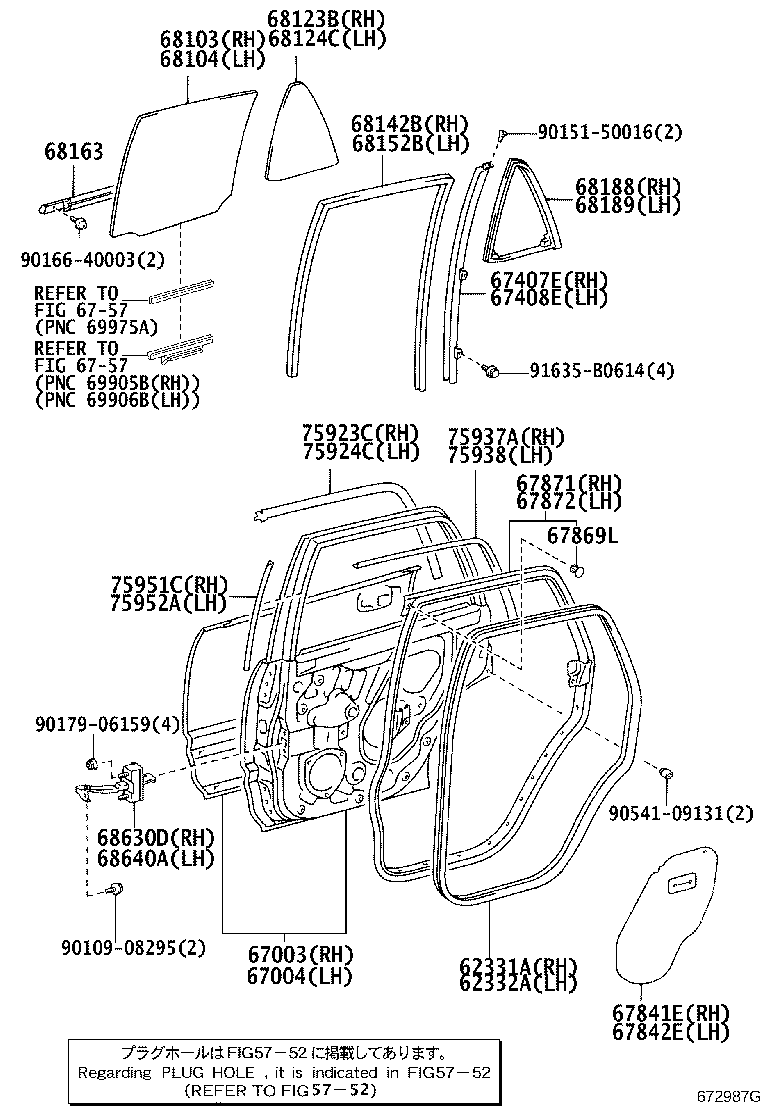

ILLUST NO. 2 OF 2(0211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-35020E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 62331-35020B0 |
TRN215,VZN215..SSRG;KDN215,TRN210,VZN210 STONE,TRIM1# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-35020B0 |
TRN215,VZN215..SSRG;KDN215,TRN210,VZN210 STONE,TRIM1# |
1 | ||
| 62332-35020E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-35161 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67003-35160 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-35161 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67004-35160 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-35040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-35040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-35090 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-35050 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-35010 |
KDN215,TRN21#,VZN21# |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-35060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-35060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-35100 |
KDN215,TRN21#,VZN21# *UVCTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-35100 |
KDN215,TRN21#,VZN21# *UVCTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-35070 |
KDN215,TRN21#,VZN21# *UVCTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68124C - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-35070 |
KDN215,TRN21#,VZN21# *UVCTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-35040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-35040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68163-35030 |
KDN215,TRN21#,VZN21# 右側 |
1 | ||
| 68164-35030 |
KDN215,TRN21#,VZN21# 左側 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-35020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-35020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-35040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-35020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75923C - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75924C - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75987-35320 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75988-35340 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75977-35140 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75978-35140 |
KDN215,TRN21#,VZN21# |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90151-50016 | ||||
| 90166-40003 | ||||
| 90179-06159 | ||||
| 90541-09131 | ||||
| 91635-B0614 | ||||
| Linked diagrams | ||||
| 6757 | ||||

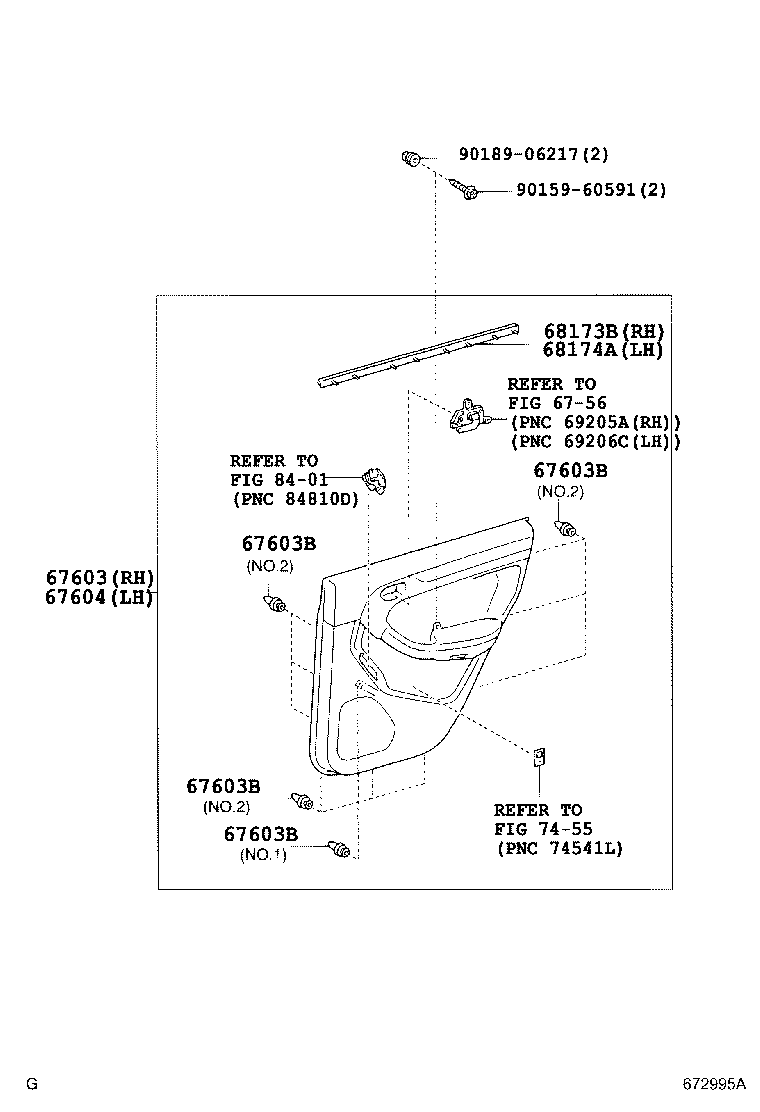

ILLUST NO. 1 OF 2(0211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-35780B0 |
KDN215,RZN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM1# |
1 | ||
| 67630-35780B1 |
KDN215,RZN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM4# |
1 | ||
| 67630-35780B1 |
KDN215,TRN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM4# |
1 | ||
| 67630-35840B0 |
KDN215,RZN215,VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM1# |
1 | ||
| 67630-35780B0 |
KDN215,TRN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM1# |
1 | ||
| 67630-35840B1 |
KDN215,RZN215,VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM4# |
1 | ||
| 67630-35830B0 |
KDN215,TRN215,VZN215..SSRG DK.GRAY,TRIM1# |
1 | ||
| 67630-35760B1 |
KDN215,TRN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ),DK.GRAY,TRIM4# |
1 | ||
| 67630-35830B1 |
KDN215,TRN215,VZN215..SSRG DK.GRAY,TRIM4# |
1 | ||
| 67630-35840B0 |
KDN215,TRN215,VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM1# |
1 | ||
| 67630-35840B1 |
KDN215,TRN215,VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM4# |
1 | ||
| 67630-35760B0 |
KDN215,TRN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ),DK.GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09203 |
KDN215,TRN21#,VZN21# NO.1 |
2 | ||
| 90467-09206 |
KDN215,TRN21#,VZN21# NO.2 |
18 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09203 |
KDN215,TRN21#,VZN21# NO.1 |
2 | ||
| 90467-09206 |
KDN215,TRN21#,VZN21# NO.2 |
18 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09203 |
KDN215,TRN21#,VZN21# NO.1 |
2 | ||
| 90467-09206 |
KDN215,TRN21#,VZN21# NO.2 |
18 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09203 |
KDN215,TRN21#,VZN21# NO.1 |
2 | ||
| 90467-09206 |
KDN215,TRN21#,VZN21# NO.2 |
18 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-35830B0 |
KDN215,RZN215,VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM1# |
1 | ||
| 67640-35830B1 |
KDN215,RZN215,VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM4# |
1 | ||
| 67640-35770B1 |
KDN215,RZN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM4# |
1 | ||
| 67640-35770B0 |
KDN215,RZN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),DK.GRAY,TRIM1# |
1 | ||
| 67640-35770B0 |
KDN215,TRN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM1# |
1 | ||
| 67640-35770B1 |
KDN215,TRN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM4# |
1 | ||
| 67640-35830B1 |
KDN215,TRN215,VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM4# |
1 | ||
| 67640-35750B0 |
KDN215,TRN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ),DK.GRAY,TRIM1# |
1 | ||
| 67640-35830B0 |
KDN215,TRN215,VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),DK.GRAY,TRIM1# |
1 | ||
| 67640-35820B1 |
KDN215,TRN215,VZN215..SSRG DK.GRAY,TRIM4# |
1 | ||
| 67640-35820B0 |
KDN215,TRN215,VZN215..SSRG DK.GRAY,TRIM1# |
1 | ||
| 67640-35750B1 |
KDN215,TRN215,VZN215..SSRG ﾌﾛﾝﾄｼｰﾄ−有り(ﾊﾟﾜｰ),DK.GRAY,TRIM4# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-35040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-35030 |
KDN215,TRN21#,VZN21# |
1 | ||
| Common parts | ||||
| 90159-60591 | ||||
| 90189-06217 | ||||
| Linked diagrams | ||||
| 6756 | ||||
| 7455 | ||||
| 8401 | ||||
