VZN215W-GKPGK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )KDN215,RZN215,TRN215,VZN215

Click highlighted areas on diagram

A343F

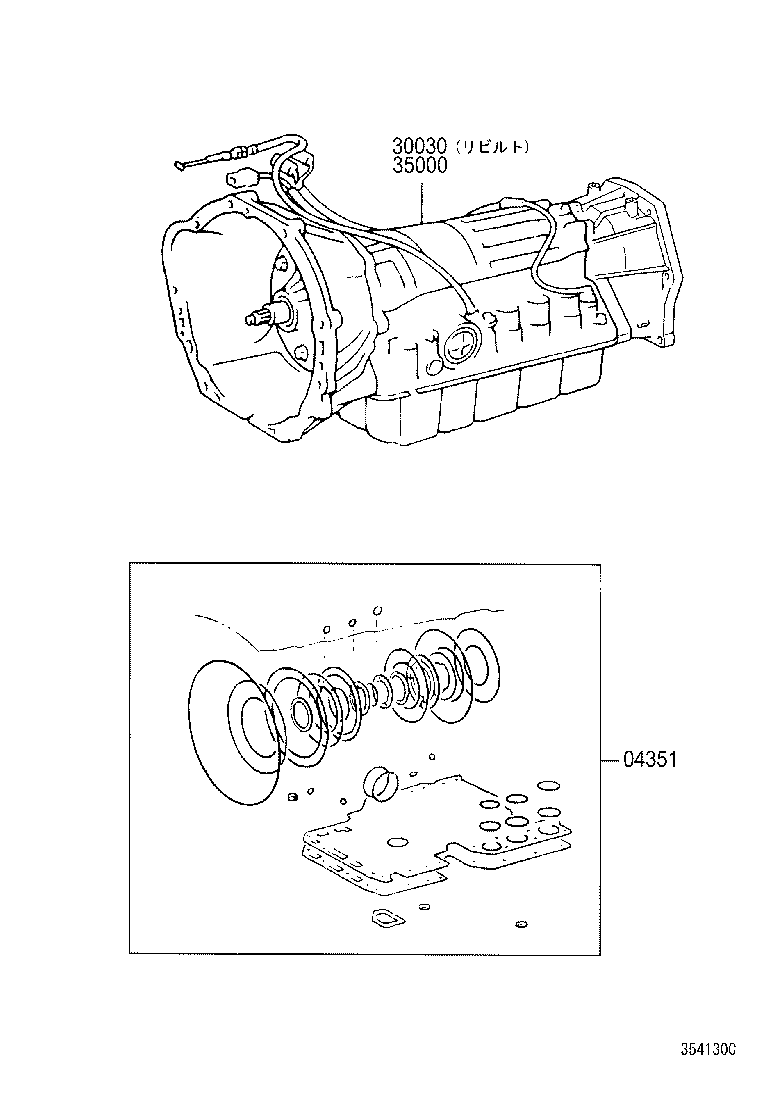

diagram 04351 30030 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-35240

KDN215,VZN21#

 1
04351-35201

KDN215,RZN21#,VZN21#

 1
30030 - TRANSMISSION ASSY, REBUILT
30030-6A120

VZN215

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-6A120

VZN215

A343F

 1
