VZN210W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

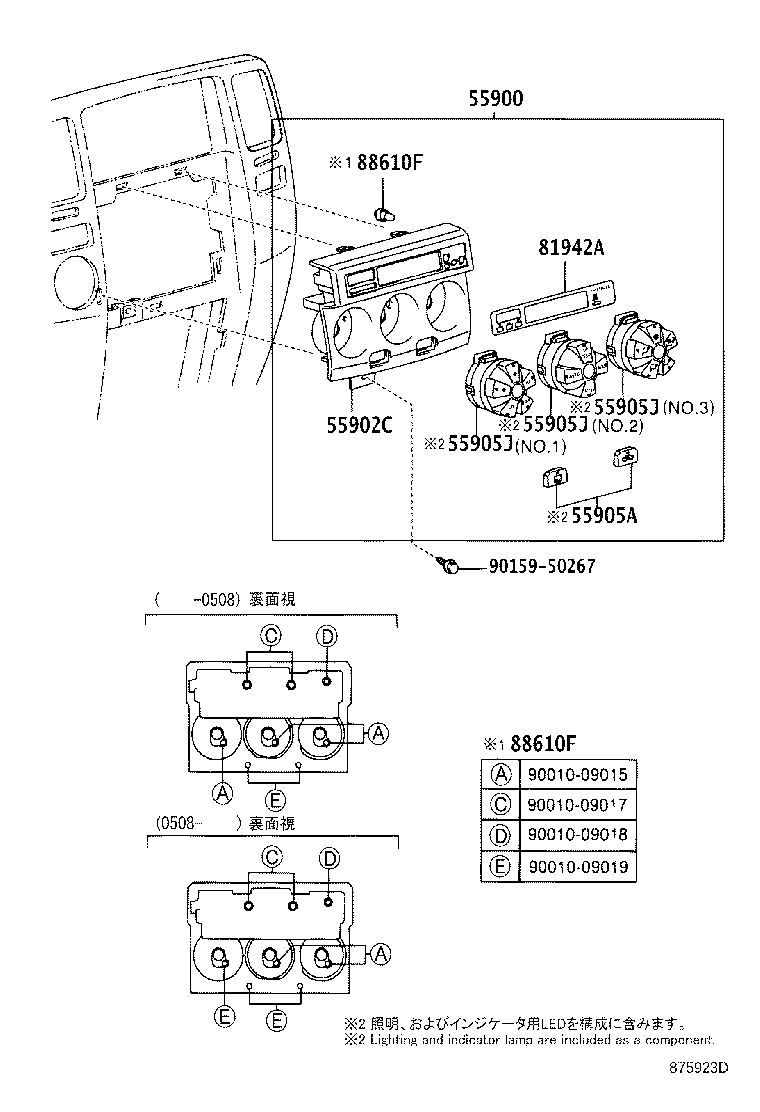

ILLUST NO. 1 OF 3(0211- )

Click highlighted areas on diagram

ｺﾝﾄﾛ-ﾙ

diagram 55900 55902C 55905A 55905J 55905J 55905J 81942A 88610F 88610F 9015950267
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-35420

KDN215,TRN21#,VZN21#..SSRX

 1
55902C - PANEL SUB-ASSY, AIR CONDITIONER
55902-35020

KDN215,TRN21#,VZN21#..SSRX

 1
55905A - KNOB, HEATER CONTROL
55905-35340

KDN215,TRN21#,VZN21#

 1
55905J - KNOB SUB-ASSY, CONTROL
55905-35370

KDN215,TRN21#,VZN21#

NO.2

 1
55905-35350

KDN215,TRN21#,VZN21#

NO.1

 1
55905-35360

KDN215,TRN21#,VZN21#

NO.3

 1
55905J - KNOB SUB-ASSY, CONTROL
55905-35370

KDN215,TRN21#,VZN21#

NO.2

 1
55905-35350

KDN215,TRN21#,VZN21#

NO.1

 1
55905-35360

KDN215,TRN21#,VZN21#

NO.3

 1
55905J - KNOB SUB-ASSY, CONTROL
55905-35370

KDN215,TRN21#,VZN21#

NO.2

 1
55905-35350

KDN215,TRN21#,VZN21#

NO.1

 1
55905-35360

KDN215,TRN21#,VZN21#

NO.3

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-35010

KDN215,TRN21#,VZN21#

 1
88610F - BULB, COOLER CONTROL SWITCH
90010-09019

KDN215,RZN21#,TRN21#,VZN21#

TYPE E:ｲﾗｽﾄ参照

 2
90010-09017

KDN215,RZN21#,TRN21#,VZN21#

TYPE C:ｲﾗｽﾄ参照

 2
90010-09018

KDN215,RZN21#,TRN21#,VZN21#

TYPE D:ｲﾗｽﾄ参照

 1
90010-09015

KDN215,RZN21#,TRN21#,VZN21#

TYPE A:ｲﾗｽﾄ参照

 3
88610F - BULB, COOLER CONTROL SWITCH
90010-09019

KDN215,RZN21#,TRN21#,VZN21#

TYPE E:ｲﾗｽﾄ参照

 2
90010-09017

KDN215,RZN21#,TRN21#,VZN21#

TYPE C:ｲﾗｽﾄ参照

 2
90010-09018

KDN215,RZN21#,TRN21#,VZN21#

TYPE D:ｲﾗｽﾄ参照

 1
90010-09015

KDN215,RZN21#,TRN21#,VZN21#

TYPE A:ｲﾗｽﾄ参照

 3
Common parts
90159-50267

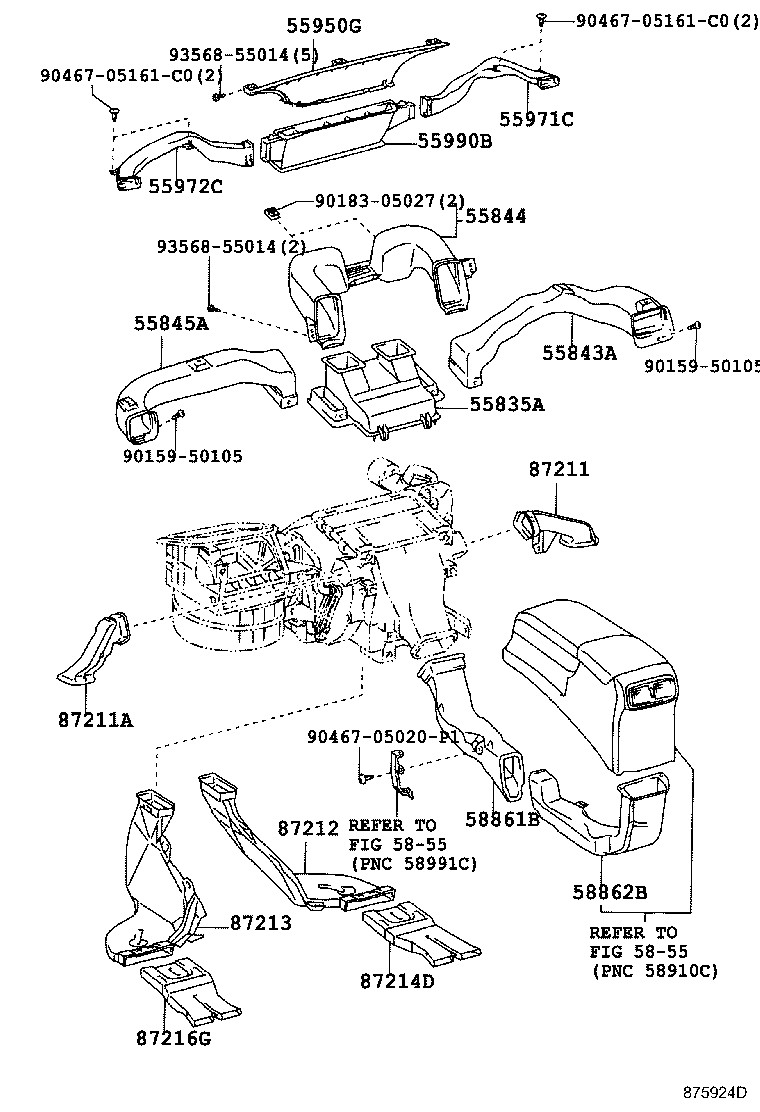

ILLUST NO. 2 OF 3(0211- )

Click highlighted areas on diagram

ｴｱ ﾀﾞｸﾄ

diagram 55835A 55843A 55844 55845A 55950G 55971C 55972C 55990B 5855 5855 58861B 58862B 87211 87211A 87212 87213 87214D 87216G 9015950105 9015950105 9018305027 9046705020P1 9046705161C0 9046705161C0 9356855014 9356855014
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-35080

KDN215,TRN21#,VZN21#

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-35050

KDN215,TRN21#,VZN21#

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-35070

KDN215,TRN21#,VZN21#

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-35020

KDN215,TRN21#,VZN21#

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-35050

KDN215,TRN21#,VZN21#

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-35020

KDN215,TRN21#,VZN21#

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-35020

KDN215,TRN21#,VZN21#

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-60041

KDN215,TRN21#,VZN21#

 1
55990-60040

KDN215,RZN21#,VZN21#

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-35020

KDN215,TRN21#,VZN21#

 1
58862B - DUCT, CONSOLE BOX, NO.2
58862-35010

KDN215,TRN21#,VZN21#

 1
87211 - DUCT, AIR, NO.1
87211-35350

KDN215,TRN21#,VZN21#

 1
87211A - DUCT, AIR, NO.2
87211-35360

KDN215,TRN21#,VZN21#

 1
87212 - DUCT, AIR, REAR NO.1
87212-35020

KDN215,TRN21#,VZN21#

 1
87213 - DUCT, AIR, REAR NO.2
87213-35020

KDN215,TRN21#,VZN21#

 1
87214D - DUCT, AIR, REAR NO.3
87215-35010

KDN215,TRN21#,VZN21#

 1
87216G - GUIDE, AIR DUCT, REAR LH
87216-35010

KDN215,TRN21#,VZN21#

 1
Common parts
90159-50105
90183-05027
90467-05020P1
90467-05161C0
93568-55014
Linked diagrams
5855

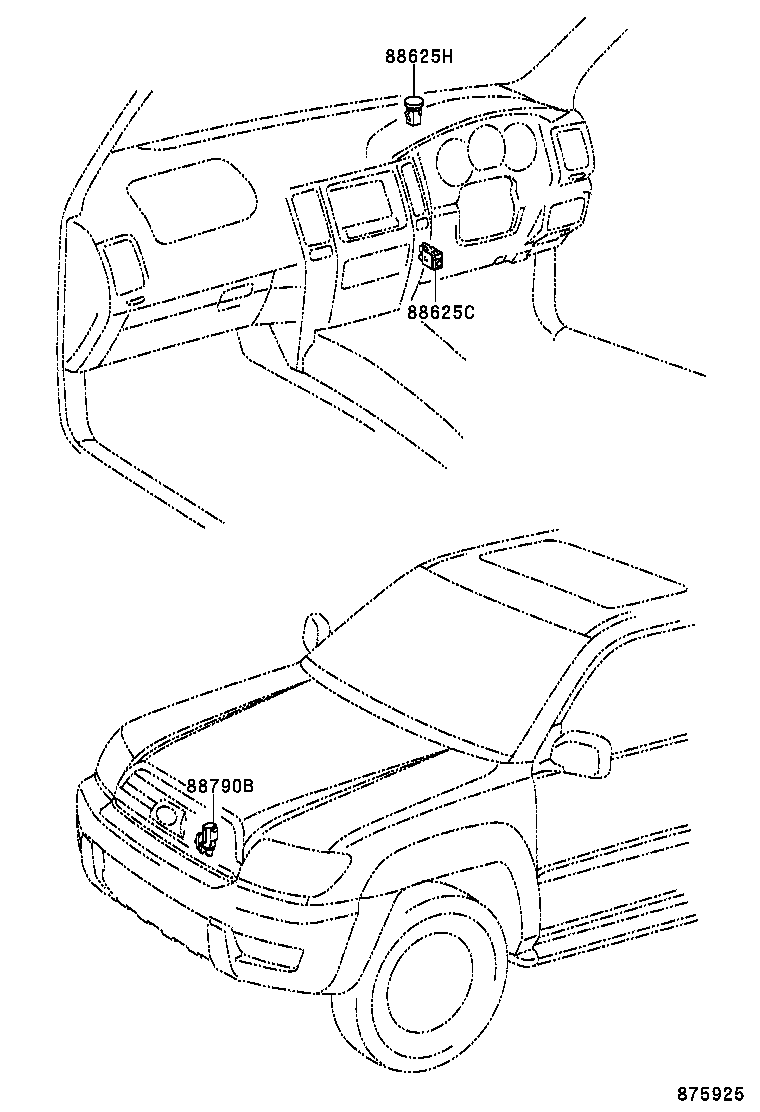

ILLUST NO. 3 OF 3(0211- )

Click highlighted areas on diagram

ｾﾝｻ

diagram 88625C 88625H 88790B
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88625-47021

KDN215,TRN21#,VZN21#

 1
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031

KDN215,TRN21#,VZN21#

 1
88790B - THERMISTOR ASSY
88790-22131

KDN215,TRN21#,VZN21#

 1
