VZN210W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

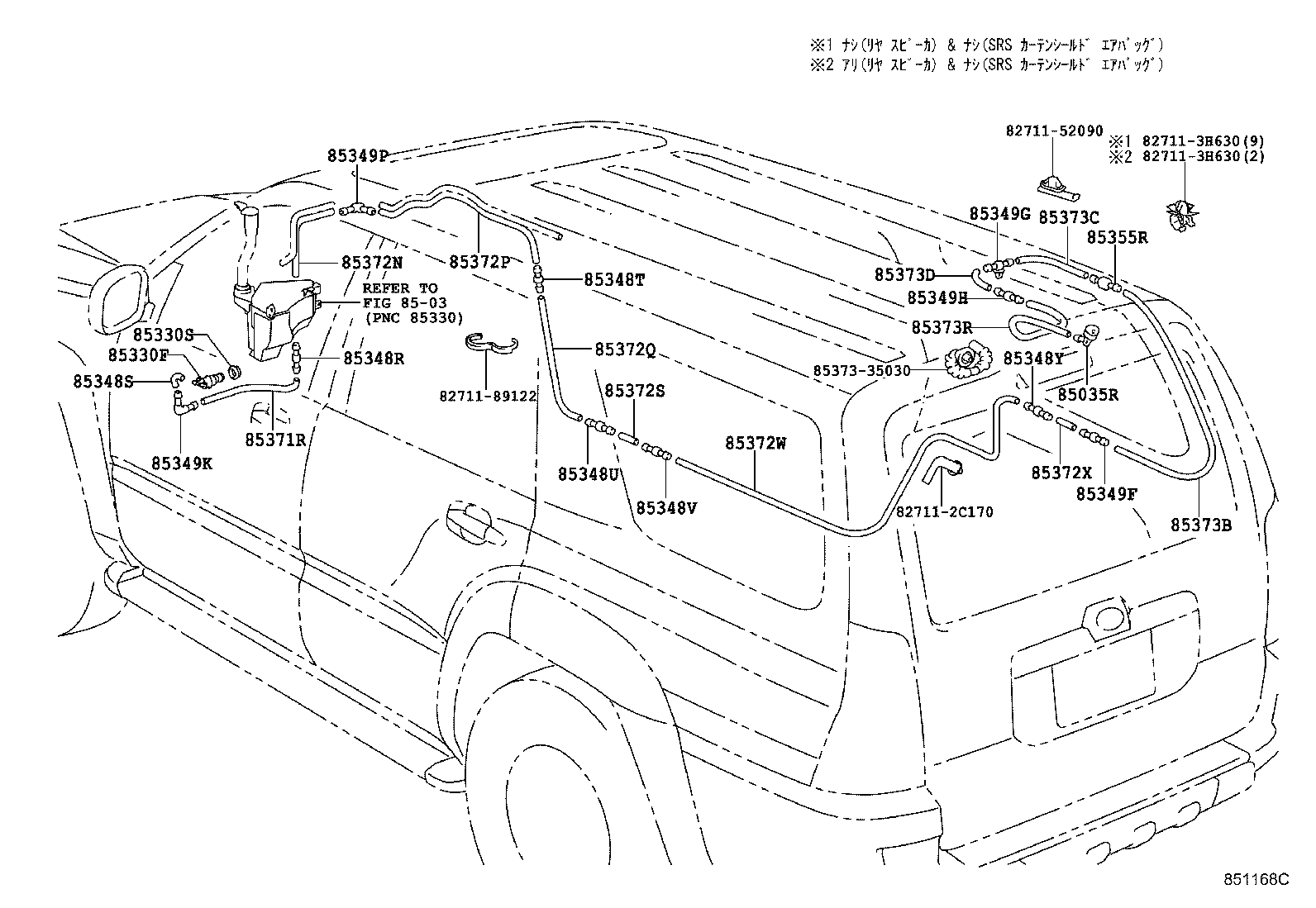

Click highlighted areas on diagram

diagram 827112C170 827113H630 827113H630 8271152090 8271189122 8503 85035R 85330F 85330S 85348R 85348S 85348T 85348U 85348V 85348Y 85349F 85349G 85349H 85349K 85349P 85355R 85371R 85372N 85372P 85372Q 85372S 85372W 85372X 8537335030 85373B 85373C 85373D 85373R
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-35020

KDN215,TRN21#,VZN21#

 1
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60180

KDN215,TRN21#,VZN21#

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

KDN215,TRN21#,VZN21#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

KDN215,TRN21#,VZN21#

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-14481

KDN215,TRN21#,VZN21#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85375-10260

KDN215,TRN21#,VZN21#

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85375-10260

KDN215,TRN21#,VZN21#

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85375-10260

KDN215,TRN21#,VZN21#

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85375-10260

KDN215,TRN21#,VZN21#

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85375-10260

KDN215,TRN21#,VZN21#

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85375-17050

KDN215,TRN21#,VZN21#

 1
85349H - JOINT, REAR WASHER HOSE, NO.3
85375-10260

KDN215,TRN21#,VZN21#

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-20200

KDN215,TRN21#,VZN21#

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-20200

KDN215,TRN21#,VZN21#

 1
85355R - VALVE, REAR WASHER HOSE
85321-26020

KDN215,TRN21#,VZN21#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

KDN215,TRN21#,VZN21#

*H,L=250

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

KDN215,TRN21#,VZN21#

*H,L=210

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

KDN215,TRN21#,VZN21#

*H,L=1000

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

KDN215,TRN21#,VZN21#

*H,L=500

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

KDN215,TRN21#,VZN21#

*H,L=50

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33589

KDN215,TRN21#,VZN21#

*H,L=3200

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

KDN215,TRN21#,VZN21#

*H,L=50

 1
85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
90446-07001

KDN215,TRN21#,VZN21#

*H,L=720

 1
85373C - TUBE, REAR WASHER RUBBER
90446-07001

KDN215,TRN21#,VZN21#

*H,L=100

 1
85373D - PIPE, REAR WASHER
90099-33080

KDN215,TRN21#,VZN21#

*H,L=50

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33082

KDN215,TRN21#,VZN21#

*H,L=310

 1
