VZN210W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

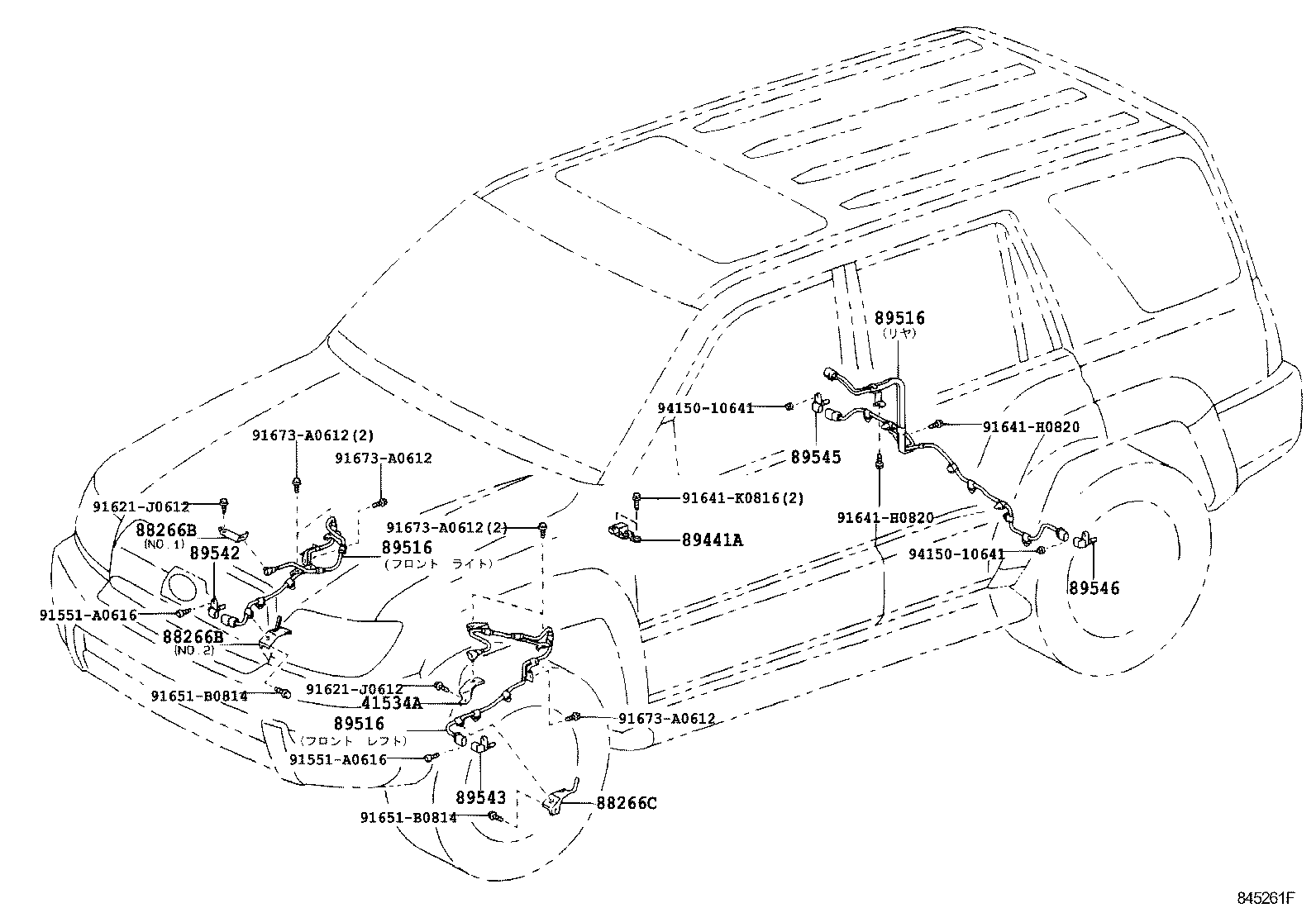

Click highlighted areas on diagram

diagram 41534A 88266B 88266B 88266C 89441A 89516 89516 89516 89542 89543 89545 89546 91551A0616 91551A0616 91621J0612 91621J0612 91641H0820 91641H0820 91641K0816 91651B0814 91651B0814 91673A0612 91673A0612 91673A0612 91673A0612 9415010641 9415010641
Part # Description Qty Price
41534A - BRACKET, FRONT DIFFERENTIAL BREATHER
41534-60020

KDN215,TRN210,VZN21#

 1
88266B - CLAMP, SKID CONTROL SENSOR, NO.1
88266-60460

KDN215,TRN21#,VZN21#

NO.1

 1
88266-60540

KDN215,TRN21#,VZN21#

NO.2

 1
88266B - CLAMP, SKID CONTROL SENSOR, NO.1
88266-60460

KDN215,TRN21#,VZN21#

NO.1

 1
88266-60540

KDN215,TRN21#,VZN21#

NO.2

 1
88266C - CLAMP, SKID CONTROL SENSOR, NO.2
88266-60550

KDN215,TRN21#,VZN21#

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-60070

KDN215,TRN21#,VZN21#

ﾌﾛﾝﾄ右側

 1
89516-60080

KDN215,TRN21#,VZN21#

ﾌﾛﾝﾄ左側

 1
89516-60090

KDN215,TRN21#,VZN21#

ﾘﾔ

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-60070

KDN215,TRN21#,VZN21#

ﾌﾛﾝﾄ右側

 1
89516-60080

KDN215,TRN21#,VZN21#

ﾌﾛﾝﾄ左側

 1
89516-60090

KDN215,TRN21#,VZN21#

ﾘﾔ

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-60070

KDN215,TRN21#,VZN21#

ﾌﾛﾝﾄ右側

 1
89516-60080

KDN215,TRN21#,VZN21#

ﾌﾛﾝﾄ左側

 1
89516-60090

KDN215,TRN21#,VZN21#

ﾘﾔ

 1
89542 - SENSOR, SPEED, FRONT RH
89542-60050

KDN215,TRN21#,VZN21#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-60050

KDN215,TRN21#,VZN21#

 1
89545 - SENSOR, SPEED, REAR RH
89542-60050

KDN215,TRN21#,VZN21#

 1
89546 - SENSOR, SPEED, REAR LH
89543-60050

KDN215,TRN21#,VZN21#

 1
Common parts
91551-A0616
91621-J0612
91641-H0820
91641-K0816
91651-B0814
91673-A0612
94150-10641
