VZN185W-GAPGK (1995)

Toyota Hilux Surf

Production Nov 1995 - Nov 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )VZN18#

Click highlighted areas on diagram

ﾅｼ(ﾘﾔﾋ-ﾀ)

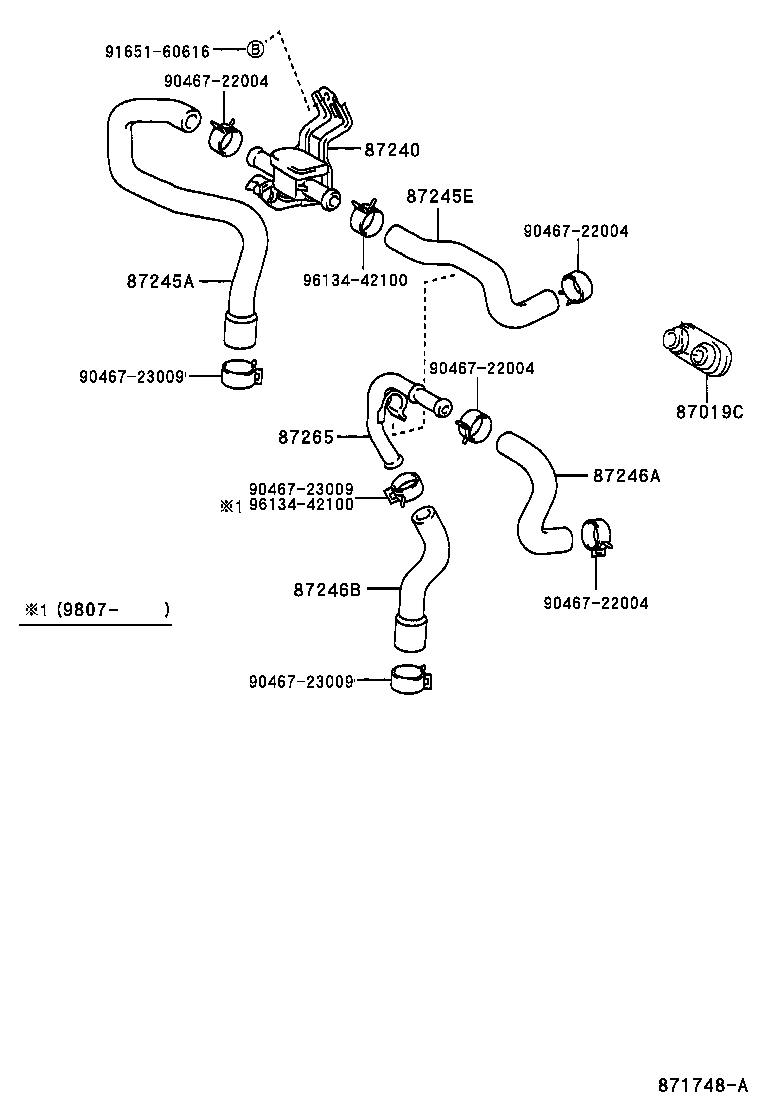

diagram 87019C 87240 87245A 87245E 87246A 87246B 87265 9046722004 9046722004 9046722004 9046722004 9046723009 9046723009 9046723009 9165160616 9613442100 9613442100
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01405

KZN185,RZN18#,VZN18#..EFI,TDE

 1
87240 - VALVE ASSY, HEATER WATER
87240-35040

VZN18#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-35580

VZN18#

ｱﾘ(ﾘﾔﾋ-ﾀ),*318

 1
87245E - HOSE, HEATER WATER, INLET E
87245-35610

VZN18#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35400

VZN18#

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-35280

VZN185..SSRG

 1
Common parts
90467-22004
90467-23009
91651-60616
96134-42100

(9511- )VZN18#

Click highlighted areas on diagram

ｱﾘ(ﾘﾔﾋ-ﾀ)

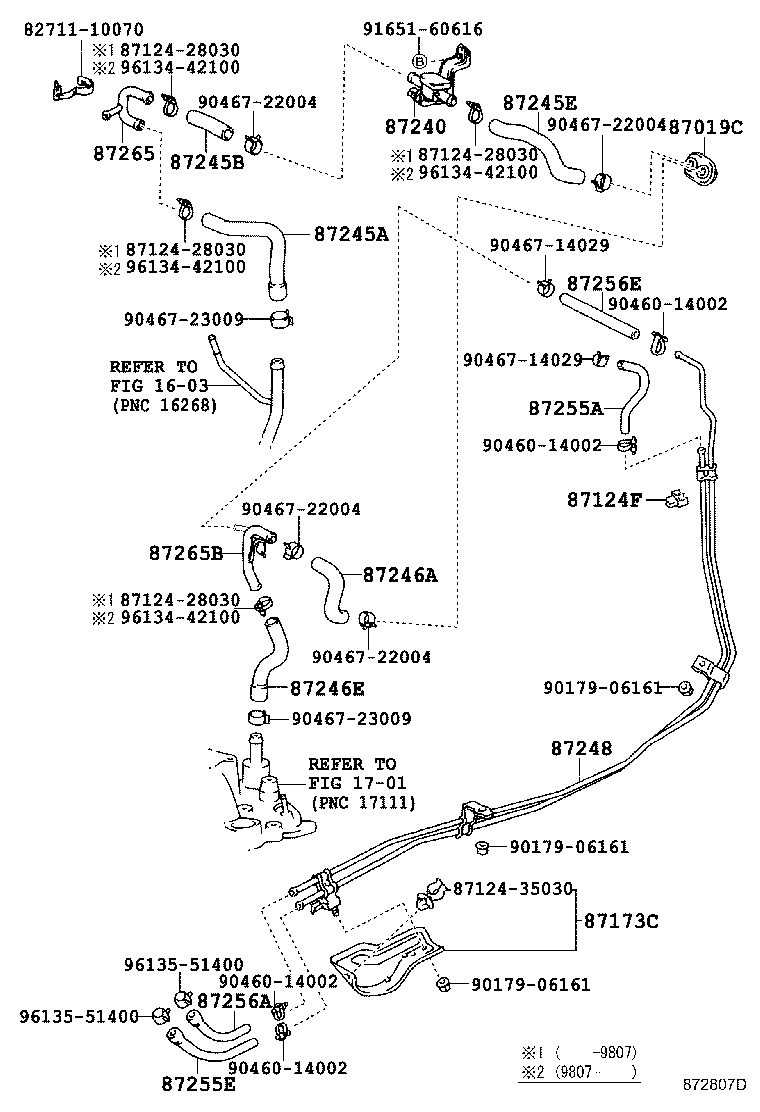

diagram 1603 1701 8271110070 87019C 8712428030 8712428030 8712428030 8712428030 8712435030 87124F 87173C 87240 87245A 87245B 87245E 87246A 87246E 87248 87255A 87255E 87256A 87256E 87265 87265B 9017906161 9017906161 9017906161 9046014002 9046014002 9046014002 9046014002 9046714029 9046714029 9046722004 9046722004 9046722004 9046722004 9046723009 9046723009 9165160616 9613442100 9613442100 9613442100 9613442100 9613551400 9613551400
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01405

KZN185,RZN18#,VZN18#..EFI,TDE

 1
87124F - CLAMP, HEATER HOSE, NO.1
87124-35020

RZN185,VZN185

 1
87124-35110

RZN18#,VZN18#

 1
87173C - PROTECTOR, HEATER
87173-35010

RZN18#,VZN18#

 1
87240 - VALVE ASSY, HEATER WATER
87240-35040

VZN18#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-35580

VZN18#

ｱﾘ(ﾘﾔﾋ-ﾀ),*318

 1
87245B - HOSE, HEATER WATER, INLET B
87245-35590

VZN18#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-35610

VZN18#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35400

VZN18#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-35600

VZN18#

 1
87248 - PIPE SUB-ASSY, WATER
87248-35030

VZN18#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-35740

VZN18#

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-35451

KDN185,KZN185,RZN18#,VZN18#

 1
87245-35450

KZN185,RZN185,VZN185

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-35461

KDN185,KZN185,RZN18#,VZN18#

 1
87245-35460

KZN185,RZN185,VZN185

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99555-10200

VZN18#

*H,L=200

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-35280

VZN185..SSRG

 1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87265-35290

VZN18#

 1
Common parts
82711-10070
87124-28030
87124-35030
90179-06161
90460-14002
90467-14029
90467-22004
90467-23009
91651-60616
96134-42100
96135-51400
Linked diagrams
1603
1701
