VZN185W-GAPGK (1995)
Toyota Hilux Surf

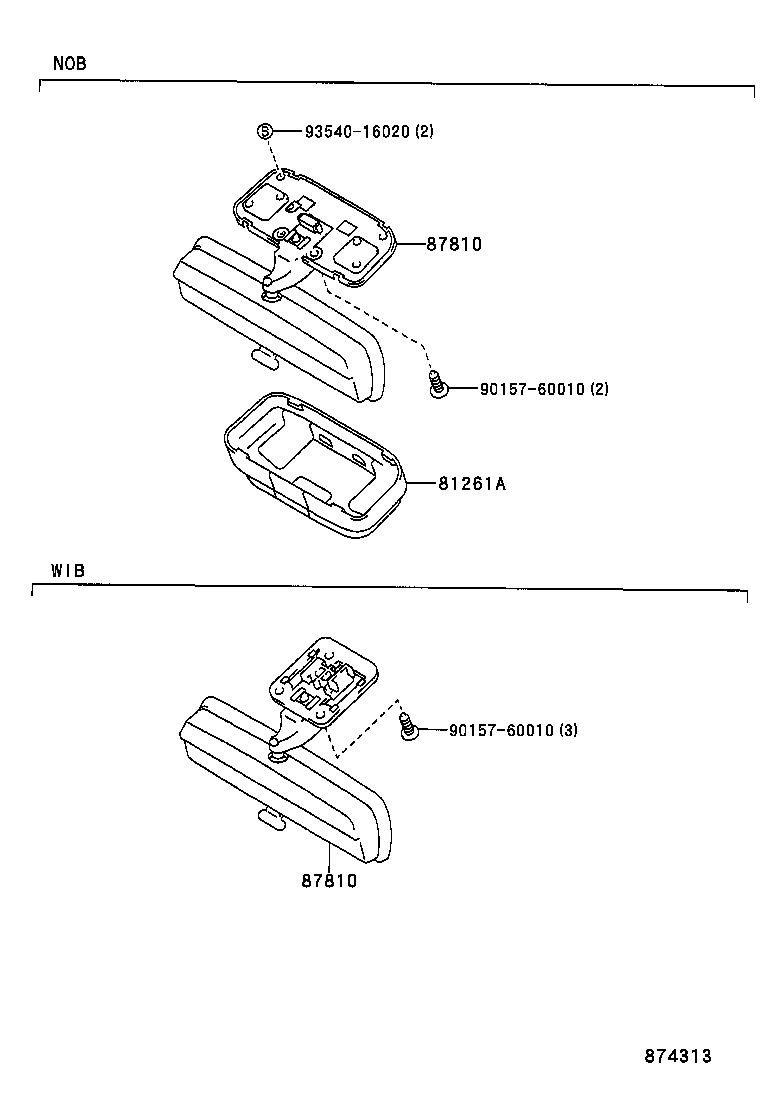

ILLUST NO. 1 OF 4(9511-0008)
ｲﾝﾅ ﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81261A - LENS AND COVER, MAP LAMP | ||||
| 87818-35010B1 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
1 | ||
| 87818-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-35020E0 |
KZN185,VZN185..SSRG ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),OAK,TRIM4# |
1 | ||
| 87810-89141B1 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) OR ｱﾘ(GPS ﾏﾂﾌﾟ ﾊﾟｲﾛﾂﾄ),MOON MIST,TRIM1# |
1 | ||
| 87810-89141B2 |
VZN185;RZN185..WIB..SSRX MD.CHARCOAL,TRIM1# |
1 | ||
| 87810-35020B1 |
KZN185,VZN185..SSRG ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),MOON MIST,TRIM1# |
1 | ||
| 87810-89141B0 |
RZN185..WIB..SSRX;KZN185,VZN185..WIB..4FC ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) OR ｱﾘ(GPS ﾏﾂﾌﾟ ﾊﾟｲﾛﾂﾄ),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 87810-35020B1 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX MOON MIST,TRIM1# |
1 | ||
| 87810-89141E1 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) OAK,TRIM4# |
1 | ||
| 87810-89141E1 |
KZN185,RZN185..SSRV;KZN185,VZN185..WIB..4FC..(EFI,TDI) ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ),OAK,TRIM4# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-35020E0 |
KZN185,VZN185..SSRG ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),OAK,TRIM4# |
1 | ||
| 87810-89141B1 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) OR ｱﾘ(GPS ﾏﾂﾌﾟ ﾊﾟｲﾛﾂﾄ),MOON MIST,TRIM1# |
1 | ||
| 87810-89141B2 |
VZN185;RZN185..WIB..SSRX MD.CHARCOAL,TRIM1# |
1 | ||
| 87810-35020B1 |
KZN185,VZN185..SSRG ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),MOON MIST,TRIM1# |
1 | ||
| 87810-89141B0 |
RZN185..WIB..SSRX;KZN185,VZN185..WIB..4FC ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) OR ｱﾘ(GPS ﾏﾂﾌﾟ ﾊﾟｲﾛﾂﾄ),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 87810-35020B1 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX MOON MIST,TRIM1# |
1 | ||
| 87810-89141E1 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) OAK,TRIM4# |
1 | ||
| 87810-89141E1 |
KZN185,RZN185..SSRV;KZN185,VZN185..WIB..4FC..(EFI,TDI) ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ),OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90157-60010 | ||||
| 93510-16020 | ||||
| 93540-16020 | ||||
ILLUST NO. 3 OF 4(9511- )
ｱｳﾀ ﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87907B - DEVICE SUB-ASSY,FRONT FENDER SIDE VIEW,LH | ||||
| 87907-35030D0 |
KZN185,RZN185,VZN185 RED MM,3K4 |
1 | ||
| 87907-35030K0 |
KZN185,RZN185,VZN185 GRAYISH PURPLE M.M.,926 |
1 | ||
| 87907-35060B0 |
KZN185,RZN185,VZN185 WARM GRAY PEARL ME.,1A5 |
1 | ||
| 87907-35060J1 |
KZN185,RZN185,VZN185 DK.BLUE M.M.,8L7 |
1 | ||
| 87907-35030H0 |
KZN185,RZN185,VZN185 DK.TEAL GREEN MC.,751 |
1 | ||
| 87907-35030J0 |
KZN185,RZN185,VZN185 LT.BLUE M.M.,8L6 |
1 | ||
| 87907-35030B1 |
KZN185,RZN185,VZN185 WARM GRAY PEARL ME,1A5 |
1 | ||
| 87907-35060D0 |
KZN185,RZN185,VZN185 RED MM,3K4 |
1 | ||
| 87907-35060J0 |
KZN185,RZN185,VZN185 LT.BLUE M.M.,8L6 |
1 | ||
| 87907-35030J1 |
KZN185,RZN185,VZN185 DK.BLUE M.M.,8L7 |
1 | ||
| 87907-35060K0 |
KZN185,RZN185,VZN185 GRAYISH PURPLE ME.,926 |
1 | ||
| 87907-35070B0 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 87907-35060H0 |
KZN185,RZN185,VZN185 DK.TEAL GREEN MC.,751 |
1 | ||
| 87907-35070A0 |
KZN185,RZN185,VZN185..WIB WHITE,K82 |
1 | ||
| 87907-35070D0 |
KZN185,RZN185,VZN185..WIB RED MM,K88 |
1 | ||
| 87907-35070G0 |
KZN185,RZN185,VZN185..WIB DK. GREEN MC.,K91 |
1 | ||
| 87907-35070J1 |
KZN185,RZN185,VZN185..WIB BLUE ME.,K93 |
1 | ||
| 87907-35070B0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX SILVER ME.,K73 |
1 | ||
| 87907-35070J0 |
KZN185,RZN185,VZN185..WIB DK.BLUE M.M.,K94 |
1 | ||
| 87907-35070D0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX RED MM,K88 |
1 | ||
| 87907-35070G0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX DK. GREEN MC.,K91 |
1 | ||
| 87907-35070A0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX WHITE,K82 |
1 | ||
| 87907-35070J0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX DK.BLUE M.M.,K94 |
1 | ||
| 87907-35070D0 |
VZN185;KDN185,RZN18#..SSRG,SSRV RED MM,KG2 |
1 | ||
| 87907-35070J1 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX BLUE ME.,K93 |
1 | ||
| 87907-35070B0 |
VZN185;KDN185,RZN18#..SPR,SSRG,SSRV SILVER ME.,K73 |
1 | ||
| 87907-35070F1 |
VZN185;KDN185,RZN18#..SSRG,SSRV CHAMPAGNE M.M.,KG4 |
1 | ||
| 87907-35070H0 |
VZN185;KDN185,RZN18#..SPR,SSRG,SSRV AQUA ME.,KG8 |
1 | ||
| 87907-35070B1 |
VZN185;KDN185,RZN18#..SSRG,SSRV GRAY ME.,KF9 |
1 | ||
| 87907-35070A0 |
VZN185;KDN185,RZN185..SSRG WHITE,K72 |
1 | ||
| 87907-35070J0 |
VZN185;KDN185,RZN18#..SSRG,SSRV DK.BLUE M.M.,KG9 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-35350H0 |
KZN185,VZN185..SSRG DK.TEAL GREEN MC.,751 |
1 | ||
| 87910-35350B0 |
KZN185,VZN185..SSRG WARM GRAY PEARL ME,1A5 |
1 | ||
| 87910-35350D0 |
KZN185,VZN185..SSRG RED MM,3K4 |
1 | ||
| 87910-35350J1 |
KZN185,VZN185..SSRG DK.BLUE M.M,8L7 |
1 | ||
| 87910-35350K0 |
KZN185,VZN185..SSRG GRAYISH PURLE M.M,926 |
1 | ||
| 87910-35350J0 |
KZN185,VZN185..SSRG LT.BLUE M.M,8L6 |
1 | ||
| 87910-35770B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,WARM GRAY PEARL ME.,1A5 |
1 | ||
| 87910-35770J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,LT.BLUE M.M.,8L6 |
1 | ||
| 87910-35770H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.TEAL GREEN MC.,751 |
1 | ||
| 87910-35770J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.BLUE M.M.,8L7 |
1 | ||
| 87910-35770D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,RED MM,3K4 |
1 | ||
| 87910-35770B1 |
KZN185,RZN185,VZN185..WIB ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,SILVER ME.,K73 |
1 | ||
| 87910-35770K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,GRAYISH PURPLE ME.,926 |
1 | ||
| 87910-35770A0 |
KZN185,RZN185,VZN185..WIB ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,WHITE,K82 |
1 | ||
| 87910-35770D0 |
KZN185,RZN185,VZN185..WIB ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,RED MM,K88 |
1 | ||
| 87910-35770G0 |
KZN185,RZN185,VZN185..WIB ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK. GREEN MC.,K91 |
1 | ||
| 87910-35770J1 |
KZN185,RZN185,VZN185..WIB ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.BLUE M.M.,K94 |
1 | ||
| 87910-35770J2 |
KZN185,RZN185,VZN185..WIB ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,BLUE ME.,K93 |
1 | ||
| 87910-35770A0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,WHITE,K82 |
1 | ||
| 87910-35770G0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK. GREEN MC.,K91 |
1 | ||
| 87910-35770D0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,RED MM,K88 |
1 | ||
| 87910-35770J2 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,BLUE ME.,K93 |
1 | ||
| 87910-35770B1 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,SILVER ME.,K73 |
1 | ||
| 87910-35770J1 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.BLUE M.M.,K94 |
1 | ||
| 87910-35770A0 |
VZN185;KDN185,RZN185..SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,WHITE,K72 |
1 | ||
| 87910-35770H1 |
VZN185;KDN185,RZN18#..SPR,SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,AQUA ME.,KG8 |
1 | ||
| 87910-35770B1 |
VZN185;KDN185,RZN18#..SPR,SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,SILVER ME.,K73 |
1 | ||
| 87910-35770J1 |
VZN185;KDN185,RZN185..SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.BLUE M.M.,KG9 |
1 | ||
| 87910-35770D0 |
VZN185;KDN185,RZN185..SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,RED MM,KG2 |
1 | ||
| 87910-35770F1 |
VZN185;KDN185,RZN185..SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,CHAMPAGNE M.M.,KG4 |
1 | ||
| 87910-35770B2 |
VZN185;KDN185,RZN185..SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,GRAY ME.,KF9 |
1 | ||
| 87917B - MIRROR, OUTER REAR VIEW, RH | ||||
| 87917-35270 |
KZN185,RZN185,VZN185 |
1 | ||
| 87931-35540 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-35320D0 |
KZN185,VZN185..SSRG RED MM,3K4 |
1 | ||
| 87940-35320B0 |
KZN185,VZN185..SSRG WARM GRAY PEARL ME,1A5 |
1 | ||
| 87940-35320J1 |
KZN185,VZN185..SSRG DK.BLUE M.M,8L7 |
1 | ||
| 87940-35320H0 |
KZN185,VZN185..SSRG DK.TEAL GREEN MC.,751 |
1 | ||
| 87940-35320J0 |
KZN185,VZN185..SSRG LT.BLUE M.M,8L6 |
1 | ||
| 87940-35320K0 |
KZN185,VZN185..SSRG GRAYISH PURPLE M.M,926 |
1 | ||
| 87940-35720J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.BLUE M.M.,8L7 |
1 | ||
| 87940-35720J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,LT.BLUE M.M.,8L6 |
1 | ||
| 87940-35720D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,RED MM,3K4 |
1 | ||
| 87940-35720B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,WARM GRAY PEARL ME.,1A5 |
1 | ||
| 87940-35720K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,GRAYISH PURPLE ME.,926 |
1 | ||
| 87940-35720H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.TEAL GREEN MC.,751 |
1 | ||
| 87940-35720A0 |
KZN185,RZN185,VZN185..WIB ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,WHITE,K82 |
1 | ||
| 87940-35720B1 |
KZN185,RZN185,VZN185..WIB ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,SILVER ME.,K73 |
1 | ||
| 87940-35720G0 |
KZN185,RZN185,VZN185..WIB ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK. GREEN MC.,K91 |
1 | ||
| 87940-35720D0 |
KZN185,RZN185,VZN185..WIB ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,RED MM,K88 |
1 | ||
| 87940-35720A0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,WHITE,K82 |
1 | ||
| 87940-35720J1 |
KZN185,RZN185,VZN185..WIB ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.BLUE M.M.,K94 |
1 | ||
| 87940-35720J2 |
KZN185,RZN185,VZN185..WIB ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,BLUE ME.,K93 |
1 | ||
| 87940-35720B1 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,SILVER ME.,K73 |
1 | ||
| 87940-35720G0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK. GREEN MC.,K91 |
1 | ||
| 87940-35720J1 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.BLUE M.M.,K94 |
1 | ||
| 87940-35720D0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,RED MM,K88 |
1 | ||
| 87940-35720J2 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,BLUE ME.,K93 |
1 | ||
| 87940-35720B1 |
VZN185;KDN185,RZN18#..SPR,SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,SILVER ME.,K73 |
1 | ||
| 87940-35720D0 |
VZN185;KDN185,RZN185..SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,RED MM,KG2 |
1 | ||
| 87940-35720A0 |
VZN185;KDN185,RZN185..SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,WHITE,K72 |
1 | ||
| 87940-35720F1 |
VZN185;KDN185,RZN185..SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,CHAMPAGNE M.M.,KG4 |
1 | ||
| 87940-35720J1 |
VZN185;KDN185,RZN185..SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.BLUE M.M.,KG9 |
1 | ||
| 87940-35720H1 |
VZN185;KDN185,RZN18#..SPR,SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,AQUA ME.,KG8 |
1 | ||
| 87940-35720B2 |
VZN185;KDN185,RZN185..SSRG ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,GRAY ME.,KF9 |
1 | ||
| 87944 - COVER, FRONT FENDER SIDE VIEW DEVICE, LH | ||||
| 87944-35020B1 |
KZN185,RZN185,VZN185 WARM GRAY PEARL ME,1A5 |
1 | ||
| 87944-35020D0 |
KZN185,RZN185,VZN185 RED MM,3K4 |
1 | ||
| 87944-35020A1 |
KZN185,RZN185,VZN185..WIB WHITE,K82 |
1 | ||
| 87944-35020K0 |
KZN185,RZN185,VZN185 GRAYISH PURPLE M.M.,926 |
1 | ||
| 87944-35020J1 |
KZN185,RZN185,VZN185 DK.BLUE M.M.,8L7 |
1 | ||
| 87944-35020J0 |
KZN185,RZN185,VZN185 LT.BLUE M.M.,8L6 |
1 | ||
| 87944-35020H0 |
KZN185,RZN185,VZN185 DK.TEAL GREEN MC.,751 |
1 | ||
| 87944-35020G2 |
KZN185,RZN185,VZN185..WIB DK. GREEN MC.,K91 |
1 | ||
| 87944-35020B2 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 87944-35020D0 |
KZN185,RZN185,VZN185..WIB RED MM,K88 |
1 | ||
| 87944-35020J1 |
KZN185,RZN185,VZN185..WIB DK.BLUE M.M.,K94 |
1 | ||
| 87944-35020J2 |
KZN185,RZN185,VZN185..WIB BLUE ME.,K93 |
1 | ||
| 87944-35020B2 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX SILVER ME.,K73 |
1 | ||
| 87944-35020D0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX RED MM,K88 |
1 | ||
| 87944-35020A1 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX WHITE,K82 |
1 | ||
| 87944-35020J2 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX BLUE ME.,K93 |
1 | ||
| 87944-35020A1 |
VZN185;KDN185,RZN185..SSRG WHITE,K72 |
1 | ||
| 87944-35020B2 |
VZN185;KDN185,RZN18#..SPR,SSRG,SSRV SILVER ME.,K73 |
1 | ||
| 87944-35020J1 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX DK.BLUE M.M.,K94 |
1 | ||
| 87944-35020D0 |
VZN185;KDN185,RZN18#..SSRG,SSRV RED MM,KG2 |
1 | ||
| 87944-35020H1 |
VZN185;KDN185,RZN18#..SPR,SSRG,SSRV AQUA ME.,KG8 |
1 | ||
| 87944-35020J1 |
VZN185;KDN185,RZN18#..SSRG,SSRV DK.BLUE M.M.,KG9 |
1 | ||
| 87944-35020B4 |
VZN185;KDN185,RZN18#..SSRG,SSRV GRAY ME.,KF9 |
1 | ||
| 87944-35020G2 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX DK. GREEN MC.,K91 |
1 | ||
| 87944-35020F1 |
VZN185;KDN185,RZN18#..SSRG,SSRV CHAMPAGNE M.M.,KG4 |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87961-35510 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 87947-35260 |
KZN185,RZN185,VZN185 |
1 | ||
| Common parts | ||||
| 82711-3F190 | ||||
| 90333-35004 | ||||
| 91511-60616 | ||||
| 91633-B0625 | ||||
ILLUST NO. 4 OF 4(9511- )
ﾊﾟﾜ-ﾘﾔｱﾝﾀﾞ-ﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76091A - DEFLECTOR SUB-ASSY, RR UPR | ||||
| 76091-35010D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX RED MM,3K4 |
1 | ||
| 76091-35010J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX LT.BLUE M.M.,8L6 |
1 | ||
| 76091-35010B1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX WARM GRAY PEARL ME,1A5 |
1 | ||
| 76091-35010K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX GRAYISH PURPLE M.M.,926 |
1 | ||
| 76091-35010J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 76091-35010A0 |
KZN185,RZN185,VZN185..SSRG WHITE,K82 |
1 | ||
| 76091-35010H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 76091-35010B2 |
KDN185,KZN185,RZN185,VZN185..SSRG SILVER ME.,K73 |
1 | ||
| 76091-35010F0 |
KDN185,RZN185,VZN185..SSRG CHAMPAGNE M.M.,KG4 |
1 | ||
| 76091-35010A0 |
KDN185,RZN185,VZN185..SSRG WHITE,K72 |
1 | ||
| 76091-35010D0 |
KZN185,RZN185,VZN185..SSRG RED MM,K88 |
1 | ||
| 76091-35010D0 |
KDN185,RZN185,VZN185..SSRG RED MM,KG2 |
1 | ||
| 76091-35010G0 |
KZN185,RZN185,VZN185..SSRG DK. GREEN MC.,K91 |
1 | ||
| 76091-35010J1 |
KDN185,RZN185,VZN185..SSRG DK.BLUE M.M.,KG9 |
1 | ||
| 76091-35010J1 |
KZN185,RZN185,VZN185..SSRG DK.BLUE M.M.,K94 |
1 | ||
| 76091-35010H1 |
KDN185,RZN185,VZN185..SSRG AQUA ME.,KG8 |
1 | ||
| 76091-35010B3 |
KDN185,RZN185,VZN185..SSRG GRAY ME.,KF9 |
1 | ||
| 76091-35010J2 |
KZN185,RZN185,VZN185..SSRG BLUE ME.,K93 |
1 | ||
| 76092A - DEFLECTOR SUB-ASSY, RR LWR | ||||
| 76092-35011B1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX WARM GRAY PEARL ME.,1A5 |
1 | ||
| 76092-35011H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 76092-35011J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX LT.BLUE M.M.,8L6 |
1 | ||
| 76092-35011J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 76092-35011K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX GRAYISH PURPLE ME.,926 |
1 | ||
| 76092-35011D0 |
KZN185,RZN185,VZN185..SSRG RED MM,K88 |
1 | ||
| 76092-35011A0 |
KDN185,RZN185,VZN185..SSRG WHITE,K72 |
1 | ||
| 76092-35011A0 |
KZN185,RZN185,VZN185..SSRG WHITE,K82 |
1 | ||
| 76092-35011F0 |
KDN185,RZN185,VZN185..SSRG CHAMPAGNE M.M.,KG4 |
1 | ||
| 76092-35011J1 |
KZN185,RZN185,VZN185..SSRG DK.BLUE M.M.,K94 |
1 | ||
| 76092-35011H1 |
KDN185,RZN185,VZN185..SSRG AQUA ME.,KG8 |
1 | ||
| 76092-35011B2 |
KDN185,KZN185,RZN185,VZN185..SSRG SILVER ME.,K73 |
1 | ||
| 76092-35011G0 |
KZN185,RZN185,VZN185..SSRG DK. GREEN MC.,K91 |
1 | ||
| 76092-35011J1 |
KDN185,RZN185,VZN185..SSRG DK.BLUE M.M.,KG9 |
1 | ||
| 76092-35011D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX RED MM,3K4 |
1 | ||
| 76092-35011D0 |
KDN185,RZN185,VZN185..SSRG RED MM,KG2 |
1 | ||
| 76092-35011J2 |
KZN185,RZN185,VZN185..SSRG BLUE ME.,K93 |
1 | ||
| 76092-35011B3 |
KDN185,RZN185,VZN185..SSRG GRAY ME.,KF9 |
1 | ||
| 76893B - COVER, REAR DEFLECTOR STAY, RH | ||||
| 76893-35010J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX LT.BLUE M.M.,8L6 |
1 | ||
| 76893-35010D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX RED MM,3K4 |
1 | ||
| 76893-35010K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX GRAYISH PURPLE M.M.,926 |
1 | ||
| 76893-35010J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 76893-35010J2 |
KZN185,RZN185,VZN185..SSRG BLUE ME.,K93 |
1 | ||
| 76893-35010B2 |
KDN185,KZN185,RZN185,VZN185..SSRG SILVER ME.,K73 |
1 | ||
| 76893-35010D0 |
KZN185,RZN185,VZN185..SSRG RED MM,K88 |
1 | ||
| 76893-35010G0 |
KZN185,RZN185,VZN185..SSRG DK. GREEN MC.,K91 |
1 | ||
| 76893-35010B1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX WARM GRAY PEARL ME,1A5 |
1 | ||
| 76893-35010A0 |
KZN185,RZN185,VZN185..SSRG WHITE,K82 |
1 | ||
| 76893-35010B3 |
KDN185,RZN185,VZN185..SSRG GRAY ME.,KF9 |
1 | ||
| 76893-35010J1 |
KZN185,RZN185,VZN185..SSRG DK.BLUE M.M.,K94 |
1 | ||
| 76893-35010H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 76893-35010F0 |
KDN185,RZN185,VZN185..SSRG CHAMPAGNE M.M.,KG4 |
1 | ||
| 76893-35010D0 |
KDN185,RZN185,VZN185..SSRG RED MM,KG2 |
1 | ||
| 76893-35010A0 |
KDN185,RZN185,VZN185..SSRG WHITE,K72 |
1 | ||
| 76893-35010H1 |
KDN185,RZN185,VZN185..SSRG AQUA ME.,KG8 |
1 | ||
| 76893-35010J1 |
KDN185,RZN185,VZN185..SSRG DK.BLUE M.M.,KG9 |
1 | ||
| 76894A - COVER, REAR DEFLECTOR STAY, LH | ||||
| 76894-35010B1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX WARM GRAY PEARL ME,1A5 |
1 | ||
| 76894-35010H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 76894-35010J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 76894-35010J1 |
KZN185,RZN185,VZN185..SSRG DK.BLUE M.M.,K94 |
1 | ||
| 76894-35010J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX LT.BLUE M.M.,8L6 |
1 | ||
| 76894-35010D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX RED MM,3K4 |
1 | ||
| 76894-35010K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX GRAYISH PURPLE M.M.,926 |
1 | ||
| 76894-35010G0 |
KZN185,RZN185,VZN185..SSRG DK. GREEN MC.,K91 |
1 | ||
| 76894-35010A0 |
KDN185,RZN185,VZN185..SSRG WHITE,K72 |
1 | ||
| 76894-35010J2 |
KZN185,RZN185,VZN185..SSRG BLUE ME.,K93 |
1 | ||
| 76894-35010H1 |
KDN185,RZN185,VZN185..SSRG AQUA ME.,KG8 |
1 | ||
| 76894-35010B2 |
KDN185,KZN185,RZN185,VZN185..SSRG SILVER ME.,K73 |
1 | ||
| 76894-35010A0 |
KZN185,RZN185,VZN185..SSRG WHITE,K82 |
1 | ||
| 76894-35010J1 |
KDN185,RZN185,VZN185..SSRG DK.BLUE M.M.,KG9 |
1 | ||
| 76894-35010D0 |
KZN185,RZN185,VZN185..SSRG RED MM,K88 |
1 | ||
| 76894-35010B3 |
KDN185,RZN185,VZN185..SSRG GRAY ME.,KF9 |
1 | ||
| 76894-35010F0 |
KDN185,RZN185,VZN185..SSRG CHAMPAGNE M.M.,KG4 |
1 | ||
| 76894-35010D0 |
KDN185,RZN185,VZN185..SSRG RED MM,KG2 |
1 | ||
| 87086 - MIRROR SUB-ASSY, OUTER UNDER RR VIEW | ||||
| 87086-35010B1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX WARM GRAY PEARL ME,1A5 |
1 | ||
| 87086-35010J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 87086-35010H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 87086-35010G0 |
KZN185,RZN185,VZN185..SSRG DK. GREEN MC.,K91 |
1 | ||
| 87086-35010D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX RED MM,3K4 |
1 | ||
| 87086-35010K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX GRAYISH PURPLE M.M.,926 |
1 | ||
| 87086-35010J1 |
KZN185,RZN185,VZN185..SSRG DK.BLUE M.M.,K94 |
1 | ||
| 87086-35010B2 |
KDN185,KZN185,RZN185,VZN185..SSRG SILVER ME.,K73 |
1 | ||
| 87086-35010J1 |
KDN185,RZN185,VZN185..SSRG DK.BLUE M.M.,KG9 |
1 | ||
| 87086-35010D0 |
KDN185,RZN185,VZN185..SSRG RED MM,KG2 |
1 | ||
| 87086-35010A0 |
KDN185,RZN185,VZN185..SSRG WHITE,K72 |
1 | ||
| 87086-35010H1 |
KDN185,RZN185,VZN185..SSRG AQUA ME.,KG8 |
1 | ||
| 87086-35010A0 |
KZN185,RZN185,VZN185..SSRG WHITE,K82 |
1 | ||
| 87086-35010J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX LT.BLUE M.M.,8L6 |
1 | ||
| 87086-35010J2 |
KZN185,RZN185,VZN185..SSRG BLUE ME.,K93 |
1 | ||
| 87086-35010B3 |
KDN185,RZN185,VZN185..SSRG GRAY ME.,KF9 |
1 | ||
| 87086-35010D0 |
KZN185,RZN185,VZN185..SSRG RED MM,K88 |
1 | ||
| 87086-35010F0 |
KDN185,RZN185,VZN185..SSRG CHAMPAGNE M.M.,KG4 |
1 | ||
| 87088 - ARM SUB-ASSY, OUTER UNDER REAR VIEW MIRROR | ||||
| 87088-35021 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 87088-35030 |
KDN185,KZN185,RZN185,VZN185..SSRG |
1 | ||
| 87088-35020 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 87974 - MIRROR, OUTER UNDER RR VIEW | ||||
| 87974-35010 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 87974-35010 |
KDN185,KZN185,RZN185,VZN185..SSRG |
1 | ||
| Common parts | ||||
| 76867-35010 | ||||
| 76868-35010 | ||||
| 90109-06316 | ||||
| 90119-06797 | ||||
| 90119-06837 | ||||
| 90159-50350 | ||||
| 90176-06023 | ||||
| 90202-07027 | ||||
| 90386-07030 | ||||
| 90387-05021 | ||||
| 90387-05022 | ||||
| 90560-07027 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8117 | ||||
ILLUST NO. 2 OF 4(0008- )
ｲﾝﾅ ﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81261A - LENS AND COVER, MAP LAMP | ||||
| 87818-35010B1 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
1 | ||
| 87818-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-35020E0 |
KZN185,VZN185..SSRG ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),OAK,TRIM4# |
1 | ||
| 87810-89141B1 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) OR ｱﾘ(GPS ﾏﾂﾌﾟ ﾊﾟｲﾛﾂﾄ),MOON MIST,TRIM1# |
1 | ||
| 87810-89141B2 |
VZN185;RZN185..WIB..SSRX MD.CHARCOAL,TRIM1# |
1 | ||
| 87810-35020B1 |
KZN185,VZN185..SSRG ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),MOON MIST,TRIM1# |
1 | ||
| 87810-89141B0 |
RZN185..WIB..SSRX;KZN185,VZN185..WIB..4FC ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) OR ｱﾘ(GPS ﾏﾂﾌﾟ ﾊﾟｲﾛﾂﾄ),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 87810-35020B1 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX MOON MIST,TRIM1# |
1 | ||
| 87810-89141E1 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) OAK,TRIM4# |
1 | ||
| 87810-89141E1 |
KZN185,RZN185..SSRV;KZN185,VZN185..WIB..4FC..(EFI,TDI) ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ),OAK,TRIM4# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-35020E0 |
KZN185,VZN185..SSRG ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),OAK,TRIM4# |
1 | ||
| 87810-89141B1 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) OR ｱﾘ(GPS ﾏﾂﾌﾟ ﾊﾟｲﾛﾂﾄ),MOON MIST,TRIM1# |
1 | ||
| 87810-89141B2 |
VZN185;RZN185..WIB..SSRX MD.CHARCOAL,TRIM1# |
1 | ||
| 87810-35020B1 |
KZN185,VZN185..SSRG ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),MOON MIST,TRIM1# |
1 | ||
| 87810-89141B0 |
RZN185..WIB..SSRX;KZN185,VZN185..WIB..4FC ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) OR ｱﾘ(GPS ﾏﾂﾌﾟ ﾊﾟｲﾛﾂﾄ),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 87810-35020B1 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX MOON MIST,TRIM1# |
1 | ||
| 87810-89141E1 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) OAK,TRIM4# |
1 | ||
| 87810-89141E1 |
KZN185,RZN185..SSRV;KZN185,VZN185..WIB..4FC..(EFI,TDI) ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ),OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90157-60010 | ||||
| 93540-16020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
