VZN185W-GAPGK (1995)

Toyota Hilux Surf

Production Nov 1995 - Nov 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9807- )WIB

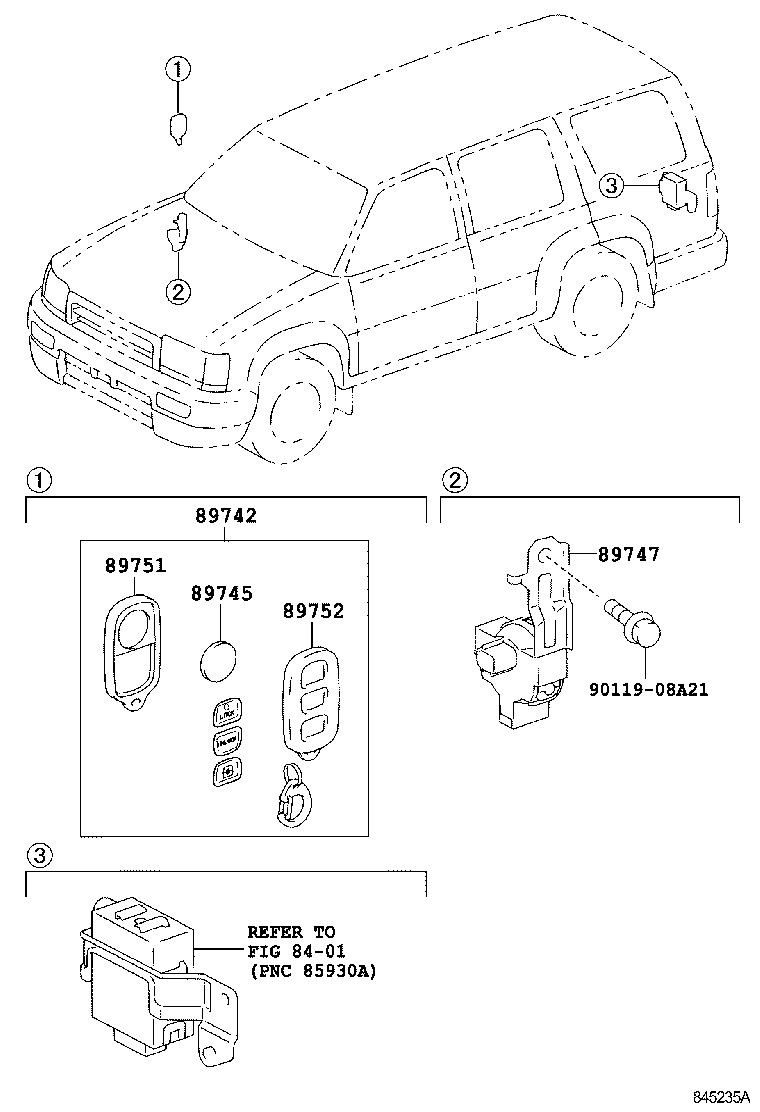

Click highlighted areas on diagram

diagram 8401 89742 89745 89747 89751 89752 9011908A21
Part # Description Qty Price
89742 - TRANSMITTER, DOOR CONTROL
89742-35010

KDN185,KZN185,RZN18#,VZN18#..WIB

 1
89745 - BATTERY, TRANSMITTER
89745-50010

KDN185,KZN185,RZN18#,VZN18#..WIB

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-35010

KDN185,KZN185,RZN18#,VZN18#..WIB

 1
89751 - COVER, TRANSMITTER HOUSING
89751-50120

KDN185,KZN185,RZN18#,VZN18#..WIB

 1
89752 - CASE, TRANSMITTER HOUSING
89752-50030

KDN185,KZN185,RZN18#,VZN18#..WIB

 1
Common parts
90119-08A21
Linked diagrams
8401
