VZN185W-GAPGK (1995)

Toyota Hilux Surf

Production Nov 1995 - Nov 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )VZN18#

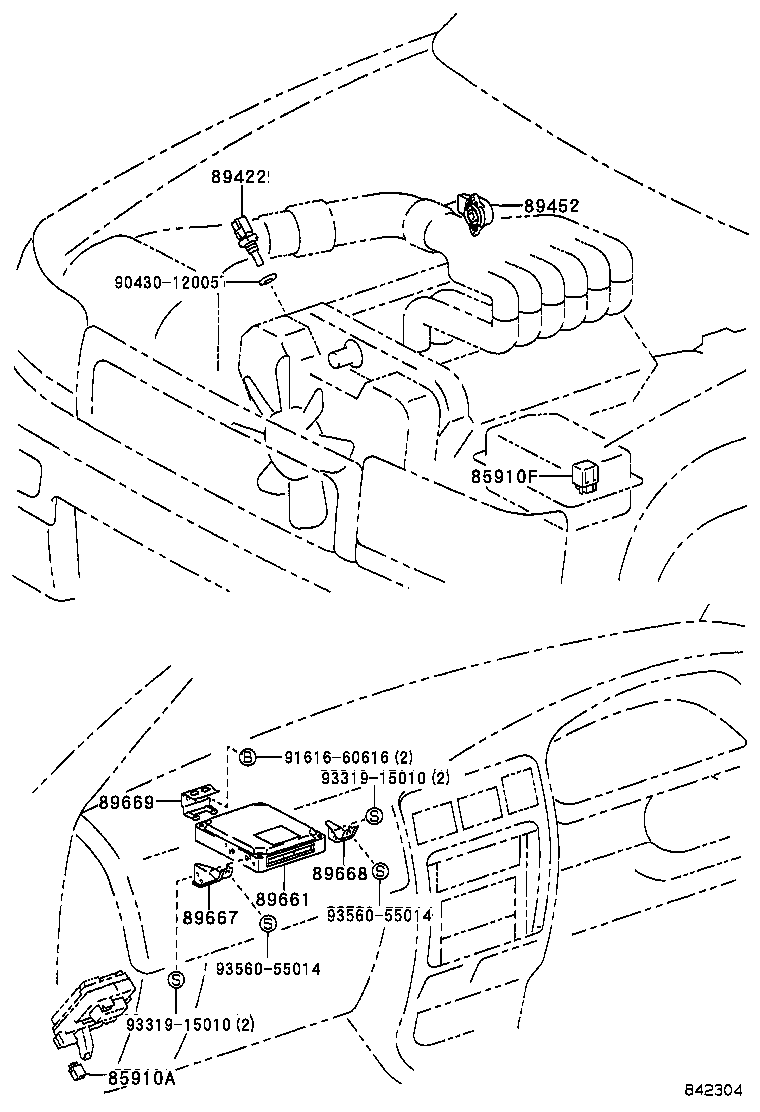

Click highlighted areas on diagram

diagram 85910A 85910F 89422 89452 89661 89667 89668 89669 9043012005 9161660616 9331915010 9331915010 9356055014 9356055014
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

RZN18#,VZN18#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

RZN18#,VZN18#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

RZN18#,VZN18#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-35020

VZN18#

 1
89452-35020

RZN18#,VZN185

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3D130

VZN18#

DENSO

 1
89666-35400

VZN185

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-35070

RZN18#,VZN18#

 1
89667-35120

RZN18#,VZN185

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-35150

RZN18#,VZN185

 1
89668-35100

VZN185

 1
89668-35100

RZN18#,VZN18#

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-35050

RZN18#,VZN18#

 1
89669-35060

RZN18#,VZN185

 1
Common parts
90430-12005
91616-60616
93319-15010
93560-55014
