VZN185W-GAPGK (1995)

Toyota Hilux Surf

Production Nov 1995 - Nov 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )SSRG,SSRV,SSRX

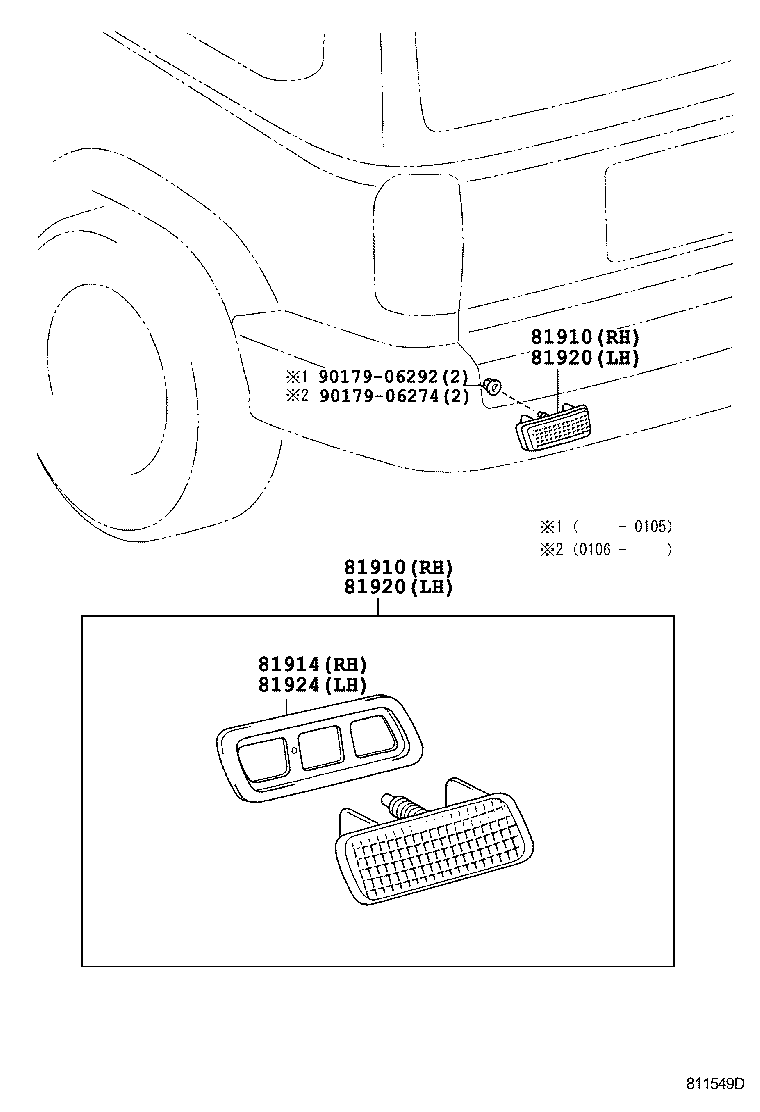

Click highlighted areas on diagram

diagram 81910 81910 81914 81920 81920 81924 9017906274 9017906292
Part # Description Qty Price
81910 - REFLECTOR ASSY, REFLEX, RH
81910-35050

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81910 - REFLECTOR ASSY, REFLEX, RH
81910-35050

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81914 - GASKET, REFLEX REFLECTOR BODY, RH
81914-35050

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81920-35040

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81920-35040

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81924 - GASKET, REFLEX REFLECTOR BODY, LH
81924-35040

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
Common parts
90179-06274
90179-06292
