VZN185W-GAPGK (1995)

Toyota Hilux Surf

Production Nov 1995 - Nov 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )VZN18#

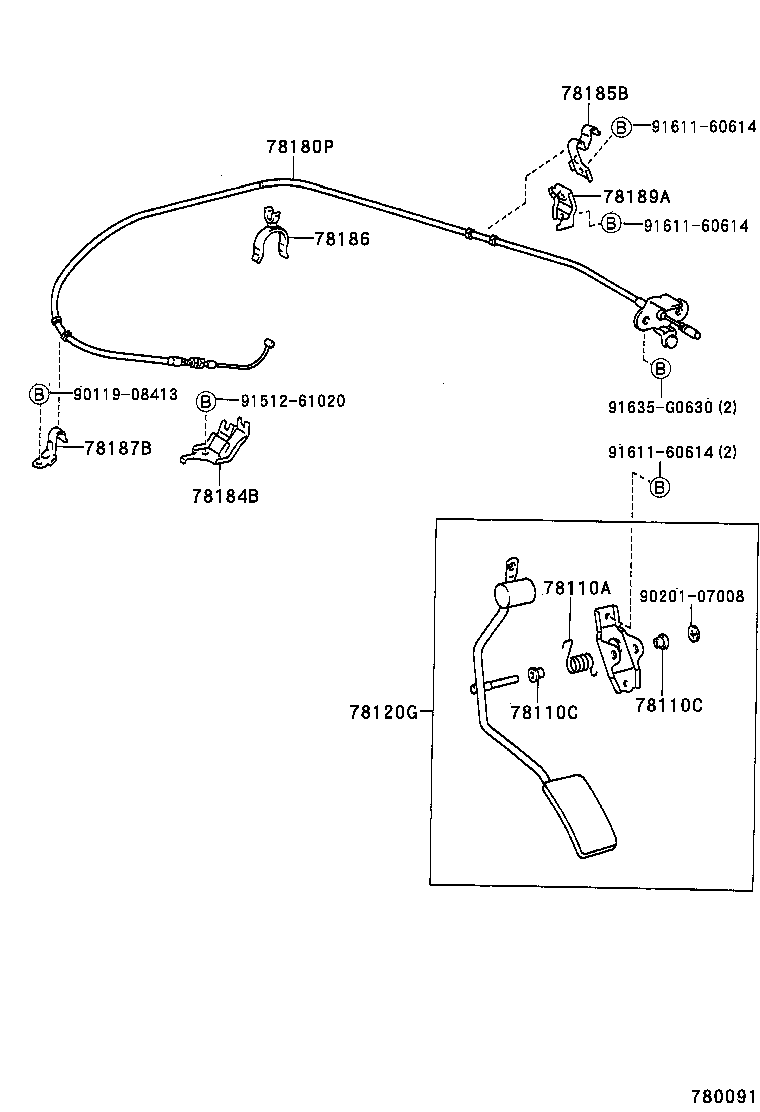

Click highlighted areas on diagram

diagram 78110A 78110C 78110C 78120G 78180P 78184B 78185B 78186 78187B 78189A 9011908413 9020107008 9151261020 9161160614 9161160614 9161160614 91635G0630
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03089

VZN18#

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08063

KZN185,RZN18#,VZN18#

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08063

KZN185,RZN18#,VZN18#

 2
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-35310

VZN18#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-35230

VZN18#

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-35080

VZN18#

 1
78185B - BRACKET, ACCEL CONTROL NO.6 ROD, REAR
78185-35020

KZN185,VZN185

 1
78185-35020

VZN18#

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-35060

VZN18#

 1
78187B - BRACKET, ACCELERATOR PULL BACK SPRING
78187-35010

VZN18#

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-35010

KZN185,RZN185,VZN185

 1
78189-35010

RZN18#,VZN18#

 1
Common parts
90119-08413
90201-07008
91512-61020
91611-60614
91635-G0630
