VZN185W-GAPGK (1995)
Toyota Hilux Surf
(9511-9807)
ｱﾘ(ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-ｶﾞ-ﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52403A - PAD SUB-ASSY, FRONT BUMPER GUARD | ||||
| 52403-35020B0 |
KZN185,RZN185,VZN185 WARM GRAY PEAL ME,1A5 |
1 | ||
| 52403-35020B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEAL ME,1A5 |
1 | ||
| 52403-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52403-35010 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 52403-35020D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52401-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52401-35020 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 52441 - BASE, FRONT BUMPER GUARD, NO.1 RH | ||||
| 52441-35030 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52441-35030 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 52442 - BASE, FRONT BUMPER GUARD, NO.1 LH | ||||
| 52442-35030 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 52442-35030 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52492 - BOLT, BUMPER PAD, NO.2 | ||||
| 52492-35010 |
KZN185,RZN185,VZN185..WIB |
2 | ||
| 52492-35010 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
2 | ||
| 52492A - BOLT, BUMPER PAD, NO.3 | ||||
| 52492-35020 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
2 | ||
| 52492-35020 |
KZN185,RZN185,VZN185..WIB |
2 | ||
| Common parts | ||||
| 52425-35020 | ||||
| 90119-10713 | ||||
| 90179-12147 | ||||
| 90467-06133C0 | ||||
| Linked diagrams | ||||
| 5152 | ||||

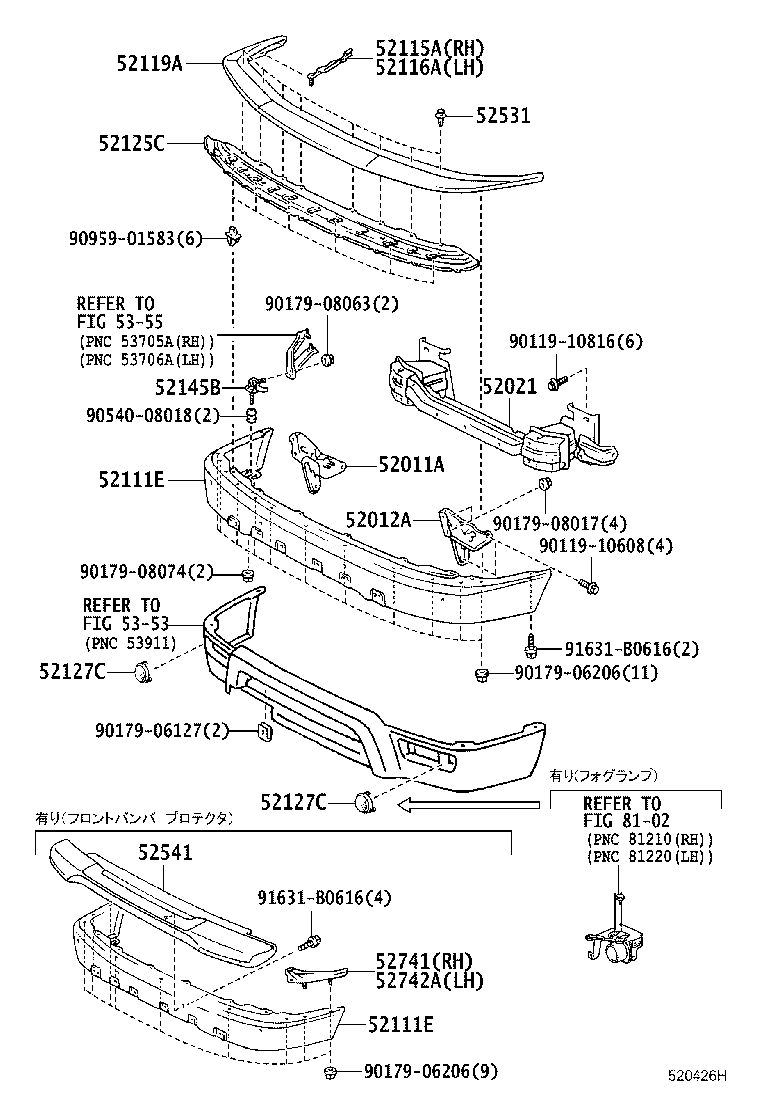

(9807- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-35070 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 52141-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52142-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 52012-35070 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-35020 |
KDN185,KZN185,RZN18#,VZN185..SSR,SSRG,SSRV,SSRX |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52101-35330 |
KZN185,RZN185,VZN185..WIB 塗装不要 |
1 | ||
| 52101-35350D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52101-35350B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52101-35550B1 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX SILVER ME.,K73 |
1 | ||
| 52101-35560B1 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 52101-35550B2 |
KZN185,RZN185,VZN185..WIB BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 52101-35550B1 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 52101-35560B0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),SILVER ME.,K73 |
1 | ||
| 52101-35550B3 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KG2 ,KG9 |
1 | ||
| 52101-35560F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),CHAMPAGNE M.M.,KG4 |
1 | ||
| 52101-35550B3 |
VZN185;KDN185,RZN18#..SSRG,SSRV GRAY ME.,KF9 ,KG2 ,KG9 |
1 | ||
| 52101-35560B0 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),SILVER ME.,KG8 ,K72 ,K73 |
1 | ||
| 52101-35550F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) CHAMPAGNE M.M.,KG4 |
1 | ||
| 52101-35550B1 |
VZN185;KDN185,RZN185..SSRG SILVER ME.,KG8 ,K72 ,K73 |
1 | ||
| 52101-35560B2 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),GRAY ME.,KG2 ,KG9 |
1 | ||
| 52101-35560B2 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),GRAY ME.,KF9 ,KG2 ,KG9 |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52101-35330 |
KZN185,RZN185,VZN185..WIB 塗装不要 |
1 | ||
| 52101-35350D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52101-35350B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52101-35550B1 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX SILVER ME.,K73 |
1 | ||
| 52101-35560B1 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 52101-35550B2 |
KZN185,RZN185,VZN185..WIB BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 52101-35550B1 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 52101-35560B0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),SILVER ME.,K73 |
1 | ||
| 52101-35550B3 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KG2 ,KG9 |
1 | ||
| 52101-35560F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),CHAMPAGNE M.M.,KG4 |
1 | ||
| 52101-35550B3 |
VZN185;KDN185,RZN18#..SSRG,SSRV GRAY ME.,KF9 ,KG2 ,KG9 |
1 | ||
| 52101-35560B0 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),SILVER ME.,KG8 ,K72 ,K73 |
1 | ||
| 52101-35550F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) CHAMPAGNE M.M.,KG4 |
1 | ||
| 52101-35550B1 |
VZN185;KDN185,RZN185..SSRG SILVER ME.,KG8 ,K72 ,K73 |
1 | ||
| 52101-35560B2 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),GRAY ME.,KG2 ,KG9 |
1 | ||
| 52101-35560B2 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),GRAY ME.,KF9 ,KG2 ,KG9 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-35090 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-35080 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-35030B1 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 52119-35030B2 |
KZN185,RZN185,VZN185..WIB BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 52119-35030B3 |
VZN185;KDN185,RZN18#..SSRG,SSRV GRAY ME.,KG2 ,KG9 |
1 | ||
| 52119-35030B1 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX SILVER ME.,K73 |
1 | ||
| 52119-35030B1 |
VZN185;KDN185,RZN185..SSRG SILVER ME.,KG8 ,K72 ,K73 |
1 | ||
| 52119-35030F0 |
VZN185;KDN185,RZN18#..SSRG,SSRV CHAMPAGNE M.M.,KG4 |
1 | ||
| 52119-35020 |
KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 52119-35030B3 |
VZN185;KDN185,RZN18#..SSRG,SSRV GRAY ME.,KF9 ,KG2 ,KG9 |
1 | ||
| 52125C - EXTENSION, FRONT BUMPER REINFORCEMENT | ||||
| 52125-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-35020 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-35020 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 52145B - BRACKET, FRONT BUMPER SIDE MOUNTING | ||||
| 52146-35040 |
KDN185,KZN185,RZN18#,VZN18# 左側 |
1 | ||
| 52145-35040 |
KDN185,KZN185,RZN18#,VZN18# 右側 |
1 | ||
| 52146-35030 |
KZN185,RZN185,VZN185 左側 |
1 | ||
| 52145-35030 |
KZN185,RZN185,VZN185 右側 |
1 | ||
| 52531 - RETAINER, BUMPER FILLER | ||||
| 52531-35010B0 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX MEDIUM GRAY,K73 ,K82 ,K88 ,K91 ,K93 ,K94 |
8 | ||
| 52531-35010C0 |
VZN185;RZN185..SSRG BLACK,KG2 ,KG4 ,KG9 ,K72 ,K73 |
8 | ||
| 52531-35010B0 |
KDN185,RZN185,VZN185..SSRG *104,MEDIUM GRAY,KG2 ,KG4 ,KG8 ,KG9 ,K72 ,K73 |
8 | ||
| 52531-35010B0 |
KZN185,RZN185,VZN185..WIB MEDIUM GRAY,K73 ,K82 ,K88 ,K91 ,K93 ,K94 |
8 | ||
| 52531-35010B0 |
KDN185,RZN185,VZN185..SSRG *104,MEDIUM GRAY,KF9 ,KG2 ,KG4 ,KG8 ,KG9 ,K72 ,K73 |
8 | ||
| 52531-35010C0 |
VZN185;KDN185,RZN185..SSRG *104,BLACK,KF9 ,KG2 ,KG4 ,KG9 ,K72 ,K73 |
8 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-35020B1 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KF9 ,KG2 ,KG9 |
1 | ||
| 52541-35010B1 |
KZN185,RZN185,VZN185..WIB BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 52541-35020B0 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) SILVER ME.,KG8 ,K72 ,K73 |
1 | ||
| 52541-35020B1 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KG2 ,KG9 |
1 | ||
| 52541-35020F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) CHAMPAGNE M.M.,KG4 |
1 | ||
| 52541-35010B0 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 52741 - GARNISH, FRONT BUMPER BAR, NO.1 | ||||
| 52741-35010B3 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KG2 ,KG9 |
1 | ||
| 52741-35010B0 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) SILVER ME.,KG8 ,K72 ,K73 |
1 | ||
| 52741-35010F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) CHAMPAGNE M.M.,KG4 |
1 | ||
| 52741-35010B0 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 52741-35010B3 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KF9 ,KG2 ,KG9 |
1 | ||
| 52741-35010B1 |
KZN185,RZN185,VZN185..WIB BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 52742A - GARNISH, FRONT BUMPER BAR, NO.2 | ||||
| 52742-35010B0 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 52742-35010B1 |
KZN185,RZN185,VZN185..WIB BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 52742-35010B3 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KF9 ,KG2 ,KG9 |
1 | ||
| 52742-35010B0 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) SILVER ME.,KG8 ,K72 ,K73 |
1 | ||
| 52742-35010F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) CHAMPAGNE M.M.,KG4 |
1 | ||
| 52742-35010B3 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KG2 ,KG9 |
1 | ||
| Common parts | ||||
| 90119-10608 | ||||
| 90119-10816 | ||||
| 90179-06127 | ||||
| 90179-06206 | ||||
| 90179-08017 | ||||
| 90179-08063 | ||||
| 90179-08074 | ||||
| 90540-08018 | ||||
| 90959-01583 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 5355 | ||||
| 8102 | ||||
(9511-9807)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-35070 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 52141-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52142-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 52012-35070 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52101-35330 |
KZN185,RZN185,VZN185..WIB 塗装不要 |
1 | ||
| 52101-35350D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52101-35350B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52101-35550B1 |
VZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX SILVER ME.,K73 |
1 | ||
| 52101-35560B1 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 52101-35550B2 |
KZN185,RZN185,VZN185..WIB BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 52101-35550B1 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 52101-35560B0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),SILVER ME.,K73 |
1 | ||
| 52101-35550B3 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KG2 ,KG9 |
1 | ||
| 52101-35560F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),CHAMPAGNE M.M.,KG4 |
1 | ||
| 52101-35550B3 |
VZN185;KDN185,RZN18#..SSRG,SSRV GRAY ME.,KF9 ,KG2 ,KG9 |
1 | ||
| 52101-35560B0 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),SILVER ME.,KG8 ,K72 ,K73 |
1 | ||
| 52101-35550F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) CHAMPAGNE M.M.,KG4 |
1 | ||
| 52101-35550B1 |
VZN185;KDN185,RZN185..SSRG SILVER ME.,KG8 ,K72 ,K73 |
1 | ||
| 52101-35560B2 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),GRAY ME.,KG2 ,KG9 |
1 | ||
| 52101-35560B2 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ﾌﾟﾛﾃｸﾀ),GRAY ME.,KF9 ,KG2 ,KG9 |
1 | ||
| 52145B - BRACKET, FRONT BUMPER SIDE MOUNTING | ||||
| 52146-35040 |
KDN185,KZN185,RZN18#,VZN18# 左側 |
1 | ||
| 52145-35040 |
KDN185,KZN185,RZN18#,VZN18# 右側 |
1 | ||
| 52146-35030 |
KZN185,RZN185,VZN185 左側 |
1 | ||
| 52145-35030 |
KZN185,RZN185,VZN185 右側 |
1 | ||
| Common parts | ||||
| 90119-10560 | ||||
| 90179-06127 | ||||
| 90179-06269 | ||||
| 90179-08017 | ||||
| 90179-08063 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 5355 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
