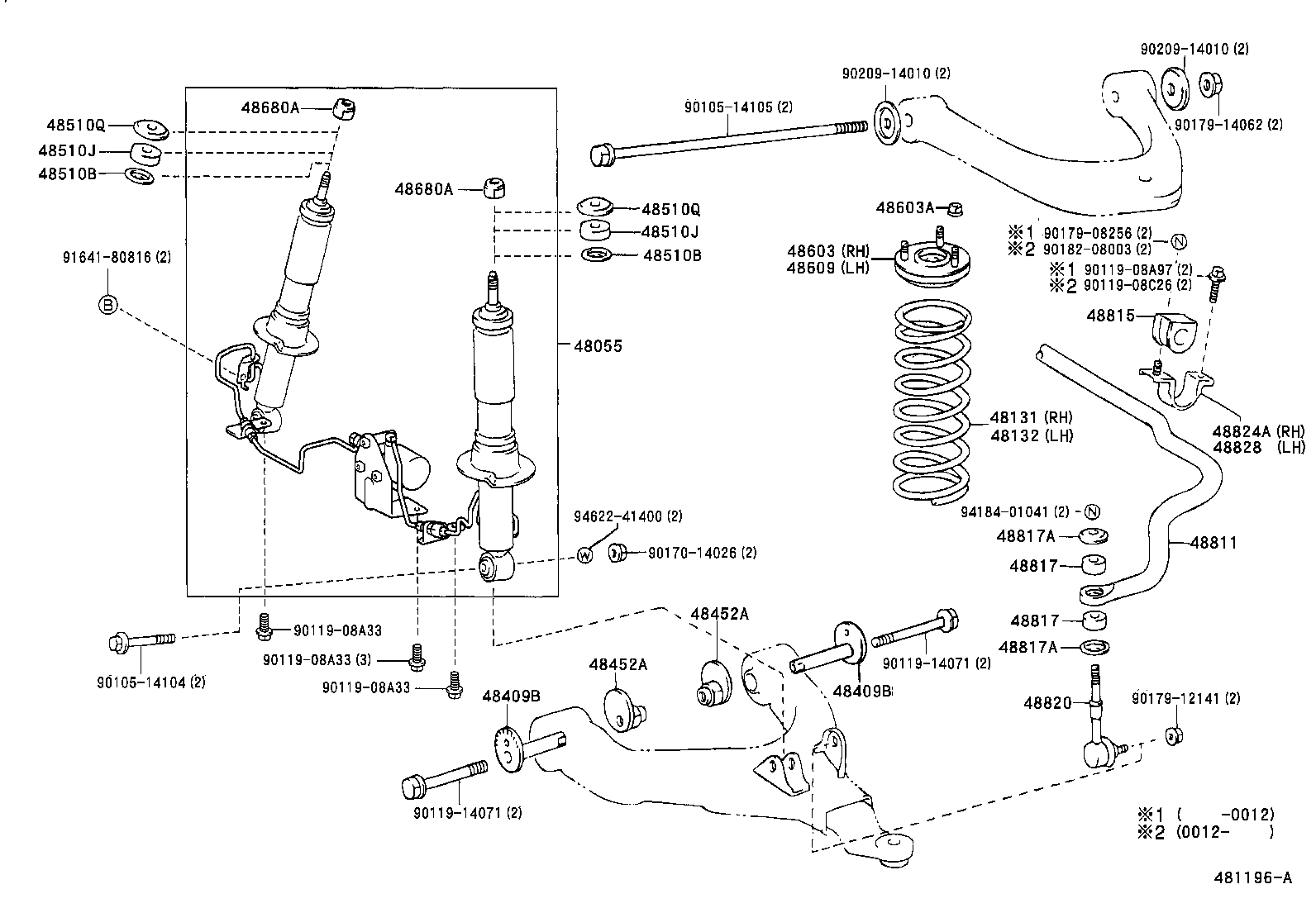

VZN185W-GAPGK (1995)
Toyota Hilux Surf
(9511-9607)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-35210 |
VZN185;KZN185..5F..(SSRG,SSRV);KZN185..4FC..(SSRV,SSRX) |
1 | ||
| 48131-35250 |
RZN185,VZN185 長さ=337.5 |
1 | ||
| 48131-35260 |
VZN185 長さ=340.5 |
1 | ||
| 48131-35210 |
VZN185;KZN185..5F..SSRG;KZN185..NOB..SSRX;KZN185..4FC..SSRV |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-35210 |
VZN185;KZN185..SSR,SSRX;KZN185..5F..SSRV |
1 | ||
| 48131-35210 |
VZN185;KZN185..4FC..SSRX;KZN185..5F..(SSR,SSRV) |
1 | ||
| 48131-35370 |
VZN185 長さ=345.0 |
1 | ||
| 48131-35260 |
RZN185,VZN185 長さ=340.5 |
1 | ||
| 48409B - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST | ||||
| 48409-35050 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48409B - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST | ||||
| 48409-35050 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48452A - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-35020 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48452A - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-35020 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-39725 |
KZN185,VZN185..SSRG ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D140 |
1 | ||
| 48510-39415 |
KZN185,VZN185..SSRG ﾏｰｸ 48511−3D030 |
1 | ||
| 48510-39725 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D140 |
1 | ||
| 48510-39775 |
KZN185,RZN18#,VZN18#..SPR,SSR,SSRX ﾏｰｸ 48510−35160 |
1 | ||
| 48510-39416 |
KZN185,VZN185..SSRG ﾏｰｸ 48511−3D030 |
1 | ||
| 48510-39715 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX ﾏｰｸ 48510−35140 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02159 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90389-14048 |
KZN185,RZN18#,VZN18# |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01056 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02161 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48519 - BRACKET, ACTUATOR SUPPORT, FRONT | ||||
| 48519-35050 |
KZN185,RZN185,VZN185..SSRG |
2 | ||
| 48519-35050 |
KZN185,RZN185,VZN185..SSRG,SSRX |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-39415 |
KZN185,VZN185..SSRG ﾏｰｸ 48511−3D030 |
1 | ||
| 48510-39715 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX ﾏｰｸ 48510−35140 |
1 | ||
| 48510-39775 |
KZN185,RZN18#,VZN18#..SPR,SSR,SSRX ﾏｰｸ 48510−35160 |
1 | ||
| 48510-39725 |
KZN185,VZN185..SSRG ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D140 |
1 | ||
| 48510-39416 |
KZN185,VZN185..SSRG ﾏｰｸ 48511−3D030 |
1 | ||
| 48510-39725 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D140 |
1 | ||
| 48539B - BRACKET, ACTUATOR SUPPORT, FRONT | ||||
| 48518-35050 |
KZN185,RZN185,VZN185..SSRG |
2 | ||
| 48518-35050 |
KZN185,RZN185,VZN185..SSRG,SSRX |
2 | ||
| 48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-30020 |
KZN185,RZN185,VZN185..SSRG |
1 | ||
| 48559-30020 |
KZN185,RZN185,VZN185..SSRG,SSRX |
1 | ||
| 48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-30020 |
KZN185,RZN185,VZN185..SSRG |
1 | ||
| 48559-30020 |
KZN185,RZN185,VZN185..SSRG,SSRX |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10212 |
KDN185,KZN185,RZN18#,VZN18# |
6 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94184-01241 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-35400 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-35100 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02131 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02131 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-35030 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-35120 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48824-35150 |
KDN185,RZN18#,VZN185 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48829-35090 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48829-35120 |
KDN185,RZN18#,VZN185 |
1 | ||
| Common parts | ||||
| 90105-14104 | ||||
| 90105-14105 | ||||
| 90119-08A97 | ||||
| 90119-08C26 | ||||
| 90119-14071 | ||||
| 90170-14026 | ||||
| 90179-08256 | ||||
| 90179-12141 | ||||
| 90179-14062 | ||||
| 90182-08003 | ||||
| 90209-14010 | ||||
| 94184-01041 | ||||
| 94622-41400 | ||||
(9607-0008) ; (0008- )SPR,SSRV,SSRX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-35210 |
VZN185;KZN185..5F..(SSRG,SSRV);KZN185..4FC..(SSRV,SSRX) |
1 | ||
| 48131-35250 |
RZN185,VZN185 長さ=337.5 |
1 | ||
| 48131-35260 |
VZN185 長さ=340.5 |
1 | ||
| 48131-35210 |
VZN185;KZN185..5F..SSRG;KZN185..NOB..SSRX;KZN185..4FC..SSRV |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-35210 |
VZN185;KZN185..SSR,SSRX;KZN185..5F..SSRV |
1 | ||
| 48131-35210 |
VZN185;KZN185..4FC..SSRX;KZN185..5F..(SSR,SSRV) |
1 | ||
| 48131-35370 |
VZN185 長さ=345.0 |
1 | ||
| 48131-35260 |
RZN185,VZN185 長さ=340.5 |
1 | ||
| 48409B - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST | ||||
| 48409-35050 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48409B - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST | ||||
| 48409-35050 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48452A - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-35020 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48452A - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-35020 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-39725 |
KZN185,VZN185..SSRG ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D140 |
1 | ||
| 48510-39415 |
KZN185,VZN185..SSRG ﾏｰｸ 48511−3D030 |
1 | ||
| 48510-39725 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D140 |
1 | ||
| 48510-39775 |
KZN185,RZN18#,VZN18#..SPR,SSR,SSRX ﾏｰｸ 48510−35160 |
1 | ||
| 48510-39416 |
KZN185,VZN185..SSRG ﾏｰｸ 48511−3D030 |
1 | ||
| 48510-39715 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX ﾏｰｸ 48510−35140 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02159 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90389-14048 |
KZN185,RZN18#,VZN18# |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01056 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02161 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48519 - BRACKET, ACTUATOR SUPPORT, FRONT | ||||
| 48519-35050 |
KZN185,RZN185,VZN185..SSRG |
2 | ||
| 48519-35050 |
KZN185,RZN185,VZN185..SSRG,SSRX |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-39415 |
KZN185,VZN185..SSRG ﾏｰｸ 48511−3D030 |
1 | ||
| 48510-39715 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX ﾏｰｸ 48510−35140 |
1 | ||
| 48510-39775 |
KZN185,RZN18#,VZN18#..SPR,SSR,SSRX ﾏｰｸ 48510−35160 |
1 | ||
| 48510-39725 |
KZN185,VZN185..SSRG ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D140 |
1 | ||
| 48510-39416 |
KZN185,VZN185..SSRG ﾏｰｸ 48511−3D030 |
1 | ||
| 48510-39725 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D140 |
1 | ||
| 48539B - BRACKET, ACTUATOR SUPPORT, FRONT | ||||
| 48518-35050 |
KZN185,RZN185,VZN185..SSRG |
2 | ||
| 48518-35050 |
KZN185,RZN185,VZN185..SSRG,SSRX |
2 | ||
| 48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-30020 |
KZN185,RZN185,VZN185..SSRG |
1 | ||
| 48559-30020 |
KZN185,RZN185,VZN185..SSRG,SSRX |
1 | ||
| 48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-30020 |
KZN185,RZN185,VZN185..SSRG |
1 | ||
| 48559-30020 |
KZN185,RZN185,VZN185..SSRG,SSRX |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10212 |
KDN185,KZN185,RZN18#,VZN18# |
6 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94184-01241 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-35400 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-35100 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02131 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02131 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-35030 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-35120 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48824-35150 |
KDN185,RZN18#,VZN185 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48829-35090 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48829-35120 |
KDN185,RZN18#,VZN185 |
1 | ||
| Common parts | ||||
| 90105-14104 | ||||
| 90105-14105 | ||||
| 90119-08A97 | ||||
| 90119-08C26 | ||||
| 90119-14071 | ||||
| 90170-14026 | ||||
| 90179-08256 | ||||
| 90179-12141 | ||||
| 90179-14062 | ||||
| 90182-08003 | ||||
| 90209-14010 | ||||
| 94184-01041 | ||||
| 94622-41400 | ||||
(0008- )SSRG
REAS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48055 - ABSORBER SET, FRONT | ||||
| 48055-39025 |
VZN185..SSRG |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-35210 |
VZN185;KZN185..5F..(SSRG,SSRV);KZN185..4FC..(SSRV,SSRX) |
1 | ||
| 48131-35250 |
RZN185,VZN185 長さ=337.5 |
1 | ||
| 48131-35260 |
VZN185 長さ=340.5 |
1 | ||
| 48131-35210 |
VZN185;KZN185..5F..SSRG;KZN185..NOB..SSRX;KZN185..4FC..SSRV |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-35210 |
VZN185;KZN185..SSR,SSRX;KZN185..5F..SSRV |
1 | ||
| 48131-35210 |
VZN185;KZN185..4FC..SSRX;KZN185..5F..(SSR,SSRV) |
1 | ||
| 48131-35370 |
VZN185 長さ=345.0 |
1 | ||
| 48131-35260 |
RZN185,VZN185 長さ=340.5 |
1 | ||
| 48409B - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST | ||||
| 48409-35050 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48409B - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST | ||||
| 48409-35050 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48452A - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-35020 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48452A - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-35020 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02159 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02159 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01056 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01056 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02161 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02161 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10212 |
KDN185,KZN185,RZN18#,VZN18# |
6 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94184-01241 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94184-01241 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-35400 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-35100 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02131 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02131 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-35030 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-35120 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48824-35150 |
KDN185,RZN18#,VZN185 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48829-35090 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48829-35120 |
KDN185,RZN18#,VZN185 |
1 | ||
| Common parts | ||||
| 90105-14104 | ||||
| 90105-14105 | ||||
| 90119-08A33 | ||||
| 90119-08A97 | ||||
| 90119-08C26 | ||||
| 90119-14071 | ||||
| 90170-14026 | ||||
| 90179-08256 | ||||
| 90179-12141 | ||||
| 90179-14062 | ||||
| 90182-08003 | ||||
| 90209-14010 | ||||
| 91641-80816 | ||||
| 94184-01041 | ||||
| 94622-41400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
