VZN185W-GAPGK (1995)
Toyota Hilux Surf
Production
Nov 1995
-
Nov 2002
Engine
5VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9511- )VZN18#

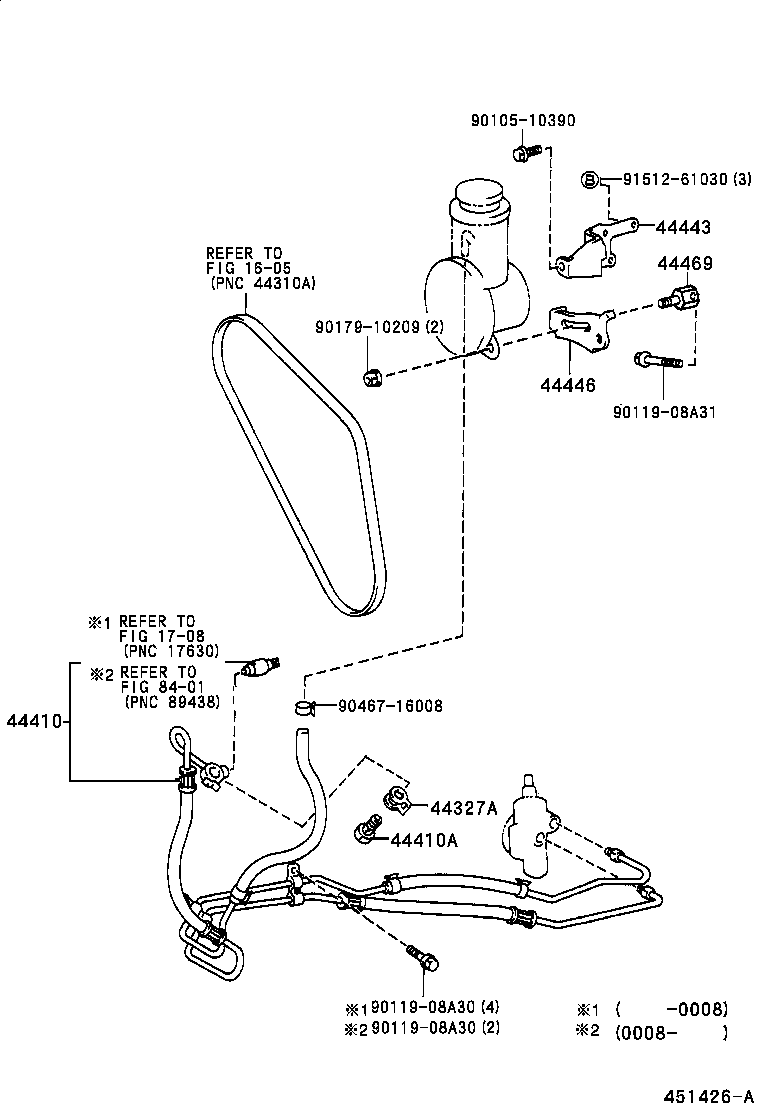

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-26020 |
RZN18#,VZN18# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-35420 |
VZN18# |
1 | ||
| 44410-60420 |
VZN185 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16034 |
RZN18#,VZN18# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-34030 |
VZN18# |
1 | ||
| 44443-35030 |
VZN18# |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-35010 |
VZN18# |
1 | ||
| 44469 - SLIDER, POWER STEERING BELT ADJUSTING | ||||
| 44469-35010 |
VZN18# |
1 | ||
| Common parts | ||||
| 90105-10390 | ||||
| 90119-08A30 | ||||
| 90119-08A31 | ||||
| 90179-10209 | ||||
| 90467-16008 | ||||
| 91512-61030 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1708 | ||||
| 8401 | ||||
