VZN185W-GAPGK (1995)
Toyota Hilux Surf
(9511- )VZN185

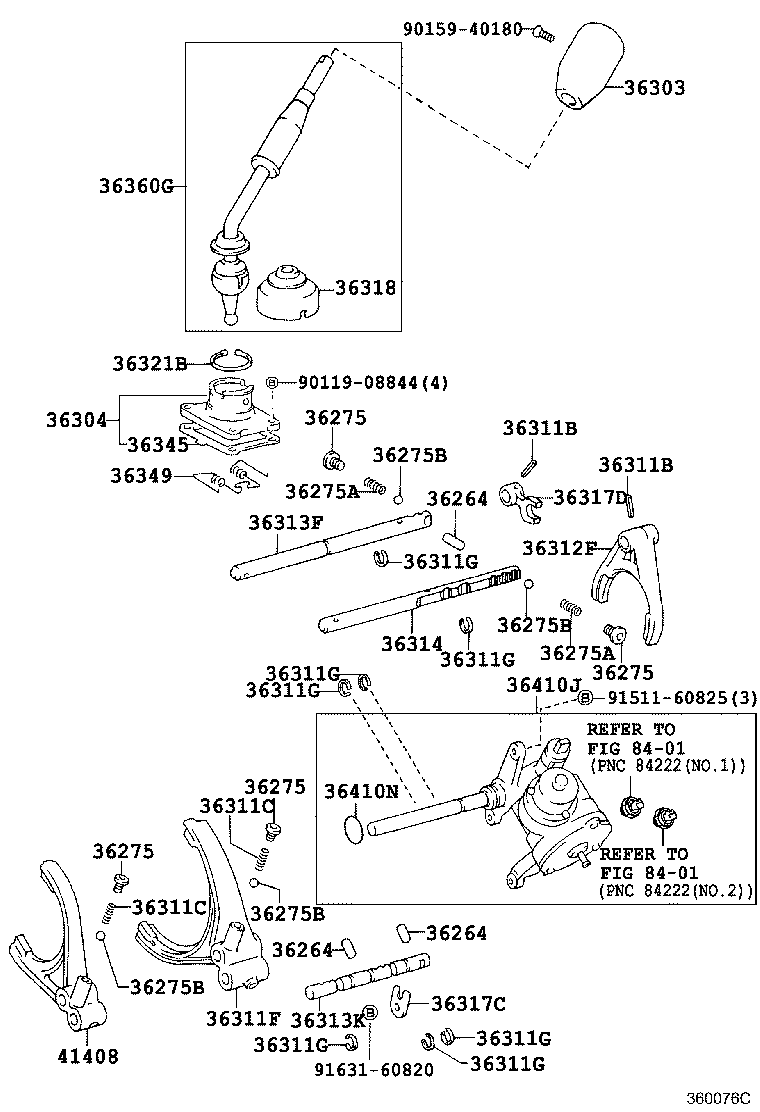

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-06007 |
KZN185,RZN185,VZN185..WIB 長さ=8.6,外径=6 |
2 | ||
| 90250-10020 |
KZN185,VZN185..WIB 長さ=25.7,外径=9.53 |
1 | ||
| 90250-10020 |
KZN185,RZN185,VZN185..WIB 長さ=25.7,外径=9.53 |
1 | ||
| 90250-06007 |
KDN185,KZN185,RZN185,VZN185 長さ=8.6,外径=6 |
2 | ||
| 90250-06007 |
KZN185,VZN185..WIB 長さ=8.6,外径=6 |
2 | ||
| 90250-10020 |
KDN185,KZN185,RZN185,VZN185 長さ=25.7,外径=9.53 |
1 | ||
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-06007 |
KZN185,RZN185,VZN185..WIB 長さ=8.6,外径=6 |
2 | ||
| 90250-10020 |
KZN185,VZN185..WIB 長さ=25.7,外径=9.53 |
1 | ||
| 90250-10020 |
KZN185,RZN185,VZN185..WIB 長さ=25.7,外径=9.53 |
1 | ||
| 90250-06007 |
KDN185,KZN185,RZN185,VZN185 長さ=8.6,外径=6 |
2 | ||
| 90250-06007 |
KZN185,VZN185..WIB 長さ=8.6,外径=6 |
2 | ||
| 90250-10020 |
KDN185,KZN185,RZN185,VZN185 長さ=25.7,外径=9.53 |
1 | ||
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-06007 |
KZN185,RZN185,VZN185..WIB 長さ=8.6,外径=6 |
2 | ||
| 90250-10020 |
KZN185,VZN185..WIB 長さ=25.7,外径=9.53 |
1 | ||
| 90250-10020 |
KZN185,RZN185,VZN185..WIB 長さ=25.7,外径=9.53 |
1 | ||
| 90250-06007 |
KDN185,KZN185,RZN185,VZN185 長さ=8.6,外径=6 |
2 | ||
| 90250-06007 |
KZN185,VZN185..WIB 長さ=8.6,外径=6 |
2 | ||
| 90250-10020 |
KDN185,KZN185,RZN185,VZN185 長さ=25.7,外径=9.53 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 |
4 | ||
| 90341-12014 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
4 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 |
4 | ||
| 90341-12014 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
4 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 |
4 | ||
| 90341-12014 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
4 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 |
4 | ||
| 90341-12014 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
4 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI 長さ=23 |
2 | ||
| 90501-16116 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 長さ=23 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI 長さ=23 |
2 | ||
| 90501-16116 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 長さ=23 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 外径=9.52,ｽﾁｰﾙ |
4 | ||
| 90360-10003 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI 外径=9.52,ｽﾁｰﾙ |
4 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 外径=9.52,ｽﾁｰﾙ |
4 | ||
| 90360-10003 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI 外径=9.52,ｽﾁｰﾙ |
4 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 外径=9.52,ｽﾁｰﾙ |
4 | ||
| 90360-10003 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI 外径=9.52,ｽﾁｰﾙ |
4 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 外径=9.52,ｽﾁｰﾙ |
4 | ||
| 90360-10003 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI 外径=9.52,ｽﾁｰﾙ |
4 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-35180C0 |
KZN185,VZN185..EFI,TDI;KZN185..WIB..(SSRV,SSRX) ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD),BLACK,TRIM1# |
1 | ||
| 36303-35180C0 |
KZN185..WIB..SSRX..TDE;KZN185,VZN185..SSRG,SSRV;RZN185..WIB..(SSRV,SSRX) ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD),BLACK,TRIM1#,4# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-35060 |
VZN185;RZN185..5F |
1 | ||
| 36304-35061 |
VZN185;RZN185..5F |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
RZN185,VZN185;KZN185..(SSR,SSRV,SSRX)..TDE 長さ=22 |
2 | ||
| 90254-05001 |
VZN185;RZN185..5F 長さ=22 |
2 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
RZN185,VZN185;KZN185..(SSR,SSRV,SSRX)..TDE 長さ=22 |
2 | ||
| 90254-05001 |
VZN185;RZN185..5F 長さ=22 |
2 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-18091 |
KZN185,RZN185,VZN185..WIB |
2 | ||
| 90501-18091 |
KZN185,VZN185..WIB |
2 | ||
| 90501-18091 |
KDN185,KZN185,RZN185,VZN185 |
2 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-18091 |
KZN185,RZN185,VZN185..WIB |
2 | ||
| 90501-18091 |
KZN185,VZN185..WIB |
2 | ||
| 90501-18091 |
KDN185,KZN185,RZN185,VZN185 |
2 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-35060 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
1 | ||
| 36311-35060 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
7 | ||
| 90520-13002 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 |
7 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
7 | ||
| 90520-13002 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 |
7 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
7 | ||
| 90520-13002 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 |
7 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
7 | ||
| 90520-13002 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 |
7 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
7 | ||
| 90520-13002 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 |
7 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
7 | ||
| 90520-13002 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 |
7 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
7 | ||
| 90520-13002 |
RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185 |
7 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35040 |
KDN185,KZN185,RZN185,VZN185 |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-35100 |
VZN185 |
1 | ||
| 36313-35100 |
VZN185;RZN185..5F |
1 | ||
| 36313-35100 |
VZN185;RZN185..WIB..5F |
1 | ||
| 36313K - SHAFT, TRANSFER GEAR SHIFT FORK | ||||
| 36313-35090 |
KDN185,KZN185,RZN185,VZN185 |
1 | ||
| 36313-35091 |
KDN185,RZN185,VZN185 |
1 | ||
| 36313-35090 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 36313-35090 |
KZN185,VZN185..WIB |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-35170 |
VZN185 |
1 | ||
| 36314-35170 |
VZN185;RZN185..SSR |
1 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35041 |
KDN185,KZN185,RZN185,VZN185 |
1 | ||
| 36317-35041 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 36317-35041 |
KZN185,VZN185..WIB |
1 | ||
| 36317-35040 |
KZN185,VZN185..WIB |
1 | ||
| 36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT | ||||
| 36317-35050 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 36317-35050 |
KDN185,KZN185,RZN185,VZN185 |
1 | ||
| 36317-35050 |
KZN185,VZN185..WIB |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
KDN185,KZN185,RZN185,VZN185 |
1 | ||
| 33555-35090 |
RZN185;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
KDN185,KZN185,RZN185,VZN185 |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35050 |
VZN185;RZN185..5F |
1 | ||
| 36345-35050 |
VZN185;RZN185..5F |
1 | ||
| 36345-35050 |
VZN185;RZN185..5F |
1 | ||
| 36349 - SPRING, TRANSFER SELECT RETURN | ||||
| 36349-35010 |
VZN185 |
1 | ||
| 36349-35010 |
VZN185;RZN185..WIB..5F |
1 | ||
| 36349-35010 |
VZN185;RZN185..5F |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-35270 |
KZN185,VZN185..4FC..SSRG |
1 | ||
| 36360-35272 |
KDN185,KZN185,VZN185..4FC |
1 | ||
| 36410J - ACTUATOR ASSY, TRANSFER SHIFT | ||||
| 36410-35051 |
VZN185;KZN185..SSRG;KZN185..SSRX..TDI |
1 | ||
| 36410-34022 |
KDN185,RZN185,VZN185 |
1 | ||
| 36410-34021 |
KDN185,RZN185,VZN185 |
1 | ||
| 36410-35051 |
RZN185..NOB;RZN185..SSRG;KZN185,VZN185 |
1 | ||
| 36410N - RING, O (FOR TRANSFER SHIFT ACTUATOR) | ||||
| 96711-19025 |
KZN185,RZN185,VZN185 |
1 | ||
| 96711-19025 |
RZN185,VZN185 |
1 | ||
| 41408 - FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK | ||||
| 41408-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 41408-35010 |
KDN185,KZN185,RZN185,VZN185 |
1 | ||
| 41408-35010 |
KZN185,VZN185..WIB |
1 | ||
| Common parts | ||||
| 90119-08844 | ||||
| 90159-40180 | ||||
| 91511-60825 | ||||
| 91631-60820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
